Suzuki DF70A - Clamp; Swivel; Steering Brackets Components

Housing and Bracket: 2A-17
6) Apply engine oil to outer circumference of bearing
(1). Install bearing into engine holder.
7) Reassemble the engine holder. Refer to “Engine
Holder / Oil Pan / Driveshaft Housing / Mounts
Assembly” (Page 2A-9).

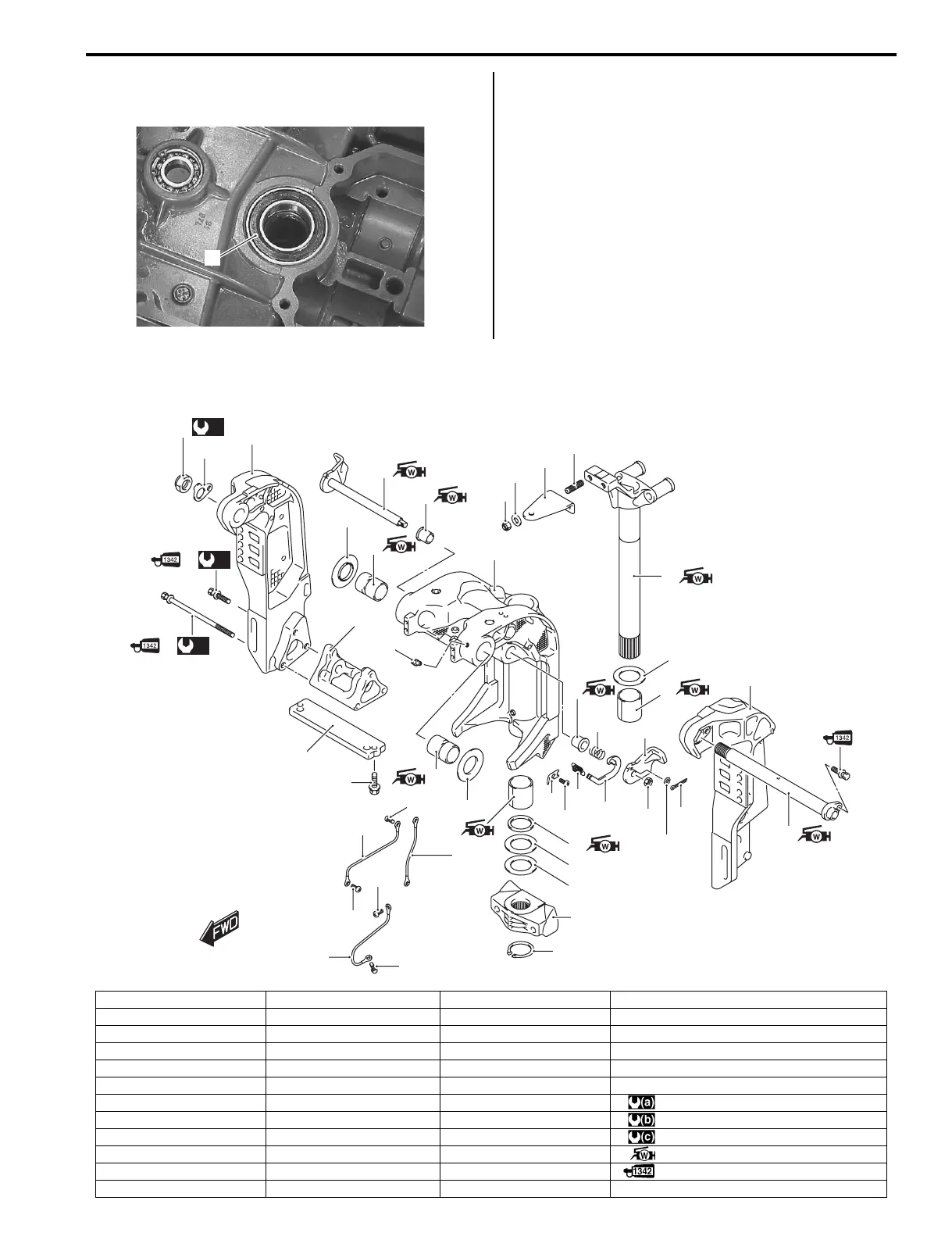

Clamp / Swivel / Steering Brackets Components
Z9J0112106010
1
I9J011210080-03
(a)
6
(b)
8
(c)
9
5
1
24
14
13
25
10
7
15
12
42
41
40
39
17
16
18
18
19
20
21
34
33
32
31
25
26
27
30
28
29
22
23
13
14
11
36
38
35
38
38
37
38
2
3
4
I9J011210006-03
1. Clamp bracket STBD 13. Bush 25. Bush 37. Bonding wire
2. Clamp bracket PORT 14. Washer 26. Spring 38. Screw
3. Clamp bracket shaft 15. Grease nipple 27. Tilt lock lever PORT 39. Bolt
4. Bolt 16. Steering bracket 28. Pin 40. Steering bracket attachment
5. Washer 17. Washer 29. Washer 41. Washer
6. Nut 18. Bush 30. Nut 42. Nut
7. Lower clamp bracket 19. Seal 31. Tilt lock lever link : 43 N⋅m (4.3 kgf-m, 31.0 lbf-ft)
8. Bolt 20. Washer 32. Spring : 50 N⋅m (5.0 kgf-m, 36.0 lbf-ft)
9. Bolt 21. Shim 33. Screw : 50 N⋅m (5.0 kgf-m, 36.0 lbf-ft)
10. Anode 22. Lower mount bracket 34. Bracket : Apply SUZUKI water resistance grease.
11. Bolt 23. Circlip 35. Bonding wire : Apply SUZUKI thread lock 1342.
12. Swivel bracket 24. Tilt lock lever 36. Bonding wire
