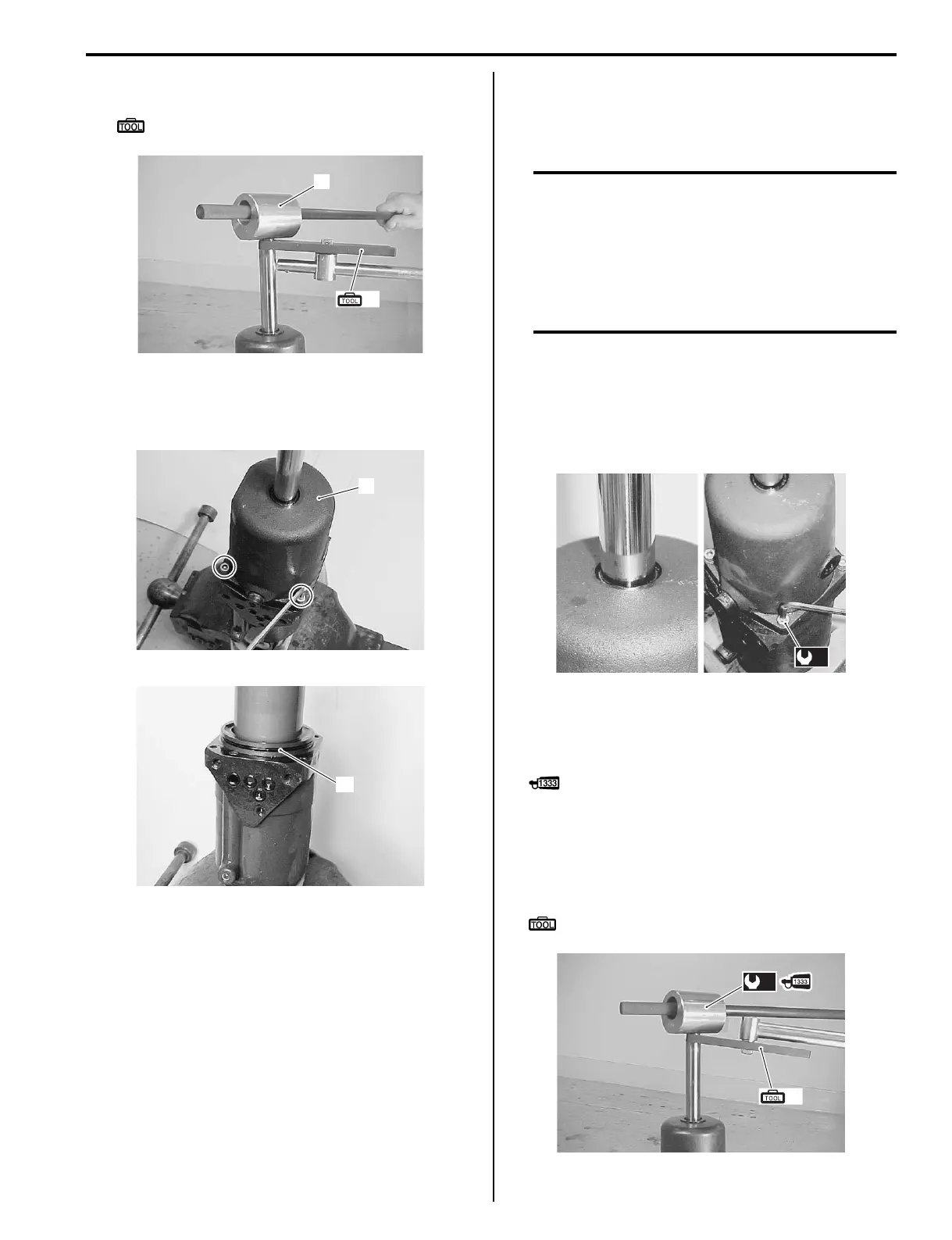

Suzuki DF70A - Power Trim and Tilt Unit Reassembly

Power Trim and Tilt: 2B-19
7) Using special tool, unscrew the upper eye (8).
Special tool
(B): 09945–69010 (PTT rod holder)
8) Remove the four bolts securing the reservoir (9),
then detach the reservoir from the PTT body.
9) Remove the O-ring (10).
Power Trim and Tilt Unit Reassembly
Z9J0112206007
Assembly is reverse order of disassembly with special
attention to following steps.
CAUTION
• Do not reuse O-rings and seals once
removed.
Always use new parts.
• Lubricate all components and O-rings with
PTT fluid before assembly.
• Do not reuse PTT fluid, always refill with
new fluid.
Reservoir
• Apply PTT fluid to reservoir seal, then install reservoir.
• Tighten four bolts securely.
Tightening torque
Reservoir bolt (a): 5.0 N·m (0.5 kgf-m, 3.6 lbf-ft)
Upper Eye
• Apply thread lock super 1333B to threads of upper
eye before threading it onto tilt rod.
: Thread lock cement 99000–32020 (SUZUKI
Thread Lock Super 1333B (50 g))
• Tighten upper eye to specified torque.
Tightening torque
Upper eye (a): 108 N·m (10.8 kgf-m, 78.0 lbf-ft)
Special tool
(A): 09945–69010 (PTT rod holder)
8
(B)
I9J011220016-01
9
I9J011220015-01
10
I9J011220017-01
(a)
I9J011220018-01
(A)
(a)
I9J011220019-01
