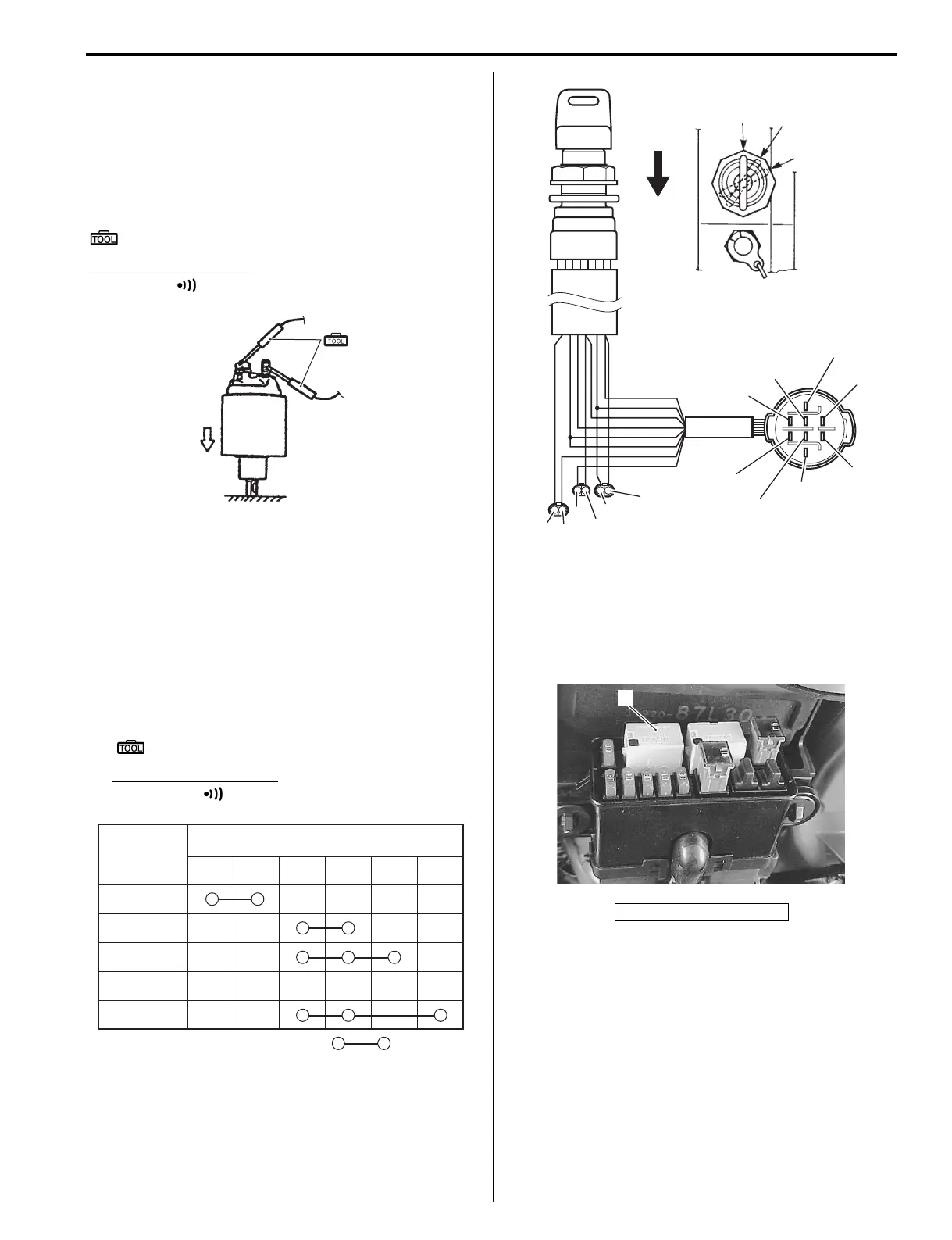

Starting System: 1I-13
Contact points test
Put the plunger on the under side and then push the
magnetic switch down.
At this time, check for continuity between terminal “B”
and terminal “M”.
Continuity indicates proper condition. If no continuity
exists, replace the magnetic switch and/or plunger.
Special tool
(A): 09930–99320 (Digital tester)
Tester knob indication
Continuity ( )
Ignition Switch Inspection
Z9J0111906006
Inspect the ignition switch using the following
procedures:
1) Disconnect the ignition switch from remo-con box
wiring harness.
2) Check continuity between wiring leads at the key
positions shown in the chart.
3) If out of specification, replace the ignition switch.
Special tool
: 09930–99320 (Digital tester)
Tester knob indication
Continuity ( )
Starter Motor Relay Inspection
Z9J0111906007
Inspect the starter motor relay using the following
procedures:
1) Disconnect the starter motor relay from the fuse box.
(A)
I9J011190040-01
Switch Lead Wires
OFF
Key position
ON
FREE
PUSH
BGWGrBrO
: Continuity
START
I9J011190041-03
1. Starter motor relay
(OFF)
(ON)
(START)
FREE
PUSH
B
G
W
Gr
Br
O
W/R
Bl
Br
Gr
Br
B
G
Bl
I9J011190042-02
1
I9J011190059-02
