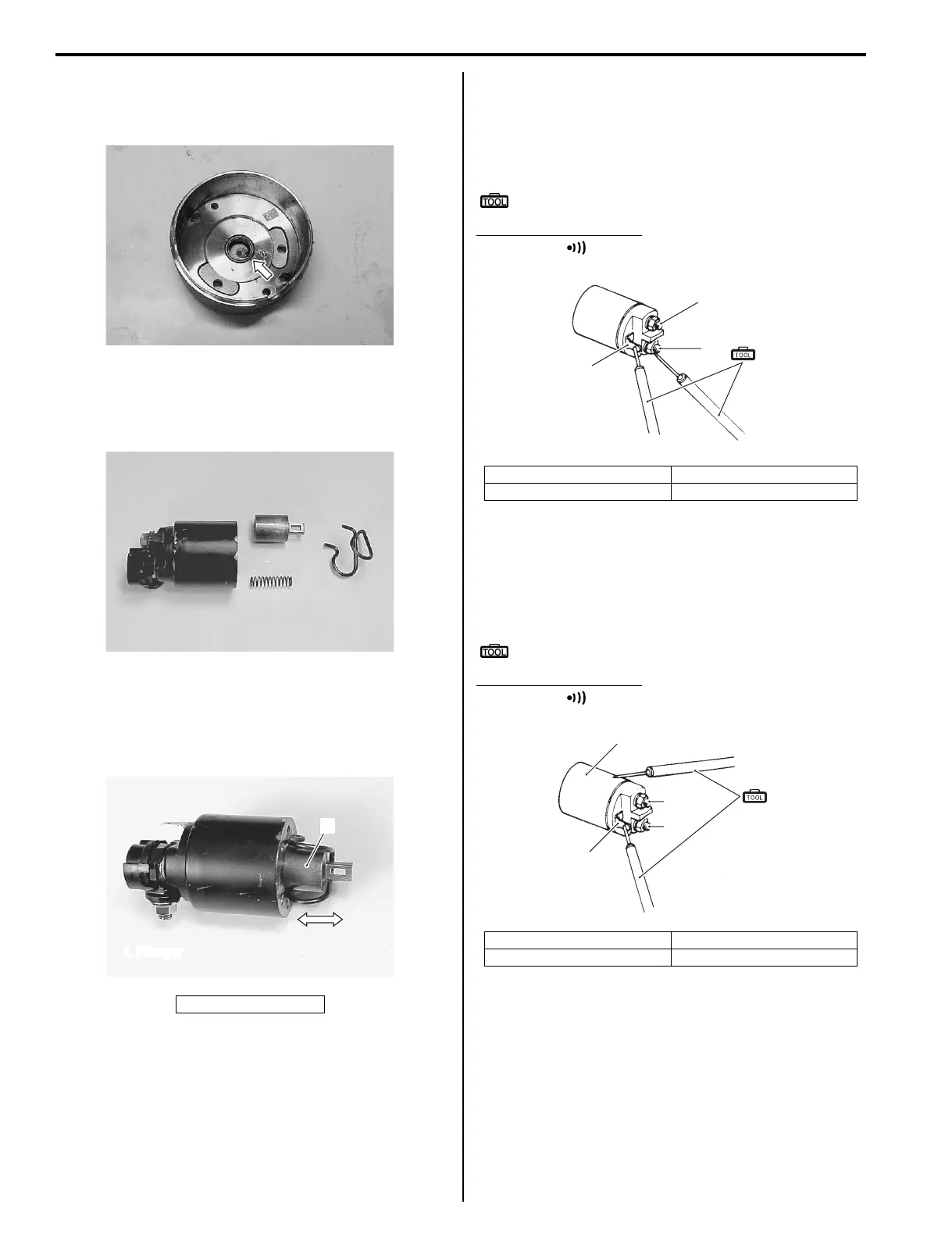

1I-12 Starting System:
Armature Shaft Bush
Inspect the bushing for wear or other damage.
Replace if necessary.
Plunger
Inspect the plunger for wear or other damage.
Replace if necessary.
Magnetic Switch
Push in the plunger and release. The plunger should
return quickly to its original position.
Replace if necessary.
Pull-in coil open circuit test
Check for continuity across the magnetic switch “S”
terminal (1) and “M” terminal (2).
If no continuity exists, the coil is open and should be
replaced.
Special tool
(A): 09930–99320 (Digital tester)
Tester knob indication
Continuity ( )
Hold-in coil open circuit test
Check for continuity across the magnetic switch “S”
terminal (1) and coil case (4).
If no continuity exists, the coil is open and should be
replaced.
Special tool
(A): 09930–99320 (Digital tester)
Tester knob indication
Continuity ( )
1. Plunger
I9J011190035-01
I9J011190036-01
1
I9J011190037-01
1. Terminal “S” 3. Terminal “B”
2. Terminal “M”
1. Terminal “S” 3. Terminal “B”
2. Terminal “M” 4. Coil case
(A)
1
3
2
I9J011190038-02
3
2
1
4
(A)
I9J011190039-01
