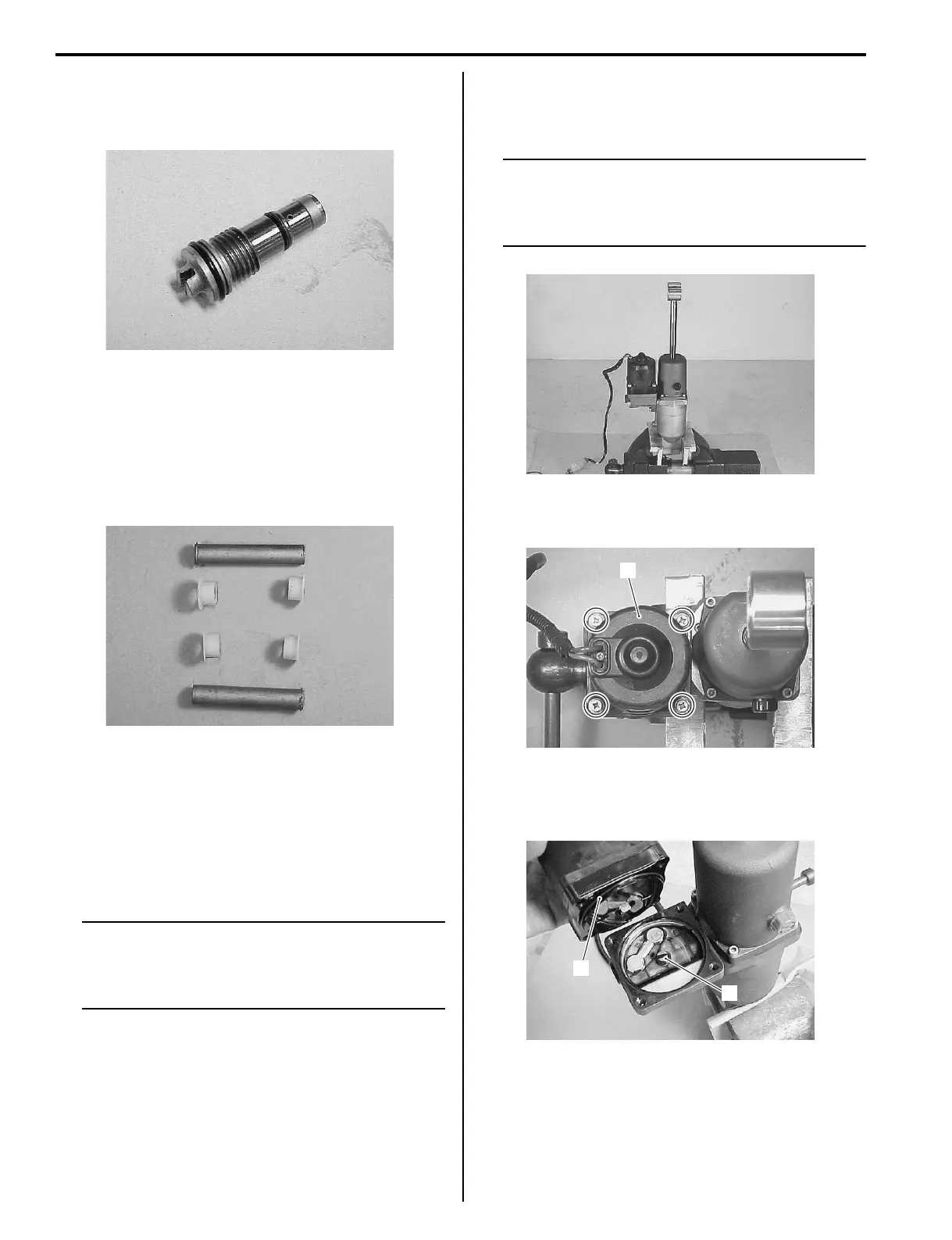

2B-22 Power Trim and Tilt:
• Inspect manual release valve for damage. Replace if
necessary.
• Inspect O-rings for cuts, nicks or tears.
• Inspect lower shaft and upper shaft for bends, twists
or other damage. Replace if necessary.
• Inspect all bushings for excessive wear or other
damage. Replace if necessary.
If bushing fit is loose when installing, replace bushing.
• Inspect upper and lower shaft for bent, twist or other
damage. Replace if necessary.
Power Trim and Tilt Motor Removal and
Installation
Z9J0112206009
Removal
1) Remove Power Trim and Tilt unit.
Refer to “Power Trim and Tilt Unit Removal and
Installation” (Page 2B-13).
NOTE
Before removing PTT motor, wash the PTT
body with a stiff bristle brush and hot, soapy
water to remove sand or dirt. Dry the PTT
body with compressed air.
2) Place the lower section of the PTT unit in a vise.
Tighten the vise only enough to secure the PTT unit,
DO NOT OVER TIGHTEN.
NOTE
To prevent damage to the PTT cylinder use
wood blocks, vise jaw protectors, etc.,
between the vise jaws and PTT components
before tightening vise.
3) Remove the four screws securing the PTT motor (1)
to the PTT pump assembly.
4) Detach the PTT motor from PTT pump assembly.
Note the position of drive joint (2) and O-ring (3) and
remove them.
I9J011220028-01
I9J011220082-01
I9J011220029-02
1
I9J011220030-02
2
3
I9J011220031-01
