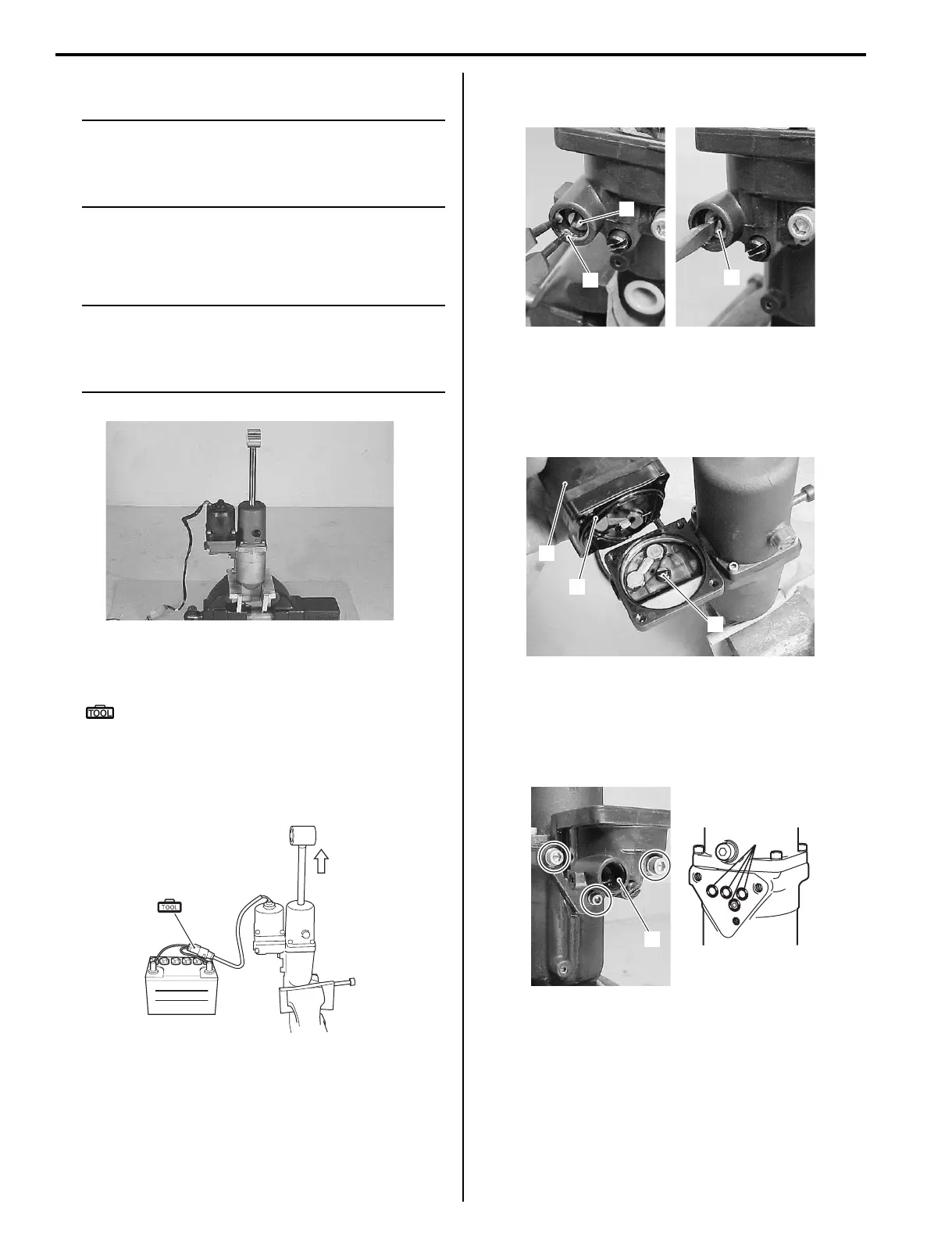

2B-18 Power Trim and Tilt:
Power Trim and Tilt Unit Disassembly
Z9J0112206006
NOTE
Before disassembly, wash the PTT body with
a stiff bristle brush and hot, soapy water to
remove sand or dirt. Dry the PTT body with
compressed air.
1) Place the lower section of the PTT unit in a vise.
Tighten the vise only enough to secure the PTT unit,
DO NOT OVER TIGHTEN.
NOTE
To prevent damage to the PTT cylinder use
wood blocks, vise jaw protectors, etc.,
between the vise jaws and PTT components
before tightening vise.
2) Connect the PTT cable extension to PTT motor
cable connector.
Special tool
(A): 09945–79310 (PTT cable extension)
3) Connect the PTT cable extension leads (G, Bl) to
battery and operate PTT motor until tilt rod is at
maximum stroke (full-tilt up position). Unscrew the
filler plug and drain PTT oil into a suitable container.
4) Remove the manual release valve snap ring (1),
then unscrew the manual release valve (2).
5) Remove the PTT motor assembly (3).
Refer to “Power Trim and Tilt Motor Removal and
Installation” (Page 2B-22).
Note the position of drive joint (4) and O-ring (5),
before removing them.
6) Remove the three screws securing the PTT pump
assembly (6), then detach the PTT pump assembly
from PTT cylinder body.
Note the position of O-rings (7), before removing
them.
I9J011220010-02
(A)
I9J011220011-01
2
2
1
I9J011220012-01
3
5
4
I9J011220013-01
6
7
I9J011220014-01
