Suzuki DF70A - Emergency Stop Switch Inspection

Starting System: 1I-15

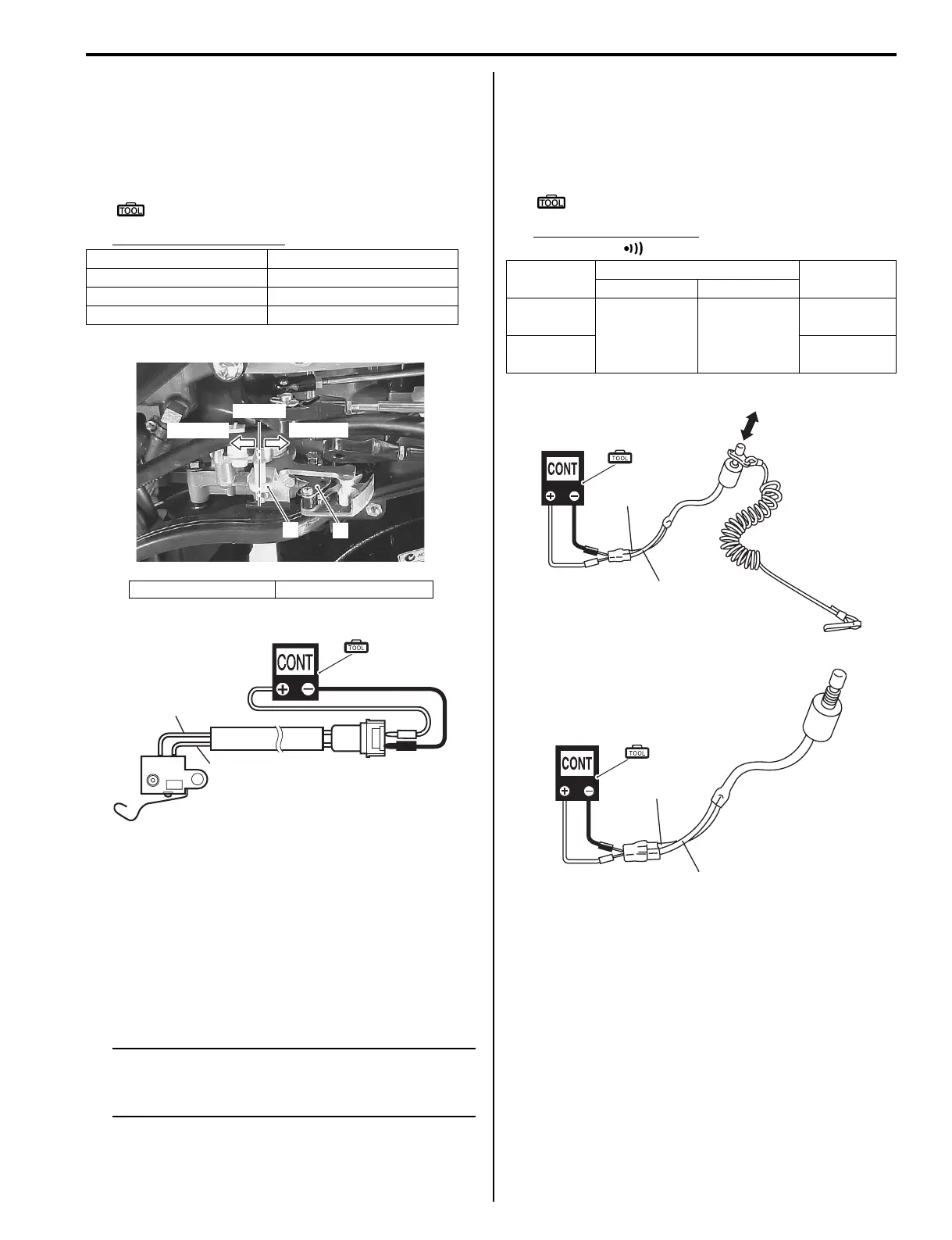

Neutral switch on engine side
1) Disconnect the neutral switch lead wire connector.
2) Check continuity / infinity between the Yellow / Green
and Brown lead wires while operating the remo-con
handle.
Special tool
(A): 09930–99320 (Digital tester)
Neutral switch function
3) If out of specification:
•1st:
Check the remo-con cable adjustment, readjust if
necessary.
• 2nd:
Check the wire harnesses for open and short
circuits.
If the wire harnesses are in good condition,
replace the neutral switch and recheck.
NOTE
After installing the neutral switch, check for
correct function by operating the remo-con
handle.
Emergency Stop Switch Inspection
Z9J0111906009
1) Disconnect the emergency stop switch lead wire.
2) Check the continuity / infinity between the wiring
leads under the condition shown below.
Special tool
(A): 09930–99320 (Digital tester)
Tester knob indication
Continuity ( )
3) If out of specification, replace the switch.
Shift position Tester indicates
Neutral Continuity
Forward Infinity
Reverse Infinity
1. Clutch lever 2. Neutral switch
“ Neutral ”
“ Reverse ”
“ Forward ”
1
2
I9J011190046-02
Y/G
Br
(A)
I9J011190047-03
Tester probe connection Tester
indicatesRed (+) Black (–)
Lock plate
installed
Green Black
Infinity
Lock plate
removed
Continuity
B
G
(A)
I9J011190048-04
B
G
(A)
I9J011190049-04
