Suzuki DF70A - Engine Holder; Oil Pan; Driveshaft Housing; Mounts Components

2A-4 Housing and Bracket:

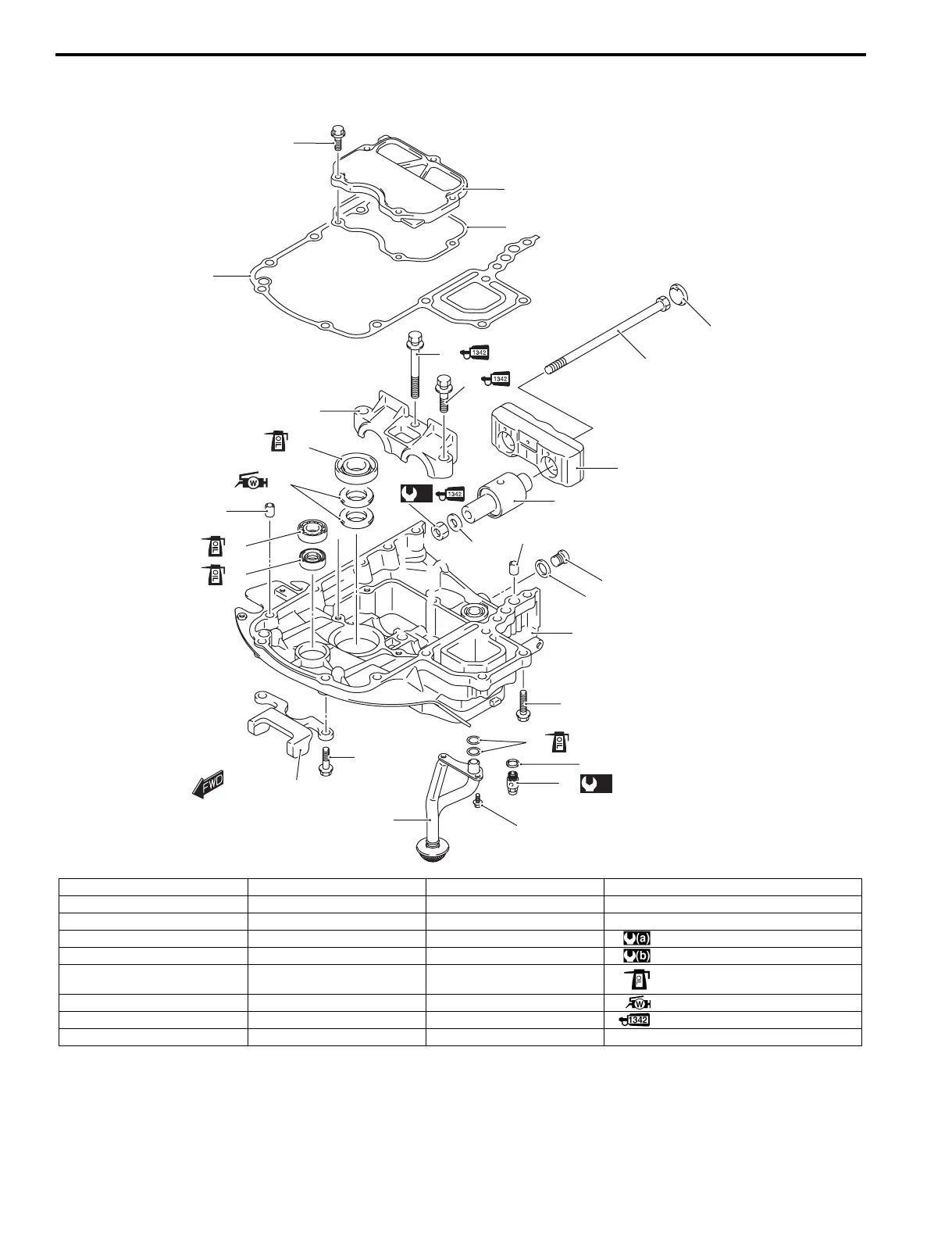

Engine Holder / Oil Pan / Driveshaft Housing / Mounts Components
Z9J0112106003
17
18
20
19
15
16
1
2
3
4
14
10
11
9
12
13
(a)
22
21
8
6
7
23
26
29
(b)
30
28
27
5
25
24
I9J011210004-01
1. Mount case cover 10. Driven gear seal 19. Upper thrust mount 28. Bolt
2. Gasket 11. Oil seal 20. Upper mount 29. Gasket
3. Bolt 12. Clutch shaft bearing 21. Washer 30. Oil relief valve
4. Gasket 13. Oil seal 22. Nut : 80 N⋅m (8.0 kgf-m, 57.8 lbf-ft)
5. Engine holder 14. Upper mount cover 23. Bolt : 27 N⋅m (2.7 kgf-m, 19.5 lbf-ft)
6. Gasket 15. Bolt 24. Upper unit stopper : Apply engine oil.
7. Plug 16. Bolt 25. Bolt : Apply SUZUKI water resistant grease.
8. Dowel pin 17. Spacer 26. O-ring : Apply SUZUKI thread lock 1342.
9. Dowel pin 18. Upper mount bolt 27. Oil strainer
