Suzuki DF70A - Page 247

Housing and Bracket: 2A-5
TRANSOM X TYPE
1
2
3
5
7
8
9
10
4
11
12
13
(a)
6
14
15
16
17
18
19
(b)
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
40
39
36
41
43
42
35
37
38
44
I9J011210005-03

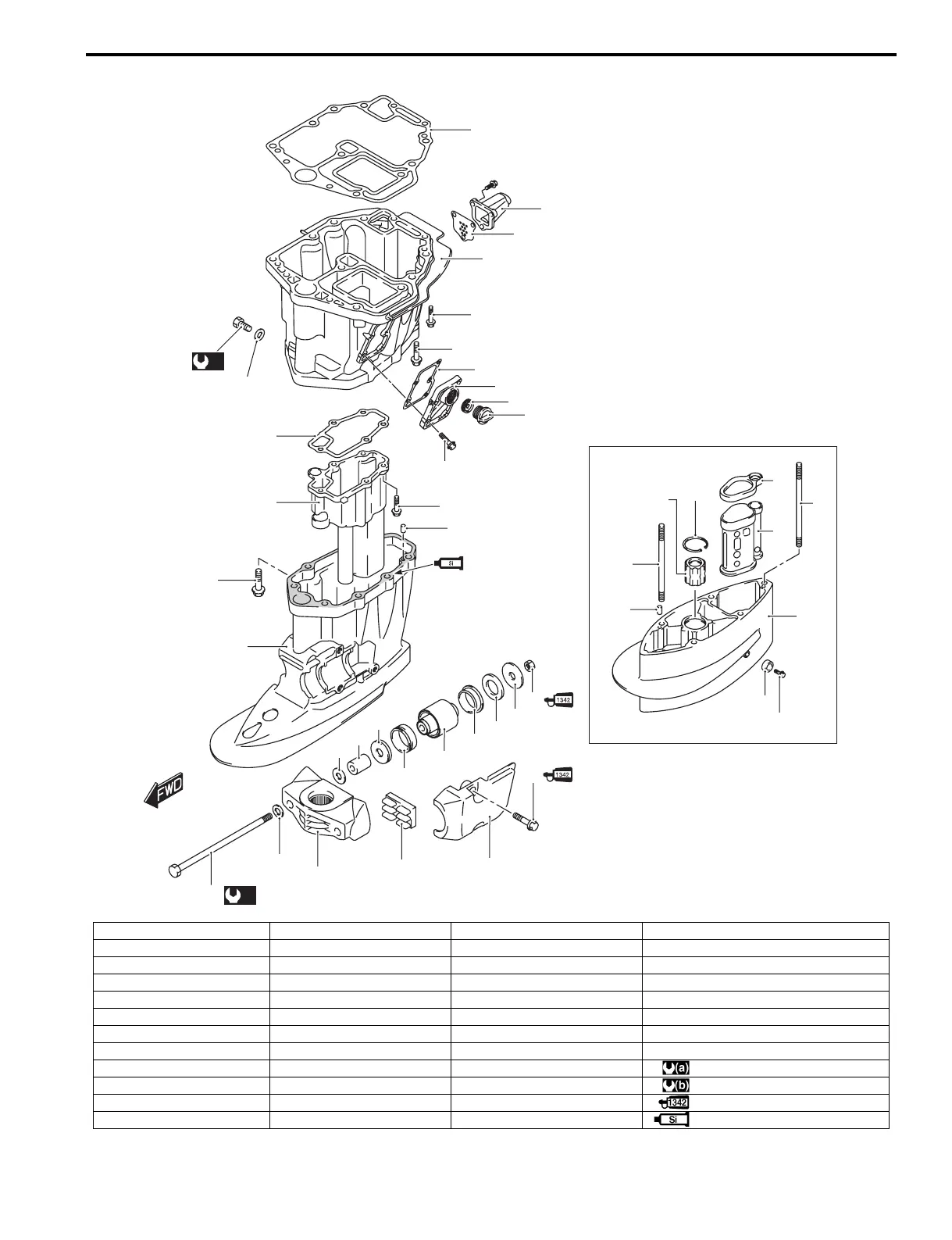

1. Gasket 13. Bolt 25. Lower mount spacer 37. Seal
2. Oil pan 14. Gasket 26. Damper 38. Exhaust tube Extension
3. Exhaust pipe 15. Exhaust tube housing 27. Lower side mount FWD 39. Circlip
4. Gasket 16. Bolt 28. Lower mount 40. Bush
5. Gasket 17. Dowel pin 29. Lower side mount 41. Dowel pin
6. Oil drain plug 18. Bolt 30. Damper 42. Extension case
7. Bolt 19. Driveshaft housing 31. Washer 43. Anode
8. Bolt 20. Lower mount bolt 32. Nut 44. Bolt
9. Gasket 21. Washer 33. Lower mount cover : 13 N⋅m (1.3 kgf-m, 9.5 lbf-ft)
10. Water jacket cover 22. Lower mount bracket 34. Bolt : 60 N⋅m (6.0 kgf-m, 43.4 lbf-ft)
11. Gasket 23. Lower thrust mount 35. Bolt : Apply SUZUKI thread lock 1342.
12. Water plug 24. Washer 36. Bolt : Apply SUZUKI silicon seal.
