Housing and Bracket: 2A-15
Clutch Shaft Bearing and Oil Seal Replacement
Z9J0112106007

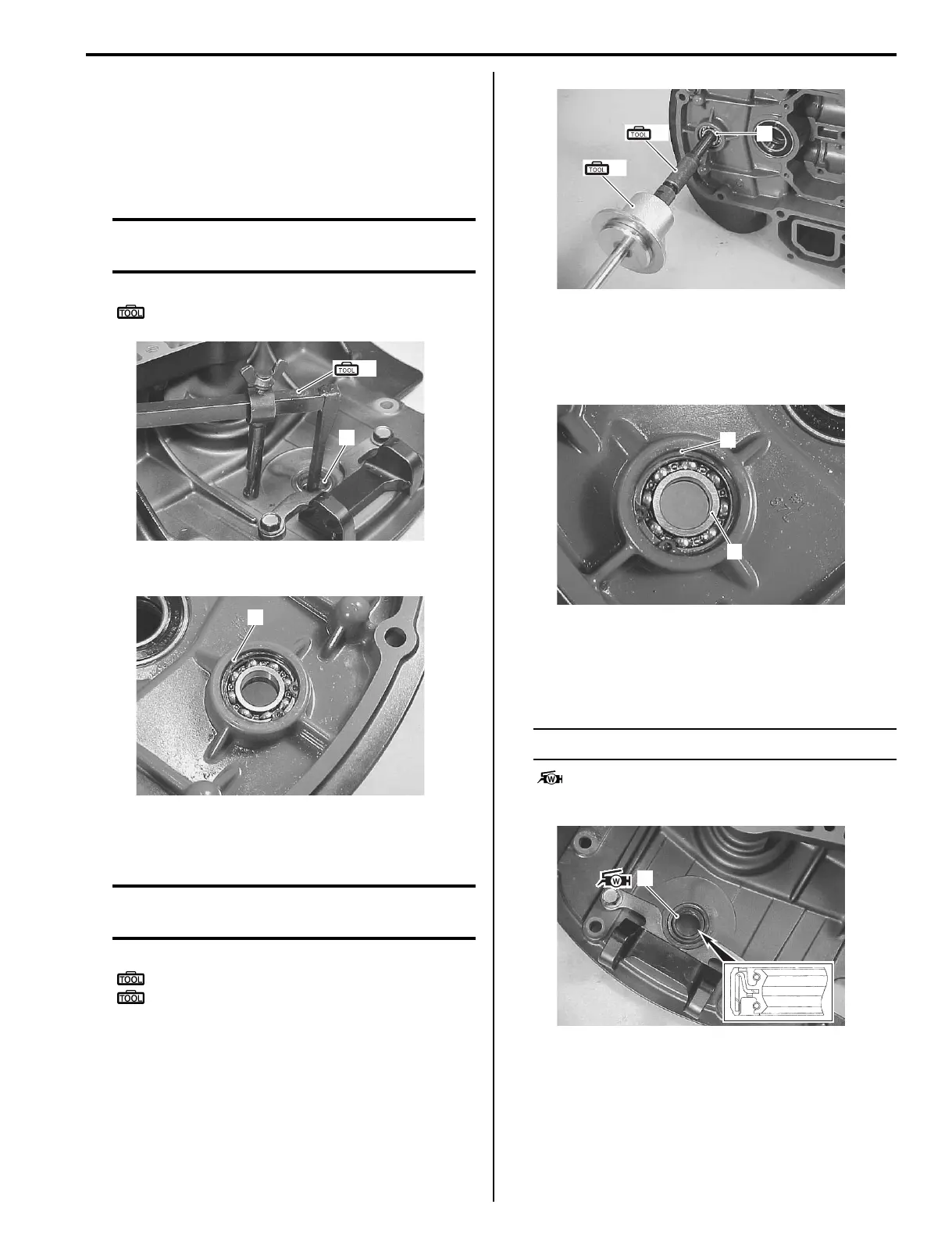

1) Remove the engine holder. Refer to “Engine Holder /
Oil Pan / Driveshaft Housing / Mounts Disassembly”
(Page 2A-6).
2) Extract oil seal (1) with oil seal remover.
CAUTION
Do not reuse oil seal once removed.
Always use a new oil seal.
Special tool
(A): 09913–50121 (Oil seal remover)
3) Remove circlip (2).
4) Remove bearing (3) with special tool and sliding
hammer.
CAUTION
Do not reuse the bearing once removed.
Always use a new bearing.
Special tool
(B): 09923–73210 (Bearing remover)
(C): 09930–30104 (Sliding hammer)
5) Apply engine oil to outer circumference of bearing
(3).
Install bearing into engine holder.
6) Install circlip (2).
7) Apply water resistant grease to outer circumference
of oil seal (1).
Drive oil seal into engine holder.
Apply water resistant grease to the seal lip.
NOTE
Install oil seal as shown in the figure.
: Grease 99000–25161 (SUZUKI Water
Resistant Grease (250 g))
8) Reassemble the engine holder. Refer to “Engine
Holder / Oil Pan / Driveshaft Housing / Mounts
Assembly” (Page 2A-9).
