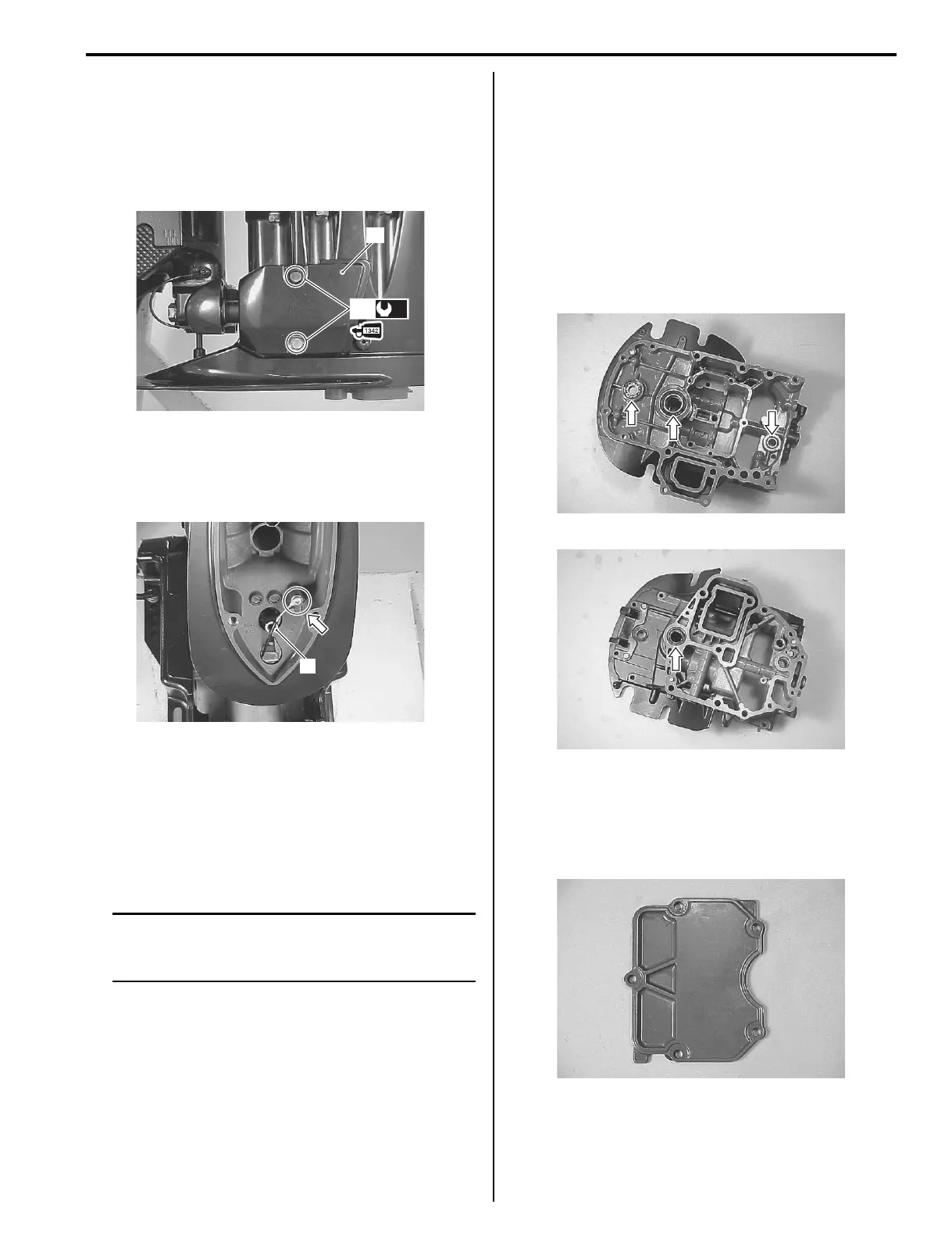

Housing and Bracket: 2A-13
• Install lower mount cover (12) and cover bolts (13),
then tighten bolts, pre-coated with thread lock, to
specified torque.
Tightening torque
Lower mount cover bolt (b): 50 N·m (5.0 kgf-m,
36.0 lbf-ft)
Bonding Wire
• Reattach the bonding wire (1), then tighten screw
securely.
Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Related Component Inspection
Z9J0112106006
Refer to “Engine Holder / Oil Pan / Driveshaft Housing /
Mounts Disassembly” (Page 2A-6) and “Engine Holder /
Oil Pan / Driveshaft Housing / Mounts Assembly”
(Page 2A-9).
NOTE
If any component is found to be excessively
worn, cracked, defective or damaged in any
way, it must be replaced.
Engine Holder
• Inspect the engine holder. Replace if cracked,
damaged, or other abnormal conditions are noted.
• Check water passage. If clogged or obstructed, clean
water passage.
• Visually check the clutch shaft bearing. Replace if
pitted, noisy, rough or other abnormal conditions are
found.
• Check the clutch shaft oil seal. Replace the oil seal if
nicked, cut, worn or other abnormal conditions are
found.
Mount Case Cover
• Inspect the mount case cover. Replace the mount
case cover if cracked, damaged or other abnormal
conditions are found.
(b)
13
12
I9J011210059-01
1
I9J011210060-01
I9J011210061-01
I9J011210062-01
I9J011210063-01
