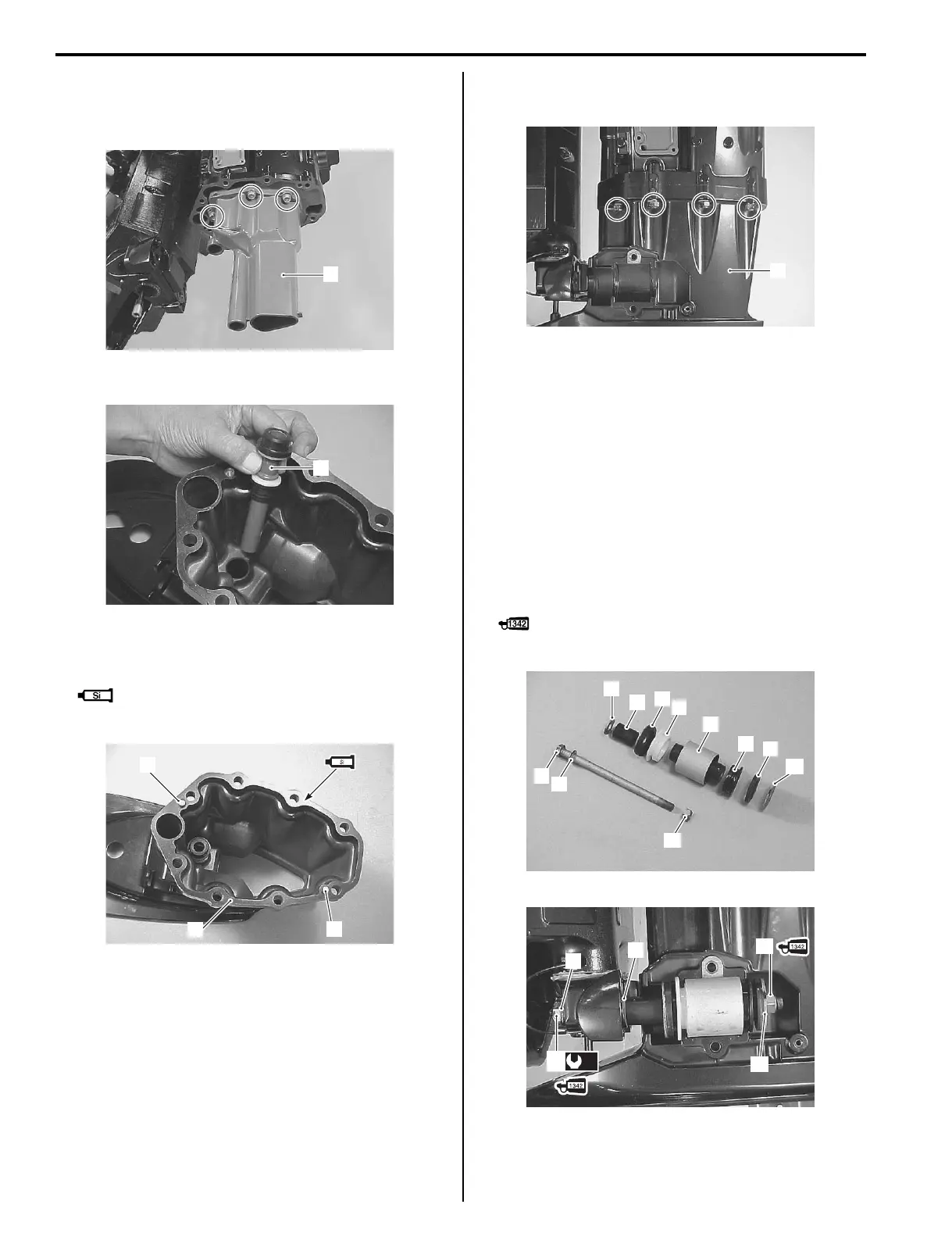

2A-12 Housing and Bracket:
Driveshaft Housing / Oil Pan
• Install the gasket and exhaust tube housing (1), then
tighten bolts securely.
• Install water tube (2).
• Install two dowel pins (3) to driveshaft housing (4).
Apply sealant to mating surfaces of driveshaft housing
and oil pan.
: Sealant 99000–31120 (SUZUKI Silicone
Seal (50 g))
• Install driveshaft housing (5) to oil pan, then tighten
eight bolts securely.
Lower Mount / Bolt / Nut
• Assemble the white lower side mount (1), lower thrust
damper (2), black lower side mount (3) and damper
(4) to the lower mount (5) as shown in figure.
• Place the spacer (6) and lower mount assembly into
driveshaft housing.
• Install the lower mount bolt (7), washer (8), washer
(9), washer (10) and nut (11), then tighten bolt, pre-
coated with thread lock, to specified torque.
Tightening torque
Lower mount bolt (a): 60 N·m (6.0 kgf-m, 43.4 lbf-
ft)
: Thread lock cement 99000–32050 (SUZUKI
Thread Lock 1342 (50 g))
1
I9J011210053-01
2
I9J011210054-01
3
4
3
I9J011210055-02
5
I9J011210056-02
1
2
3
5
6
7
8
9
10
4
11
I9J011210057-01
8
9
(a)
7
11
10
I9J011210058-02
To Next Page
