2B-12 Power Trim and Tilt:
Setting Tilt Up Limit Position
Z9J0112206012
If the outboard motor contacts the motor well of the boat
during full tilt up operation, the upper limit setting should
be reset. Perform this set-up after the current position
setting has been canceled, as explained in the following
procedure.
Canceling Tilt Up Position Limit Setting

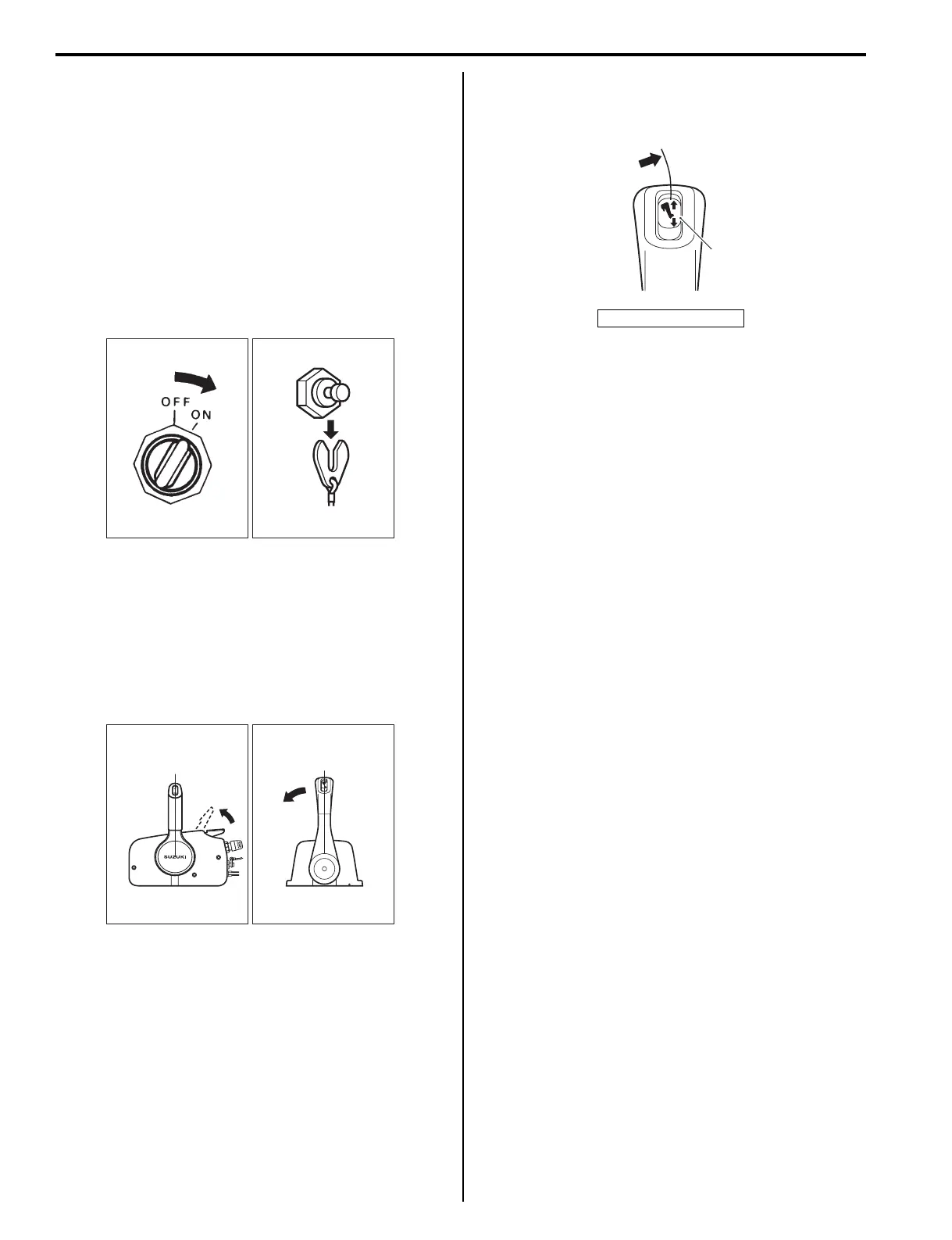

1) Turn the ignition key to the “ON” position.
2) Pull out the emergency stop switch lock plate.
3) Make sure that remote control handle is in “Neutral”.
(Check that the neutral switch is in “ON” position.)
4) Top mount type:
Using the throttle only function of the remote control
box, move the control handle forward until the
caution buzzer sounds one time.
Side mount type:
Using the throttle only function of the remote control
box, move the warm-up lever upward until the
caution buzzer sounds one time.
5) Press the “UP” side of the PTT switch for three
seconds and the buzzer will sound twice briefly
indicating the setting has been canceled.
6) Return the throttle to the fully closed position.
Setting Tilt Up Position Limit
1) Press the UP side of the PTT switch so that the
optimum full tilt up position for the boat can be
obtained.
2) Turn the ignition key to the “ON” position.
3) Pull out the emergency stop switch lock plate.
4) Make sure that remote control handle is in “Neutral”.
(Check that the neutral switch is in “ON” position.)
5) Top mount type:
Using the throttle only function of the remote control
box, move the control handle forward until the
caution buzzer sounds one time.
Side mount type:
Using the throttle only function of the remote control
box, move the warm-up lever upward until the
caution buzzer sounds one time.
6) Press the “UP” side of PTT switch three times within
three seconds.
The buzzer will sound one time briefly indicating the
setting has been accepted.
7) Return the throttle to the fully closed position and
install the lock plate on the emergency switch.
Operate the full tilt up and full trim down operations
several times by pressing the PTT switch and check
that the settings of both the trim down limit and tilt up
limit is properly set.
I9J011220057-01
“NEUTRAL” “NEUTRAL”
I9J011220058-01
1. PTT switch
UP
1
I9J011220059-02
