Fuel System: 1G-26

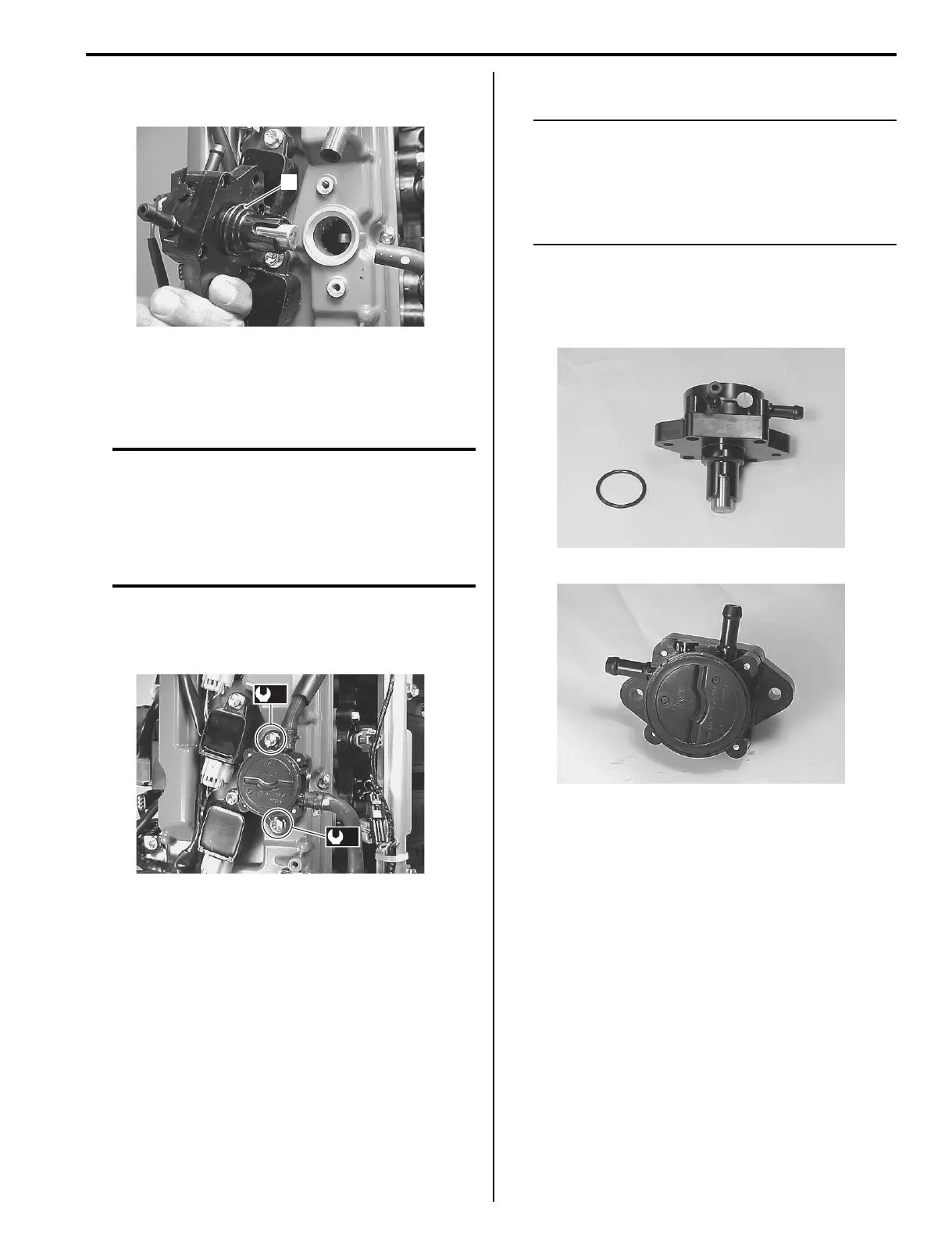

4) Remove fuel pump. Note the position before
removing the O-ring (7).
Installation
Installation is in the reverse order of removal with special
attention to the following steps.
CAUTION
• Before installing the fuel pump, rotate the
crankshaft to bring the No.1 (top cylinder)
piston to Top Dead Center on the
compression stroke.
• Do not reuse O-ring once removed. Always
use a new O-ring.
Tightening torque
Low pressure fuel pump bolt (a): 10 N·m (1.0 kgf-m,
7.0 lbf-ft)
Low Pressure Fuel Pump Inspection
Z9J0111706015
NOTE
The low pressure fuel pump is a non-
repairable component.
Do not attempt to disassemble the low
pressure fuel pump.
It must be replaced as a complete unit if it is
defective.
Fuel Pump Assembly
Inspect the fuel pump.
If leakage, cracks, damage or other abnormal condition
is found, replace fuel pump assembly.
7
I9J011170069-01
(a)
(a)
I9J011170070-01
I9J011170071-01
I9J011170072-01
