1D-61 Power Unit Mechanical:

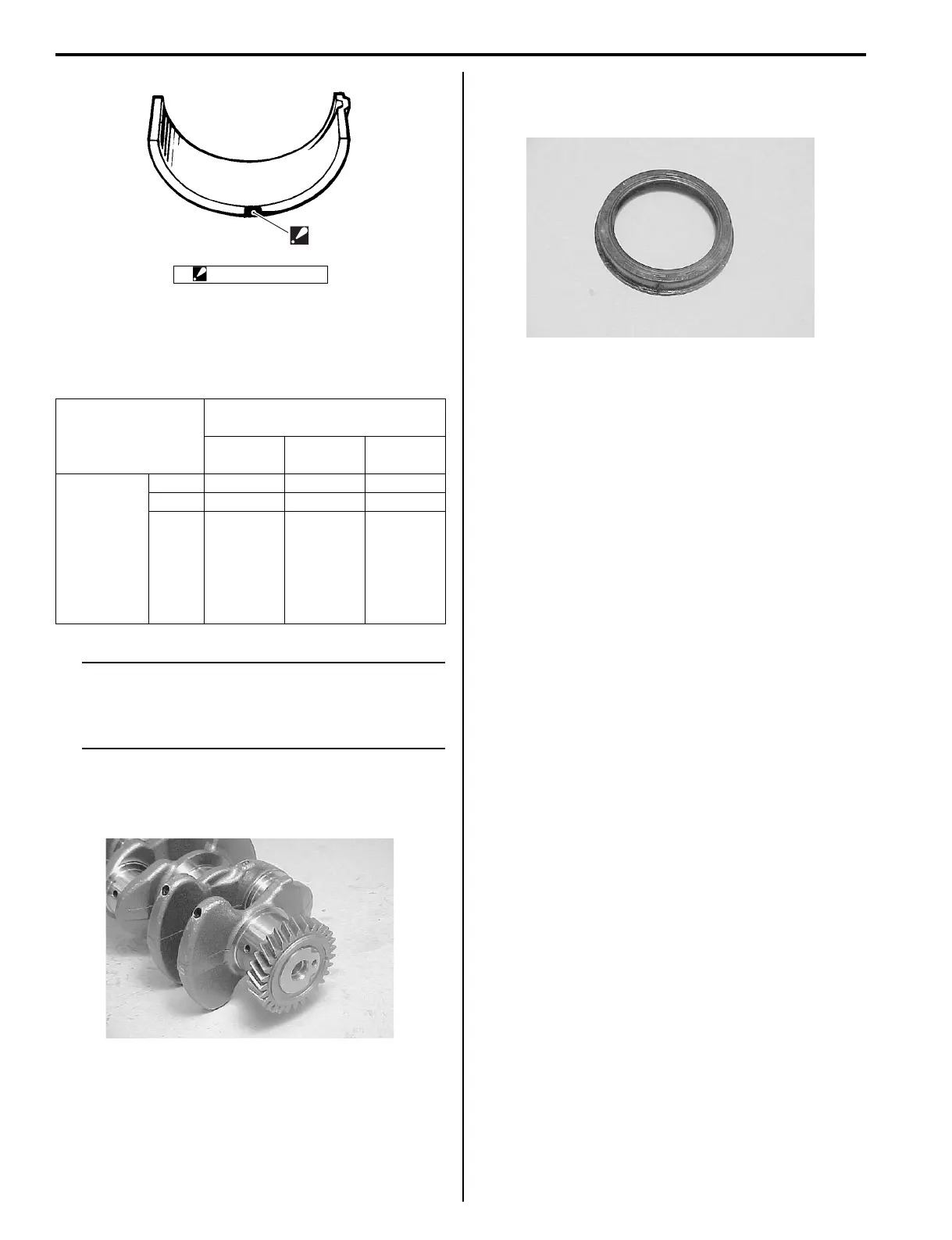

4) Select crankshaft main bearing referring to the below
table.
For example, If number stamped on crank web is “1”
and alphabet stamped on cylinder block is “B”, install
a new bearing painted in “Brown” to it’s journal.
NOTE
Measure crankshaft journal oil clearance
again after installing new bearing selected.
Refer to “Crankshaft Journal Oil Clearance”
(Page 1D-58).
Crankshaft Drive Gear Inspection
Z9J0111406026
Inspect drive gear. Replace gear if damaged or worn.
Crankshaft Oil Seal Inspection
Z9J0111406027
Inspect condition. If cracked, cut or damaged, replace.
“K”: Color mark
Numeral stamped on crank web
(journal outside diameter)
123
Code
stamped on
cylinder
block
(Bearing
holder
inside
diameter)
A or 1 Purple Brown Green
B or 2 Brown Green Black
C or 3 Green Black No color
“K”
I9J011140074-01
I9J011140264-01
I9J011140265-01
