Suzuki DF70A - Service Instructions; Lower Side Cover Components

2A-2 Housing and Bracket:
Service Instructions

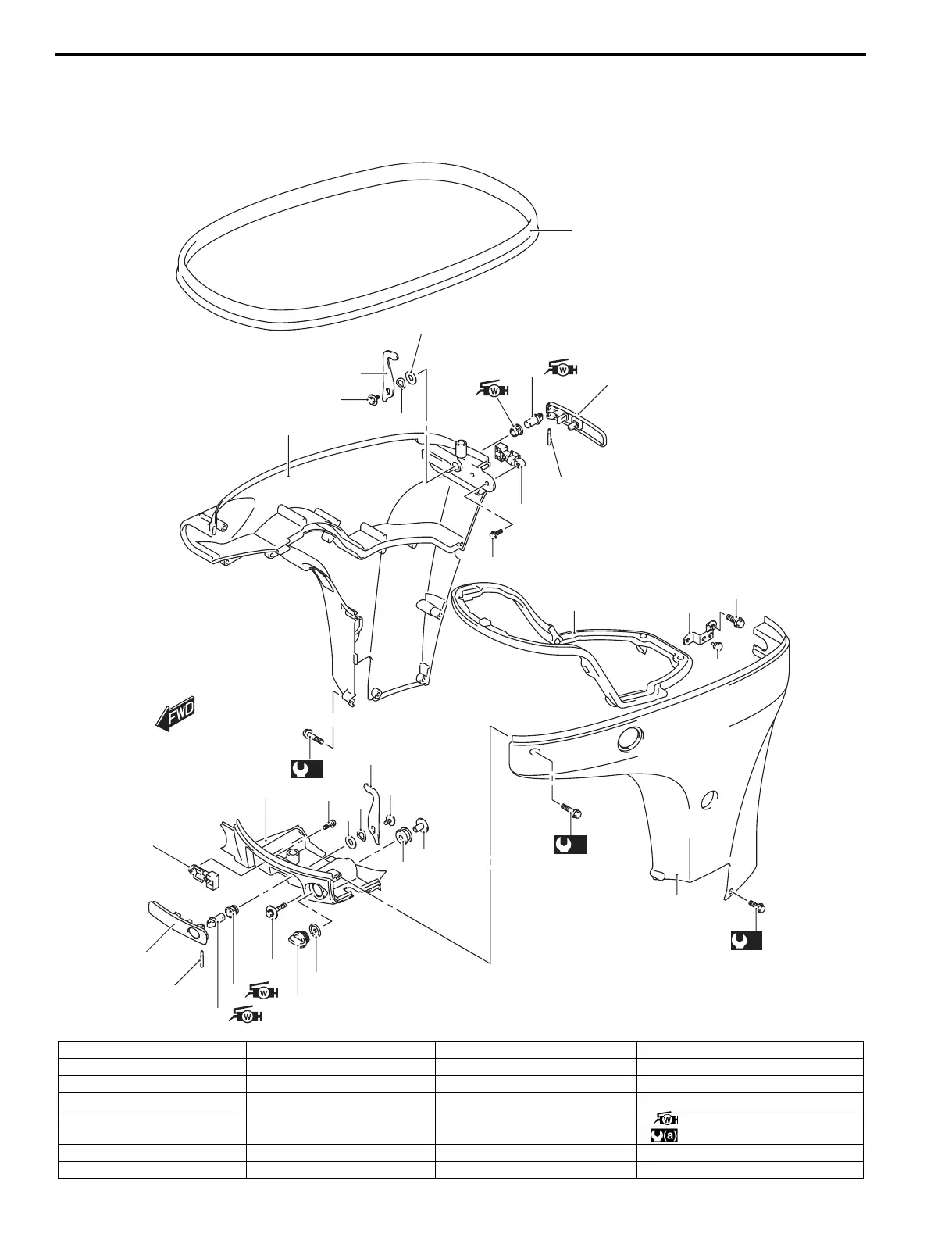

Lower Side Cover Components
Z9J0112106001
1
23
22
18
19
3
24
26
17
20
25
28
2
9
10
8
4
13
14
18
24
23
22
21
25
26
27
11
19
17
12
15
16
(a)
6
(a)
5
(a)
7
I9J011210003-05
1. Side cover rubber 9. Side cover holder 17. Engine cover hook shaft 25. Pin
2. Side cover seal 10. Bolt 18. Engine cover hook 26. Bush
3. Lower side cover STBD 11. Front panel 19. Bolt 27. Bolt
4. Lower side cover PORT 12. Bolt 20. Rear hook lever 28. Bolt
5. Screw 13. Washer 21. Front hook lever : Apply water resistance grease.
6. Screw 14. Cushion 22. Hook lever latch : 7 N⋅m (0.7 kgf-m, 5.0 lbf-ft)
7. Screw 15. Water plug 23. Washer
8. Cushion 16. Gasket 24. Wave washer
