Suzuki DF70A - Timing Chain, Chain Tensioner and Camshaft Sprockets Components

1D-19 Power Unit Mechanical:

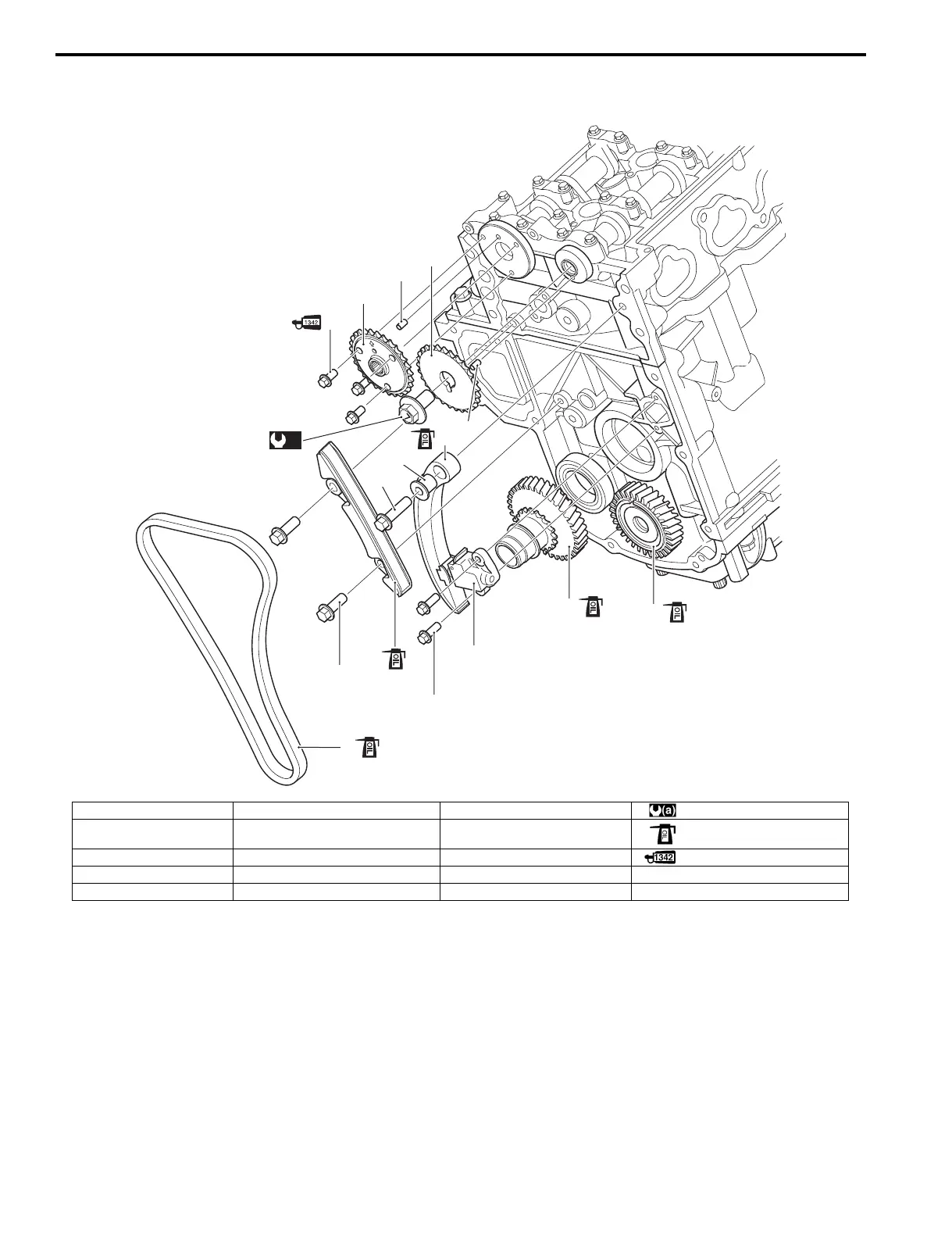

Timing Chain, Chain Tensioner and Camshaft Sprockets Components
Z9J0111406010
12
11
10
9
11
6
5
4
15
7
3
2
1
14
8
(a)
13
I9J011140003-04
1. Timing chain 6. Chain tensioner 11. Dowel pin : 78 N⋅m (7.8 kgf-m, 56 lbf-ft)
2. Bolt 7. Bolt 12. Intake camshaft sprocket : Apply oil.
3. Chain guide 8. Tensioner adjuster 13. Bolt (L.H. thread) : Apply thread lock.
4. Bolt 9. Bolt 14. Driven gear
5. Spacer 10. Exhaust camshaft sprocket 15. Crankshaft
