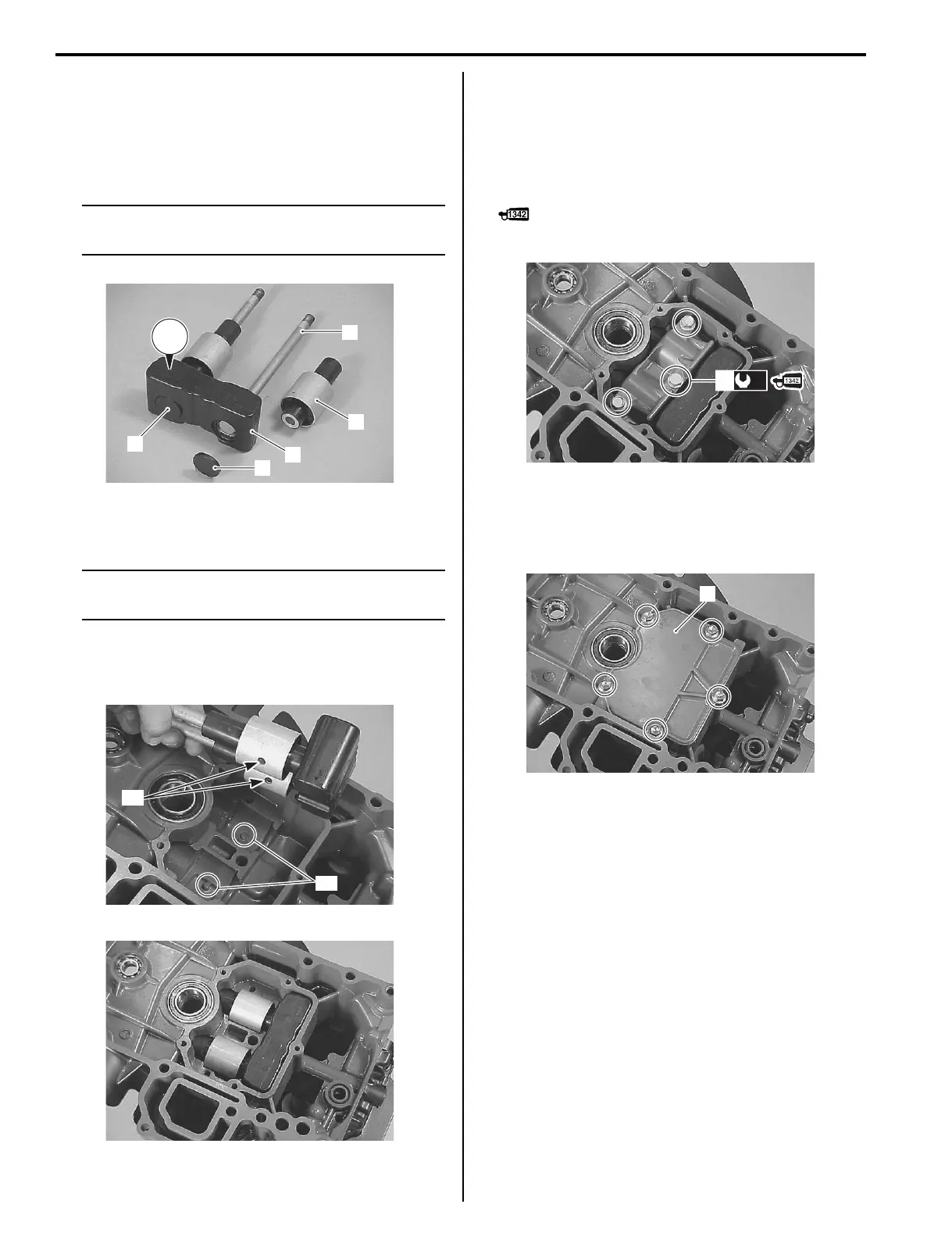

2A-10 Housing and Bracket:
Upper Mount and Mount Cover
• Assemble these items in the following sequence:
Place upper thrust mount (1) and upper mounts (2) on
upper mount bolts (3).
• Install dampers (4) to thrust mount.
NOTE
Install upper thrust mount with the lettered
mark “UP” facing upward.
• Place upper mount / thrust mount assembly into
position.
NOTE
Position the retaining pin hole on upper
mount facing downward.
• Be sure the retaining pin “A” on the engine holder
properly fits into the retaining pin hole “B” on the
mount.
• Install the upper mount cover (5).
• Tighten upper mount cover bolts, pre-coated with
thread lock, to specified torque.
Tightening torque
Upper mount cover bolt (a): 50 N·m (5.0 kgf-m,
36.0 lbf-ft)
: Thread lock cement 99000–32050 (SUZUKI
Thread Lock 1342 (50 g))
Mount Case Cover
• Install the gasket and mount case cover (1), then
tighten five cover bolts securely.
1
2
3
4
UP
4
I9J011210042-01
“B”
“A”
I9J011210043-01
I9J011210044-01
(a)
5
I9J011210045-02
1
I9J011210046-01
To Next Page
