Suzuki DF70A - Page 263

Housing and Bracket: 2A-21

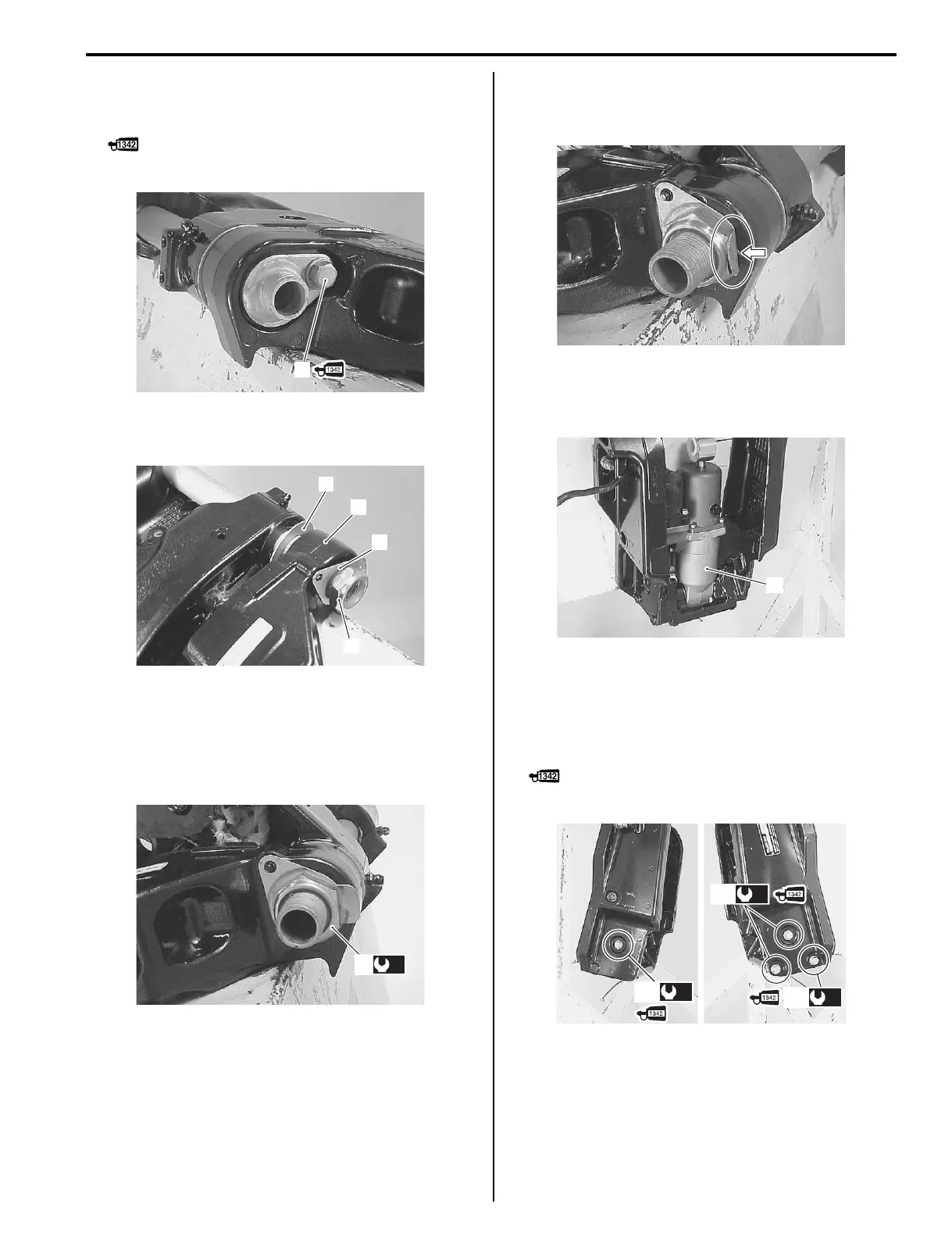

• Apply Thread Lock 1342 to threads of shaft bolt (5)
before threading it to PORT clamp bracket.
Install the shaft bolt (5), then tighten it securely.
: Thread lock cement 99000–32050 (SUZUKI
Thread Lock 1342 (50 g))
• Install washer (6), STBD clamp bracket (7), lock
washer (8) and clamp bracket shaft nut (9).
• Tighten clamp bracket shaft nut (9) to specified
torque.
Tightening torque
Clamp bracket shaft nut (a): 43 N·m (4.3 kgf-m,
31.0 lbf-ft)
• After tightening clamp bracket shaft nut to specified
torque, bend lock washer edge toward nut to secure
nut.
• Install PTT unit and lower clamp bracket assembly
(10). Refer to “Power Trim and Tilt Unit Removal and
Installation” in Section 2B (Page 2B-13).
• Tighten four lower clamp bracket bolts (11), pre-
coated with thread lock, to specified torque.
Tightening torque
Lower clamp bracket bolt (b): 50 N·m (5.0 kgf-m,
36.0 lbf-ft)
: Thread lock cement 99000–32050 (SUZUKI
Thread Lock 1342 (50 g))
5
I9J011210101-01
6
7
8
9
I9J011210102-01
(a)
9
I9J011210103-01
I9J011210104-01
10
I9J011210105-01
(b)
11
(b)
11
(b)
11
I9J011210106-01
