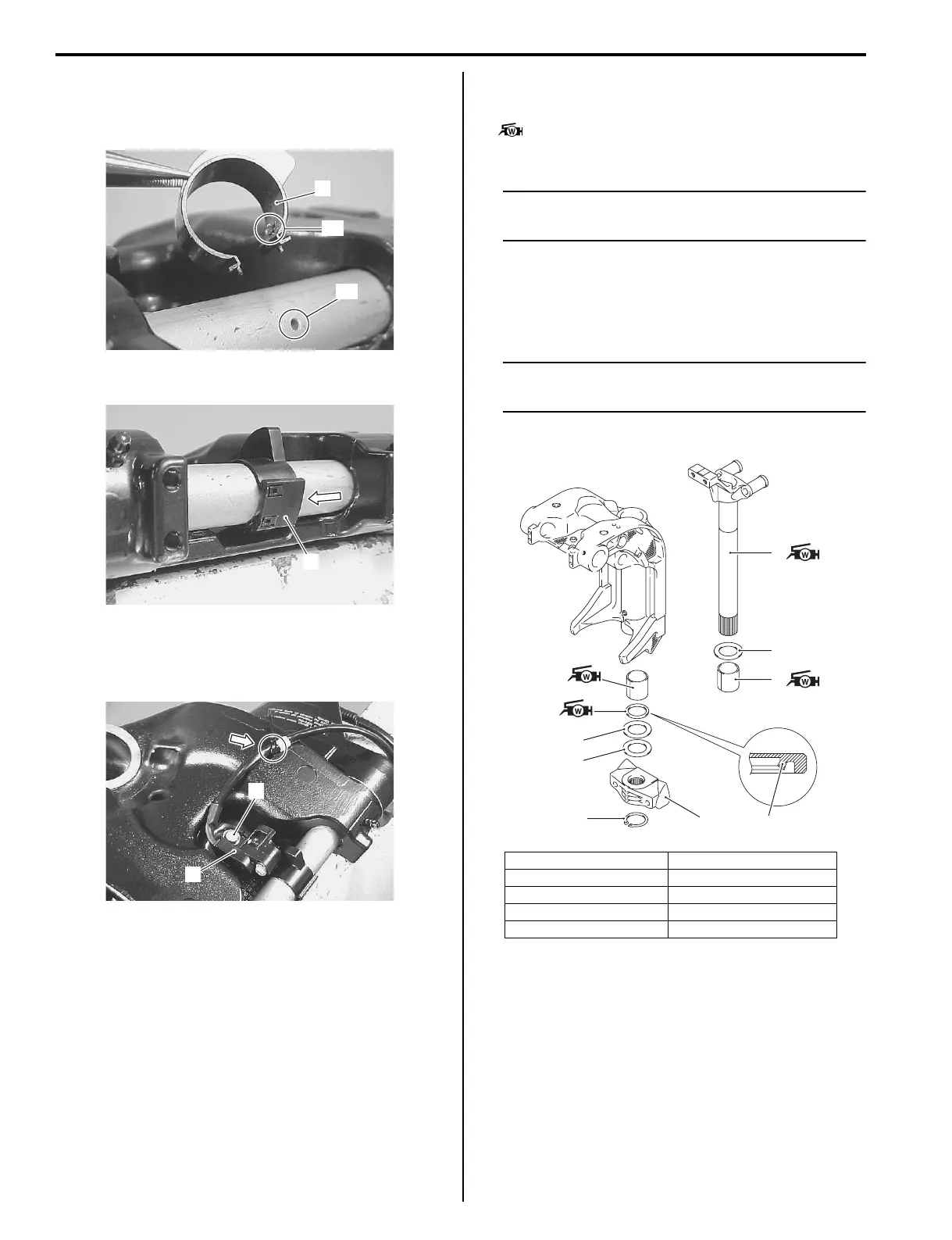

2A-22 Housing and Bracket:
Trim Sensor and Trim Sensor Cam
• Install the upper trim sensor cam (1) engaging its
locating pin “A” with the clamp bracket shaft hole “B”.
• Install the lower trim sensor cam plate (2).
• Install the trim sensor assembly (3), then secure it
with bolts (4).
• Secure switch lead wire with cable tie.
Steering Bracket
• Apply water resistant grease to steering bracket shaft.
: Grease 99000–25161 (SUZUKI Water
Resistant Grease (250 g))
NOTE
Apply grease to bushings, oil seal lip and
pilot shaft portion of steering bracket.
• Install upper bushing (1) and washer (2) to swivel
bracket.
• Install lower bushing (3) and swivel bracket seal (4) to
swivel bracket.
NOTE
Install bracket seal (4) with oil seal lip (spring
side) facing downward.
• Install steering bracket (5) to swivel bracket.
1
“A”
“B”
I9J011210107-01
2
I9J011210108-01
4
3
I9J011210109-02
1. Upper bushing 6. Shim
2. Washer 7. Lower mount bracket
3. Lower bushing 8. Circlip
4. Swivel bracket seal “A”: Seal lip
5. Steering bracket
1
2
5
3
4
2
6
7
8
“A”
I9J011210002-04
