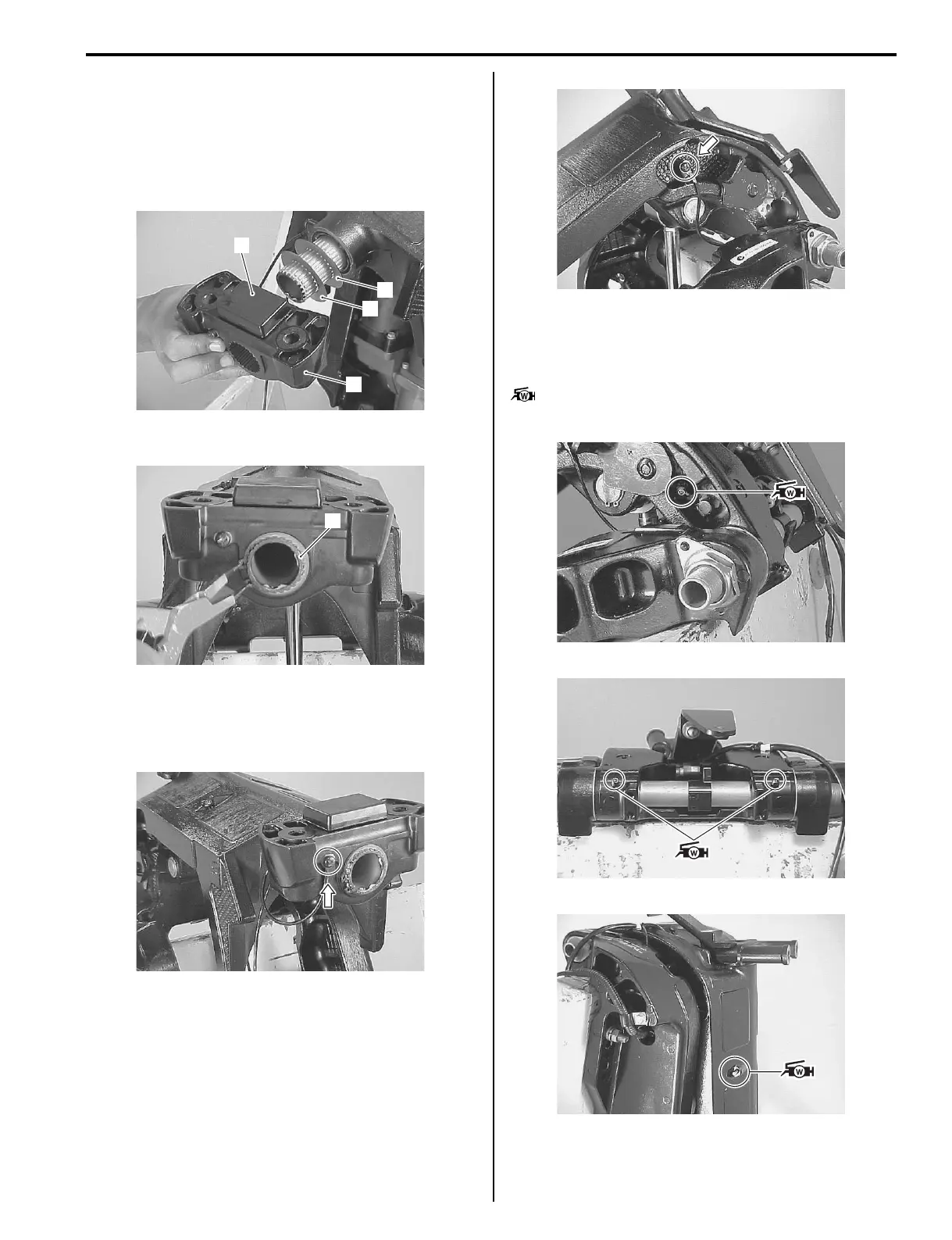

Housing and Bracket: 2A-23
Lower Mount Bracket
• Install lower thrust mount (1) to lower mount bracket
(2).
• Install washer (3) and shim (4), and then slide the
lower mount bracket (2) upward on the splines until it
contacts the shim.
• Install circlip (5) to retain bracket.
Bonding Wire
Reattach bonding wire to swivel bracket and tighten
screw securely.
Lubrication
After completing reassembly of the mid unit, apply
grease through each grease nipple.
: Grease 99000–25161 (SUZUKI Water Resistant
Grease (250 g))
1
2
4
3
I9J011210110-01
5
I9J011210111-01
I9J011210112-01
I9J011210113-01
I9J011210114-01
I9J011210115-01
I9J011210116-01
To Next Page
