General Information: 0A-2
Wire Color Symbols
Z9J0110101010
There are two kinds of colored wire used in this product.
One is single colored wire and the other is dual colored (striped) wire.
The single colored wire uses only one color symbol. example: B (Black).
The dual colored wire uses two color symbols. example: Bl/B.
The first symbol represents the base color of the wire and the second symbol represents the color of the stripe.
Example: Bl/B (Blue with Black stripe).

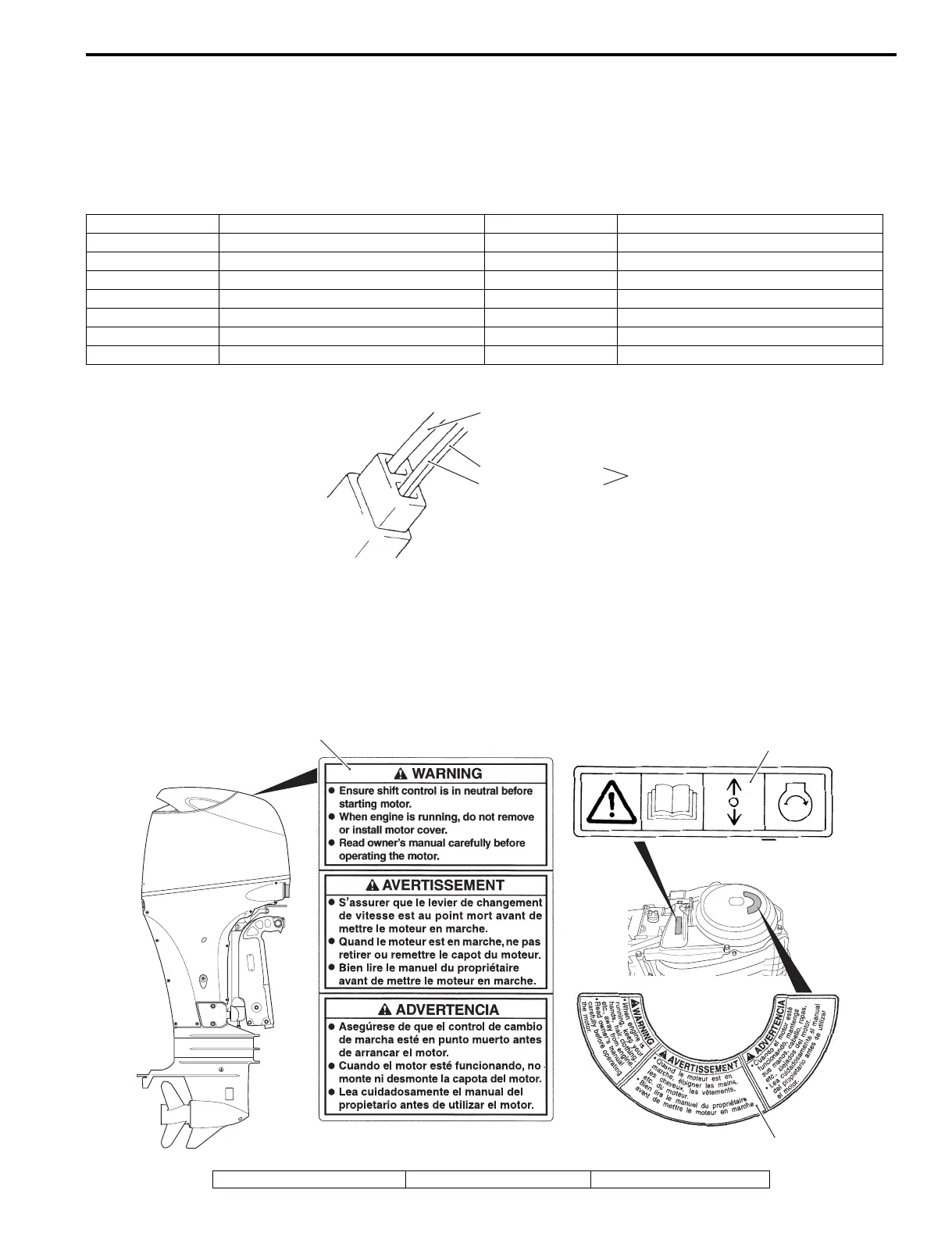

Warning, Caution and Information Label Locations
Z9J0110101011
The figure shows main labels among others that are attached to outboard motor.
When servicing outboard motor, refer to WARNING / CAUTION instructions printed on labels.
If any WARNING / CAUTION label is found stained or damage, clean or replace it as necessary.
Do not reuse a label after it has been removed. Always use new label.
Symbol Wire color Symbol Wire color
B Black Lg Light green
Bl Blue O Orange
Br Brown P Pink
Dg Dark green R Red
G Green V Violet
Gr Gray W White
Lbl Light blue Y Yellow
B (Base Color)
Bl (Blue Color)
Bl/B
Black (Stripe Color)
I9J011010001-02
1
3
2
I9J011010004-02
1. Label, engine cover 2. Label, mag cover 3. Label S.I.G.P.
