Power Unit Mechanical: 1D-8

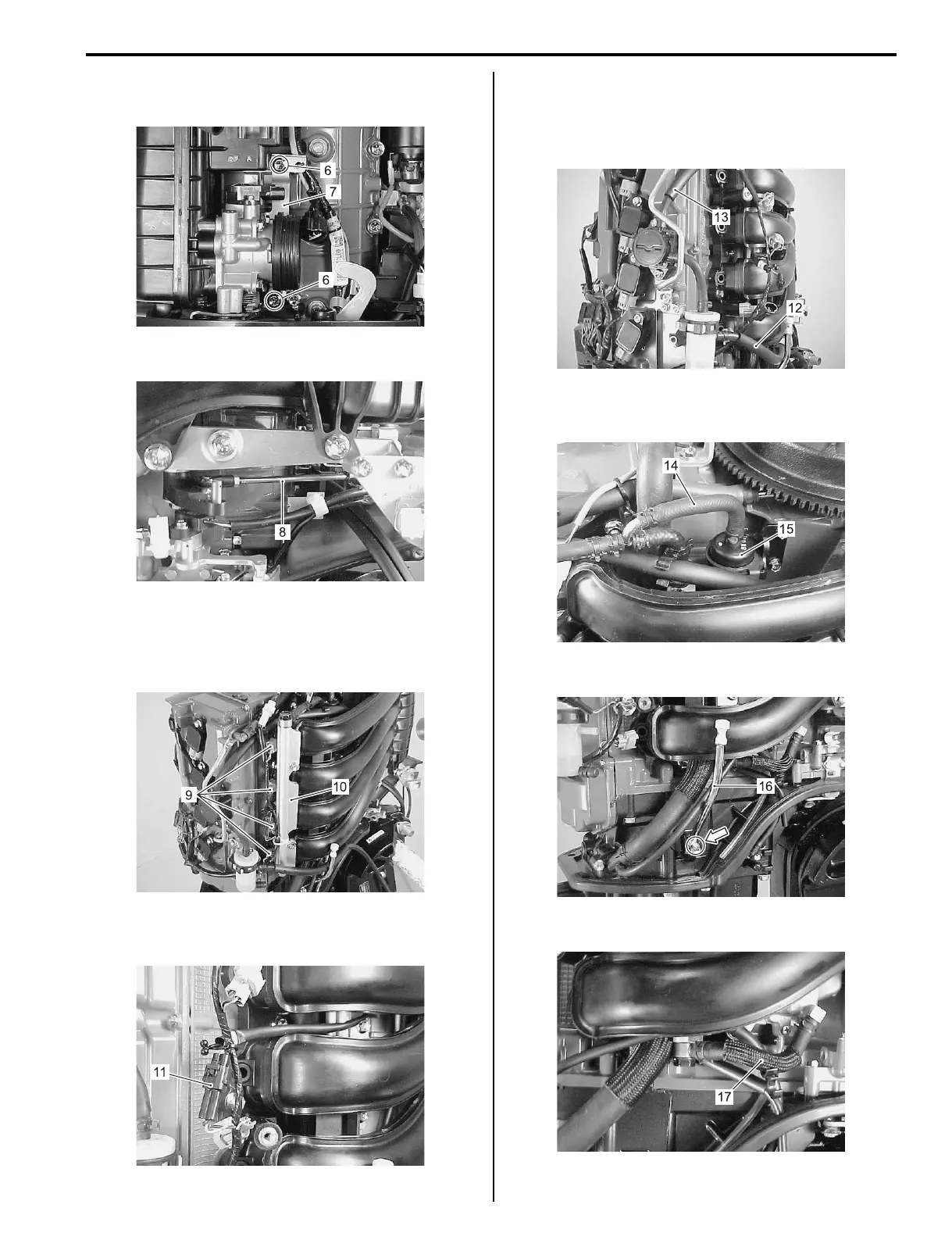

9) Remove the bolts (6) securing throttle body bracket
(7) to crankcase.
10) Remove the throttle link rod (8).
11) Remove the fuel injector (9) and fuel delivery pipe
(10).
Refer to “Fuel Injector Removal and Installation” in
Section 1G (Page 1G-23).
12) Disconnect the high pressure fuel pump lead wire
connector (11).
13) Disconnect fuel inlet hose (12) from low pressure
fuel filter.
14) Disconnect fuel outlet hose (13) from low pressure
fuel pump.
15) Disconnect fuel outlet hose (14) from high pressure
fuel filter (15).
16) Remove the bolt and oil level dipstick tube (16).
17) Disconnect fuel return hose (17) from fuel cooler.
