Fuel System: 1G-18

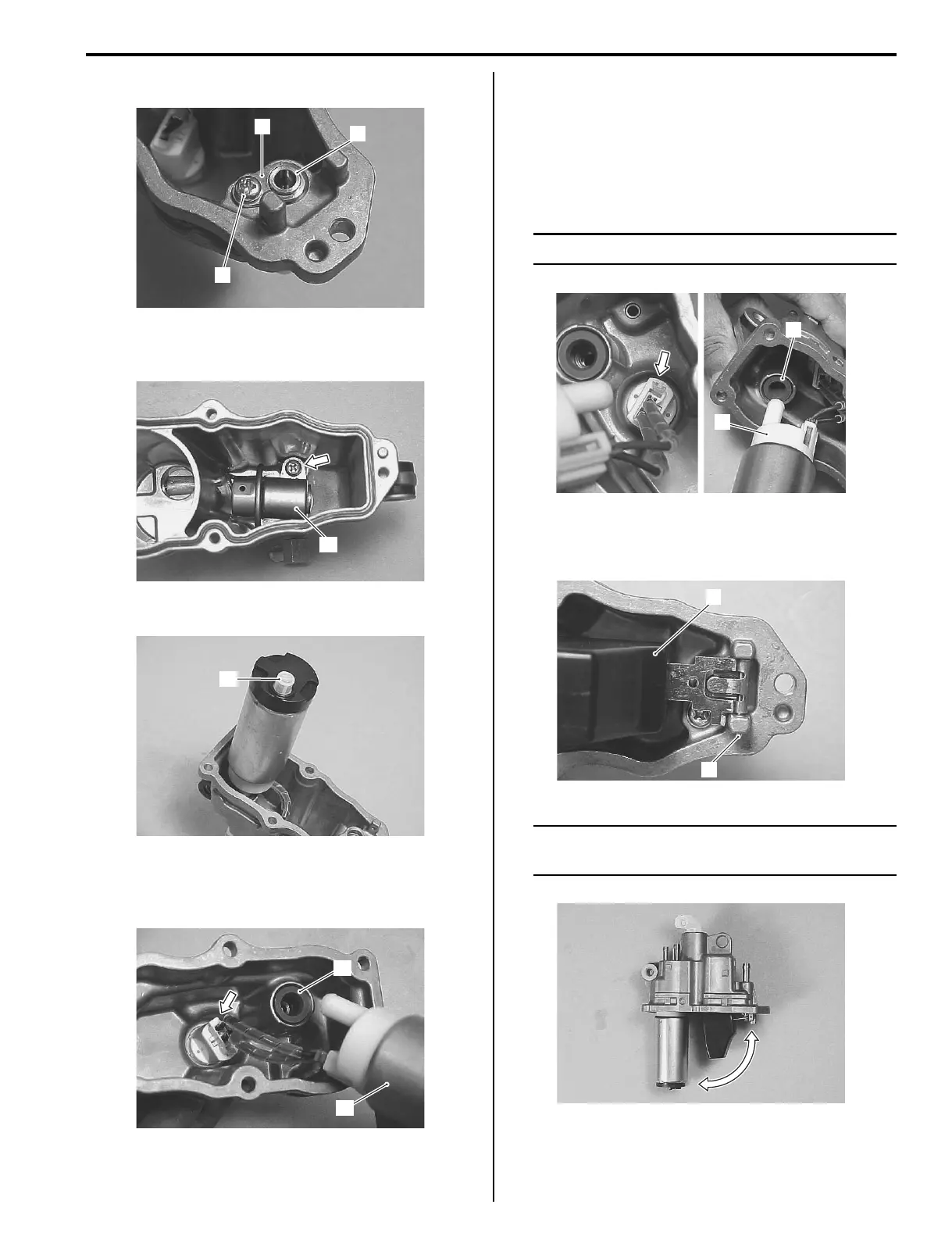

3) Remove screw (7), plate (8) and valve seat (9).
4) Remove screw and fuel pressure regulator (10) from
the separator case.
5) Remove suction filter (11).
6) Remove the high pressure fuel pump (12) and
grommet (13) from the separator cover and then
disconnect the pump lead wire connector.
Assembly
Assembly is in the reverse order of disassembly with
special attention to the following steps.
High pressure fuel pump
Connect the pump lead wire connector, then install
grommet (1) and fuel pump (2).
NOTE
Apply fuel to the grommet before installing.
Float / Float pin
Install the float (1) and float pin (2).
NOTE
After assembling, check for smooth and free
float movement.
7
8
9
I9J011170036-01
10
I9J011170037-01
11
I9J011170038-01
12
13
I9J011170039-01
1
2
I9J011170040-01
1
2
I9J011170041-01
I9J011170042-01
