Fuel System: 1G-24

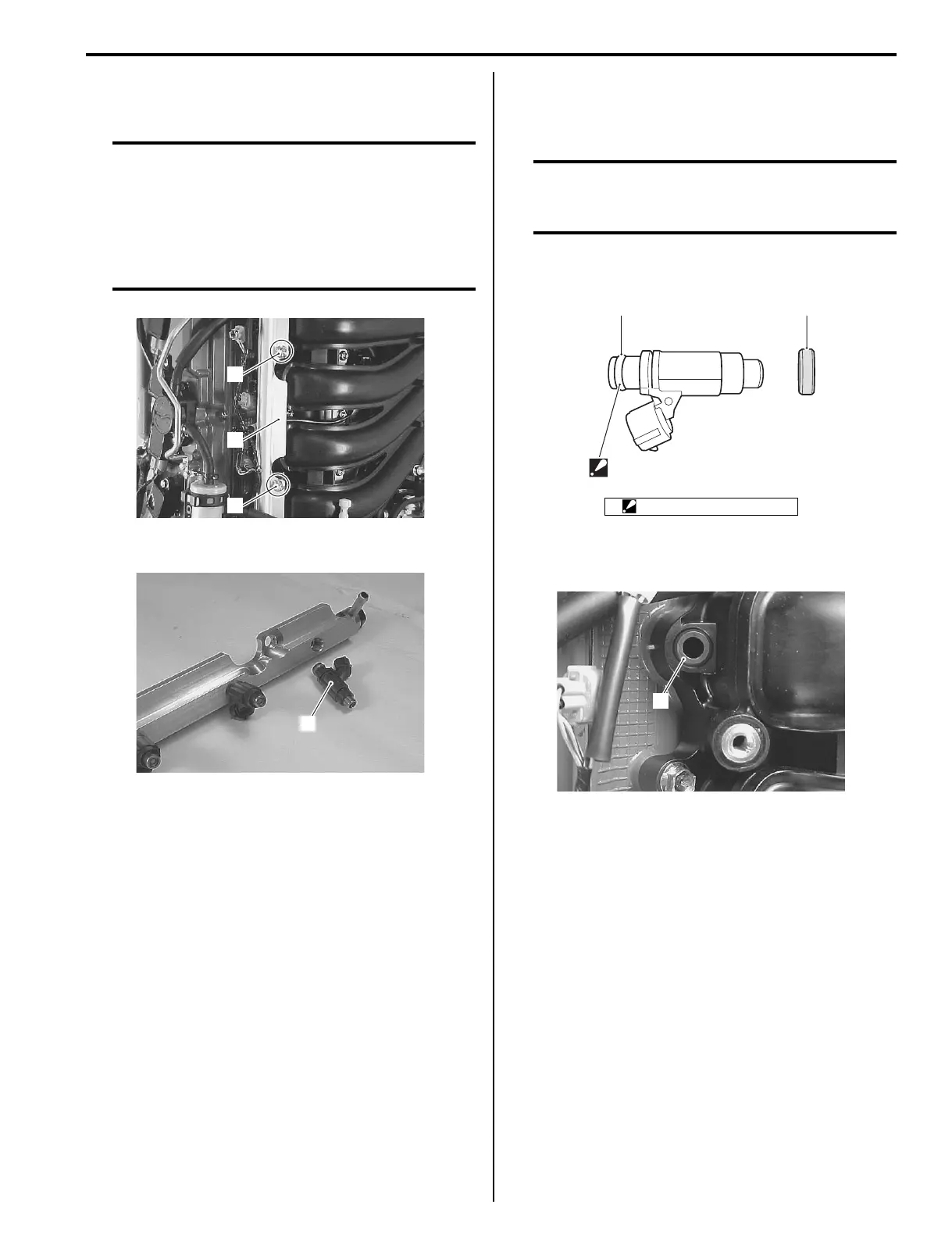

5) Remove the two bolts (4) and the fuel delivery pipe
(5) (with the fuel injectors).
CAUTION
A small amount of fuel may be released when
the fuel injector is removed from delivery
pipe.
Place a shop cloth under the fuel injector
before removal to absorb any fuel released.
Dispose of the fuel soaked cloth in
appropriate container.
6) Remove each injector (6) from the delivery pipe.
Installation
Installation is in the reverse order of removal with special
attention to the following steps.
CAUTION
Do not re-use O-ring and cushion once
removed.
Always use new parts.
1) Replace the injector O-ring (1) with a new one using
care to avoid nicks or cuts during installation.
2) Replace the injector cushion (2) with a new one and
install to the cylinder head.
5
4
4
I9J011170059-02
6
I9J011170060-01
“A”: Apply fuel to O-ring.
1 2
“A”
I9J011170024-01
2
I9J011170063-01
