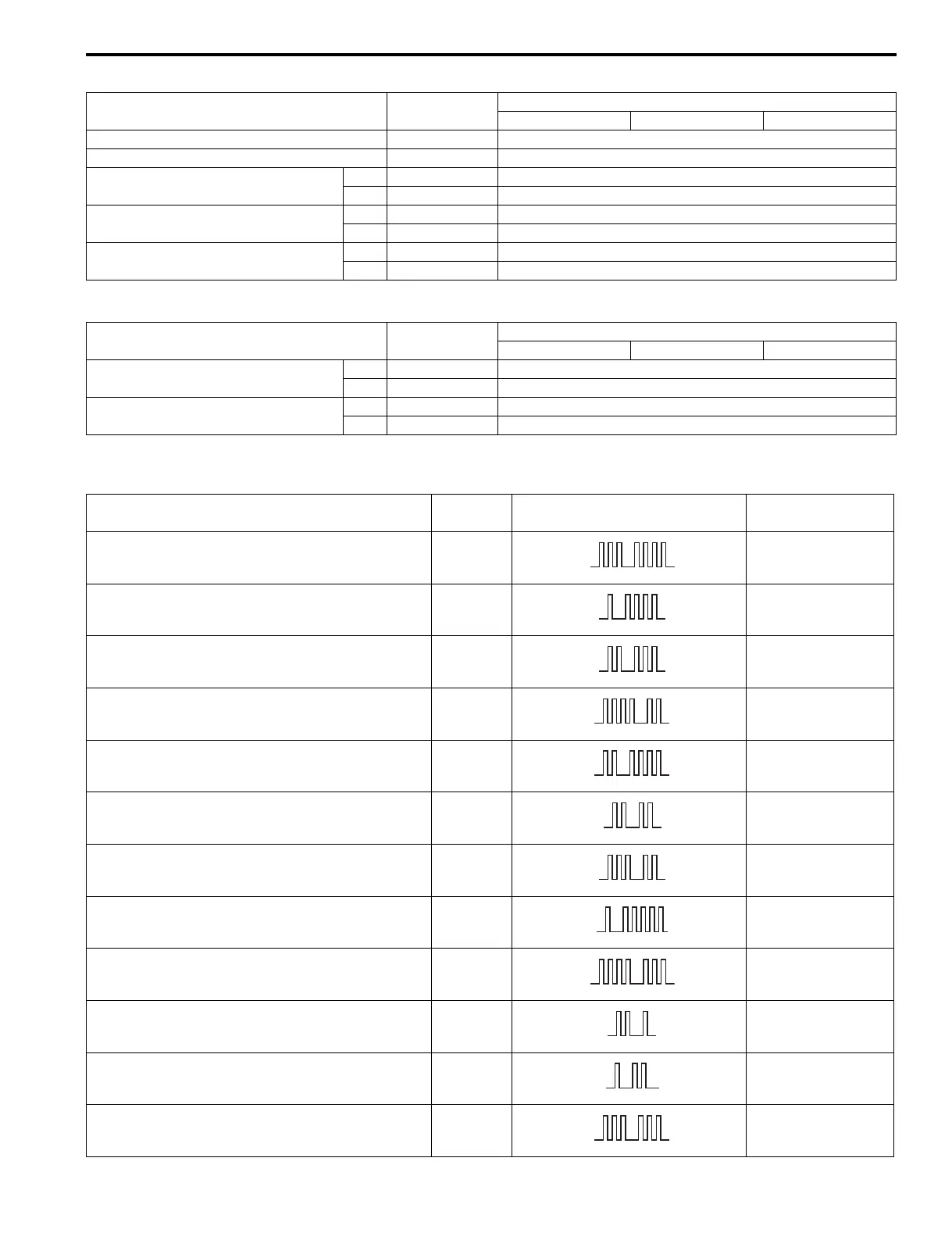

General Information: 0A-12
Starter Motor
PTT Motor
Self-Diagnostic Code
0: OFF, 1: ON
Item Unit
Data
DF70AT DF80AT DF90AT
Max. continuous time of use Sec. 30
Motor output kW 1.4
Brush length
std. mm (in.) 16.0 (0.63)
Limit mm (in.) 12.0 (0.47)
Commutator undercut
std. mm (in.) 0.5 – 0.8 (0.02 – 0.03)
Limit mm (in.) 0.2 (0.01)
Commutator outside diameter
std. mm (in.) 29.0 (1.14)
Limit mm (in.) 28.0 (1.10)
Item Unit
Data
DF70AT DF80AT DF90AT
Brush length
std. mm (in.) 9.8 (0.39)
Limit mm (in.) 5.5 (0.22)
Commutator outside diameter
std. mm (in.) 22.0 (0.87)
Limit mm (in.) 21.0 (0.83)
Failed item Code Lamp flashing pattern
Fail-safe system
activating
MAP sensor 1 3 – 4 YES
Cylinder temp. sensor 1 – 4 YES
IAT sensor 2 – 3 YES
CKP sensor 4 – 2 NO
CMP sensor 2 – 4 NO
Air intake system 2 – 2 YES
MAP sensor 2 3 – 2 NO
Exhaust manifold temp. sensor 1 – 5 YES
Fuel injector 4 – 3 NO
Throttle position sensor 2 – 1 YES
Shift position sensor 1 – 2 YES
Neutral switch 3 – 3 NO
1
0
MCODE00D34-0-01
1
0
MCODE00D14-0-01
1
0
MCODE00D23-0-01
1
0
MCODE00D42-0-01
1
0
MCODE00D24-0-01
1
0
MCODE00D22-0-01
1
0
MCODE00D32-0-01
1
0
MCODE00D15-0-01
1
0
MCODE00D43-0-01
1
0
MCODE00D21-0-01
1
0
MCODE00D12-0-01
1
0
MCODE00D33-0-01
