2B-6 Power Trim and Tilt:
Manual Release Circuit (Manual Valve)
Turn the manual valve a maximum of three full turns counterclockwise.
When the manual release valve (1) is loosened, oil will flow unimpeded (without resistance) through the internal pump
tubes, thereby facilitating manual tilting or lowering of the outboard. To hold the engine in a selected position, the
manual valve must be closed again.

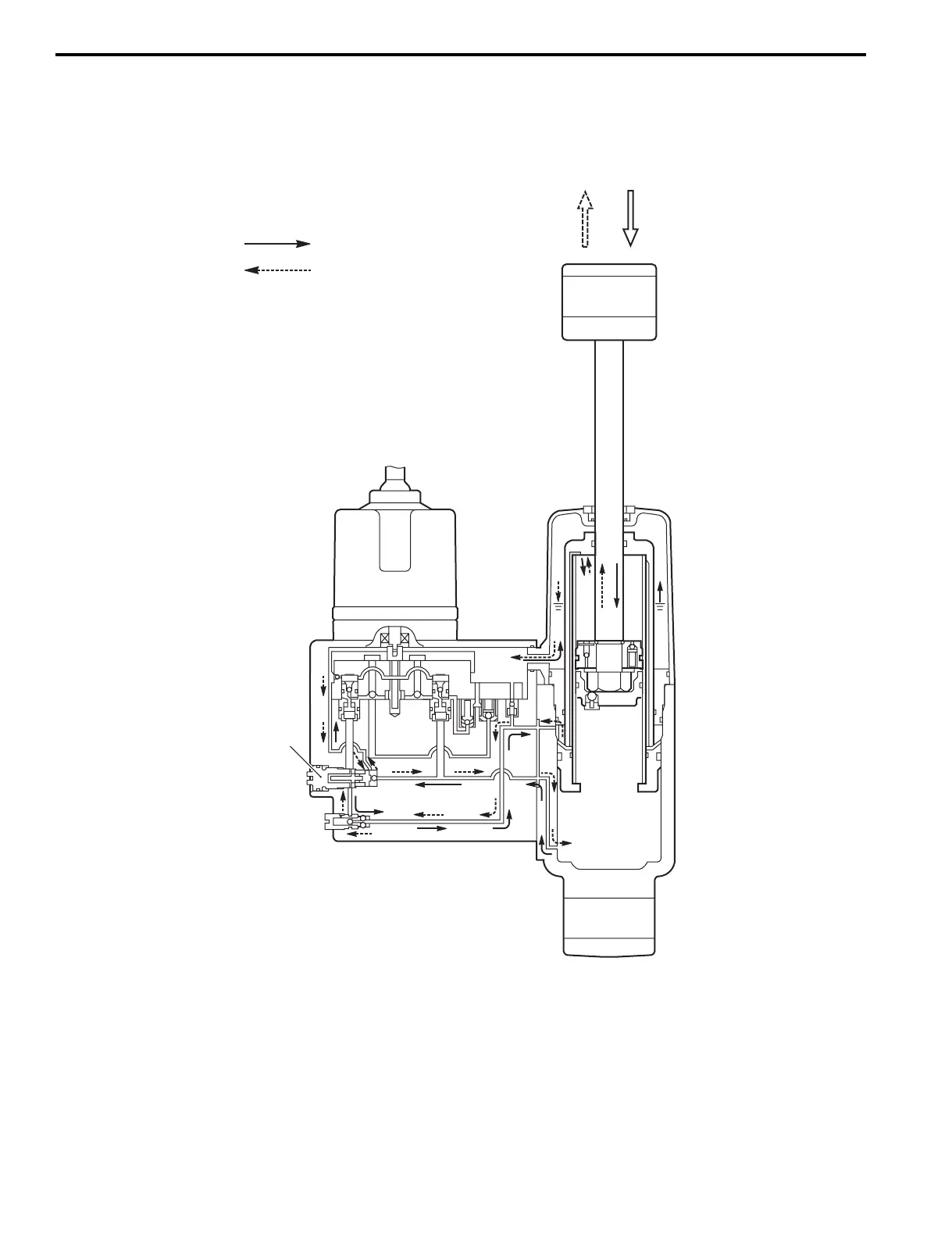

: Tilt “DOWN”
: Tilt “UP”
1
I9J011220005-02
