Suzuki DF70A - Page 297

Right Hand Rotation Unit: 3A-3
17
18
13
14
15
27
29
31
32
34
35
35
36
37
19
19
20
20
21
24
23
25
26
22
28
30
16
32
(b)
33
(b)
33
(a)
6
3
5
4
2
1
7
8
9
10
10
11
12
38
39
40
41
42
44
(c)
43

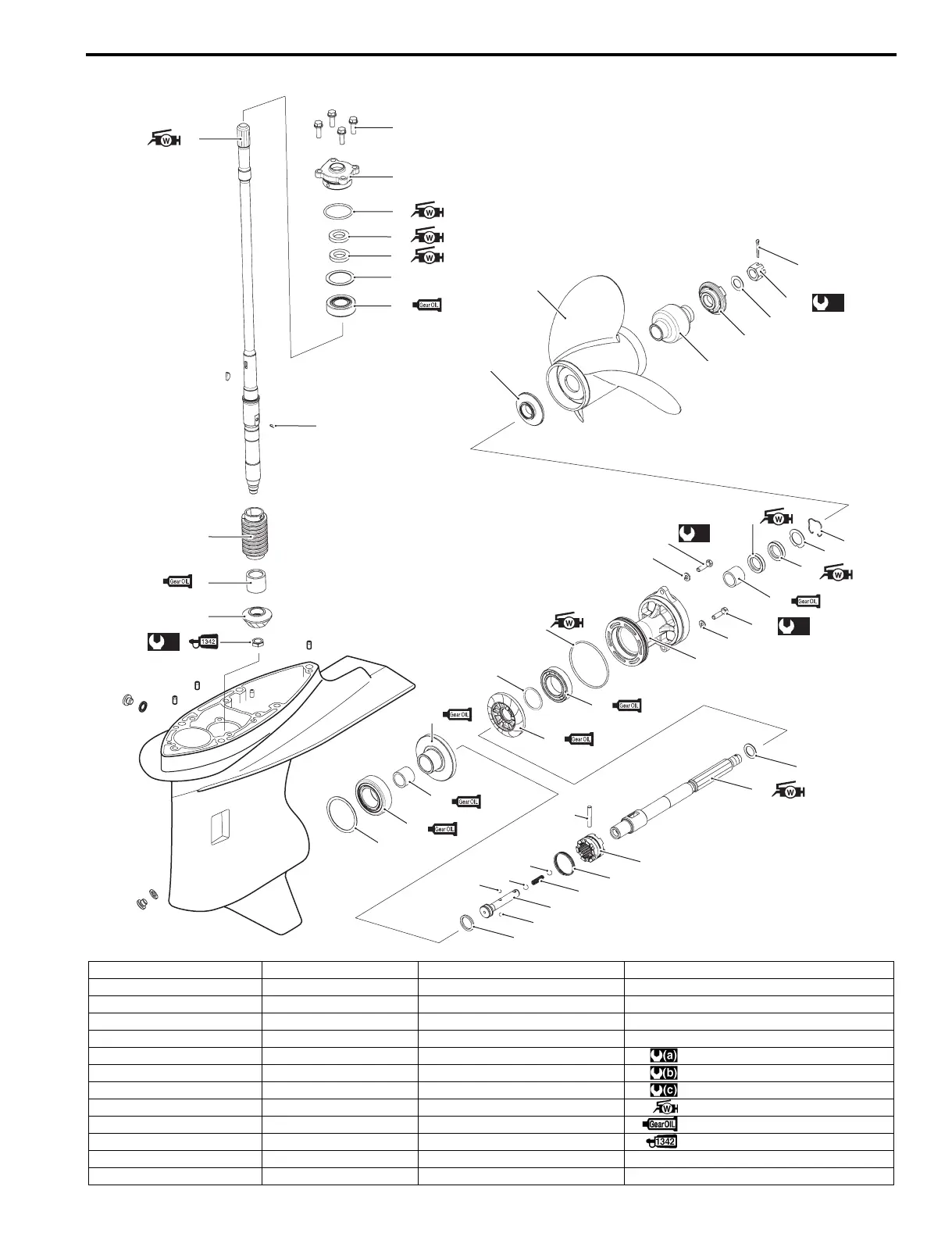

I9J011310020-03
1. Driveshaft 14. Forward gear bearing 27. Reverse gear 40. Propeller bush
2. Pin 15. Bearing 28. Shim 41. Spacer
3. Driveshaft collar 16. Forward gear 29. Bearing 42. Washer
4. Pinion bearing 17. Thrust washer 30. O-ring 43. Nut
5. Pinion gear 18. Connector pin 31. Propeller shaft bearing housing 44. Pin
6. Pinion nut 19. Small detent ball 32. Washer : 120 N⋅m (12 kgf-m, 86.8 lbf-ft)
7. Bolt 20. Large detent ball 33. Bolt : 23 N⋅m (2.3 kgf-m, 16.6 lbf-ft)
8. Driveshaft oil seal housing 21. Spring 34. Bearing : 55 N⋅m (5.5 kgf-m, 40 lbf-ft)
9. O-ring 22. Dog spring 35. Oil seal : Apply SUZUKI Water Resistant Grease.
10. Oil seal 23. Clutch dog shifter 36. Protector : Apply SUZUKI Outboard Motor Gear Oil.
11. Shim 24. Dog pin 37. Ring : Apply SUZUKI Thread Lock 1342.
12. Driveshaft bearing 25. Propeller shaft 38. Stopper
13. Shim 26. Thrust washer 39. Propeller
