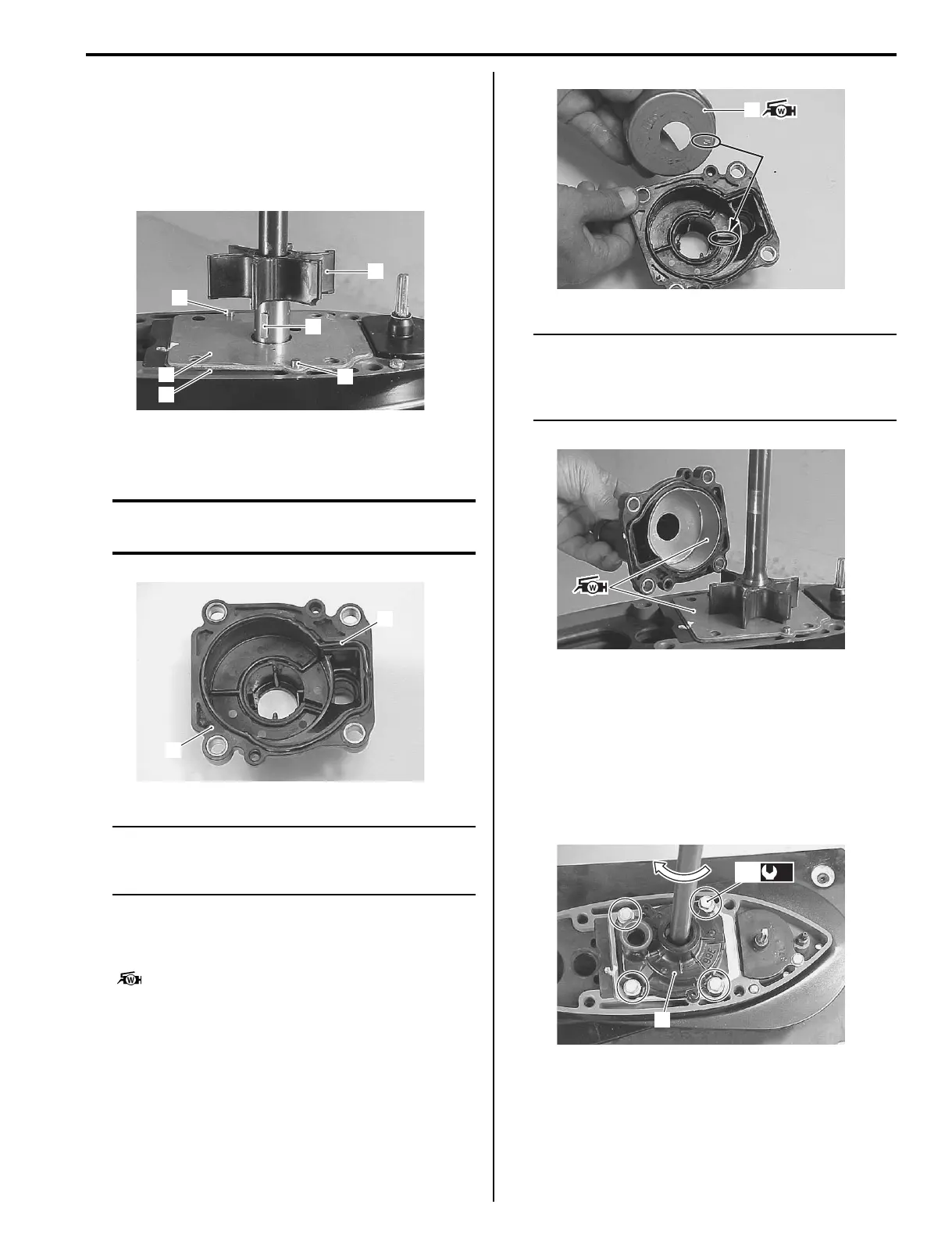

Right Hand Rotation Unit: 3A-7
Installation
1) Place the dowel pins (1), under panel gasket (2) and
under panel (3) into position.
2) Insert the key (4) in the driveshaft and slide the
impeller (5) onto driveshaft, ensuring that key and
keyway is aligned.
3) Place the seal ring (7) into groove of the pump case
(6).
CAUTION
Do not reuse seal ring once removed.
Always use new ring.
NOTE
Before installing pump inner sleeve, apply
water resistant grease lightly between inner
sleeve and pump case mating surfaces.
4) Install inner sleeve (8) into the pump case, ensuring
that projection of inner sleeve and groove of pump
case are aligned.
: Grease 99000–25161 (SUZUKI Water
Resistant Grease (250 g))
NOTE
Before installing water pump case assembly,
apply water resistant grease lightly on pump
case inner sleeve and under panel for initial
lubrication.
5) Install the pump case assembly (9) while rotating
driveshaft clockwise to flex the impeller vanes in the
correct direction.
Securely tighten the four pump case bolts (10) to the
specified torque.
Tightening torque
Water pump case bolt (a): 17 N·m (1.7 kgf-m,
12.3 lbf-ft)
1
1
2
3
5
4
I9J011310031-01
6
7
I9J011310032-01
8
I9J011310033-01
I9J011310034-01
(a)
10
9
I9J011310035-01
To Next Page
