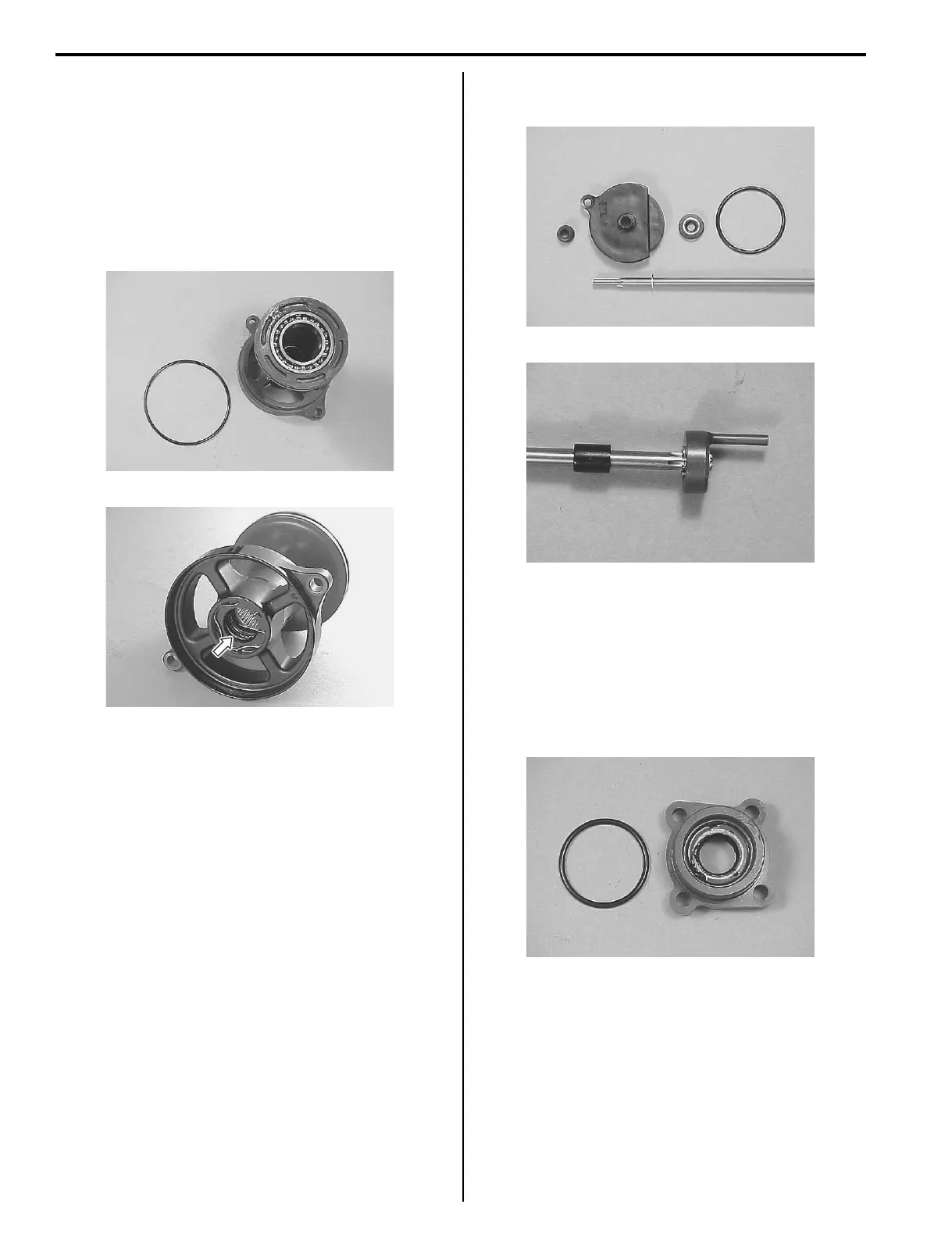

3A-14 Right Hand Rotation Unit:
Propeller Shaft Bearing Housing
• Inspect housing. Replace if cracked, damaged or
other abnormal conditions are noted.
• Inspect reverse gear bearing and propeller shaft
bearing. Replace bearing if pitted, noisy, rough or
other abnormal conditions are noted.
• Check condition of oil seal and O-ring. Replace oil
seal and O-ring if nicked, cut, worn or other abnormal
conditions are noted.
Shift Rod Guide Housing Components
• Inspect shift rod guide housing.
Replace if cracked, damaged or other abnormal
conditions are noted.
• Inspect shifter yoke. Replace if worn, damaged or
other abnormal conditions are noted.
• Inspect shift rod / splines. Replace if worn, twisted,
damaged or other abnormal conditions are noted.
• Inspect O-ring. Replace if nicked, cut, torn, swollen or
other abnormal conditions are noted.
• Inspect oil seal and oil seal cover. Replace if nicked,
cut, worn or other abnormal conditions are noted.
Driveshaft Oil Seal Housing
• Inspect housing. Replace if cracked, damaged or
other abnormal conditions are noted.
• Check condition of oil seals. Replace if nicked, cut,
worn or other abnormal conditions are noted.
• Inspect O-ring. Replace if worn, nicked, cut or other
abnormal conditions are noted.
I9J011310063-01
I9J011310064-01
I9J011310065-01
I9J011310066-01
I9J011310067-01
