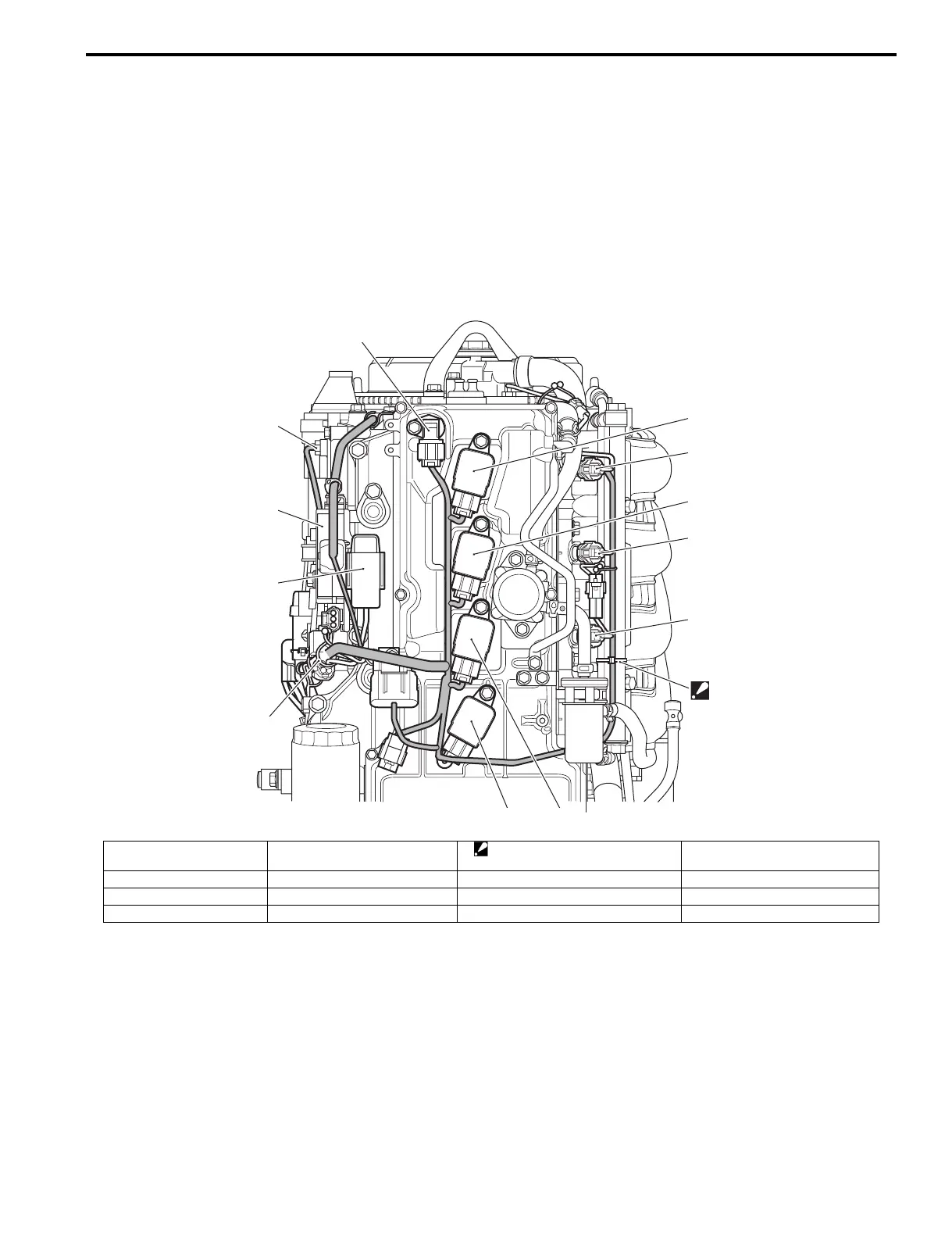

Wire Routing: 4A-7
1
2
3
5
6
7
8
10
4
11
12
13
9
I9J011410006-02
1. CMP sensor 5. No.4 Ign. coil 9. Clamp
: Fix the harness with clamp.
13. Ex. mani. temp. sensor
2. No.1 Ign. coil 6. No.1 fuel injector 10. Clamp
3. No.2 Ign. coil 7. No.2 fuel injector 11. Main harness capacitor
4. No.3 Ign. coil 8. No.3 fuel injector 12. Rectifier/Regulator
To Next Page
