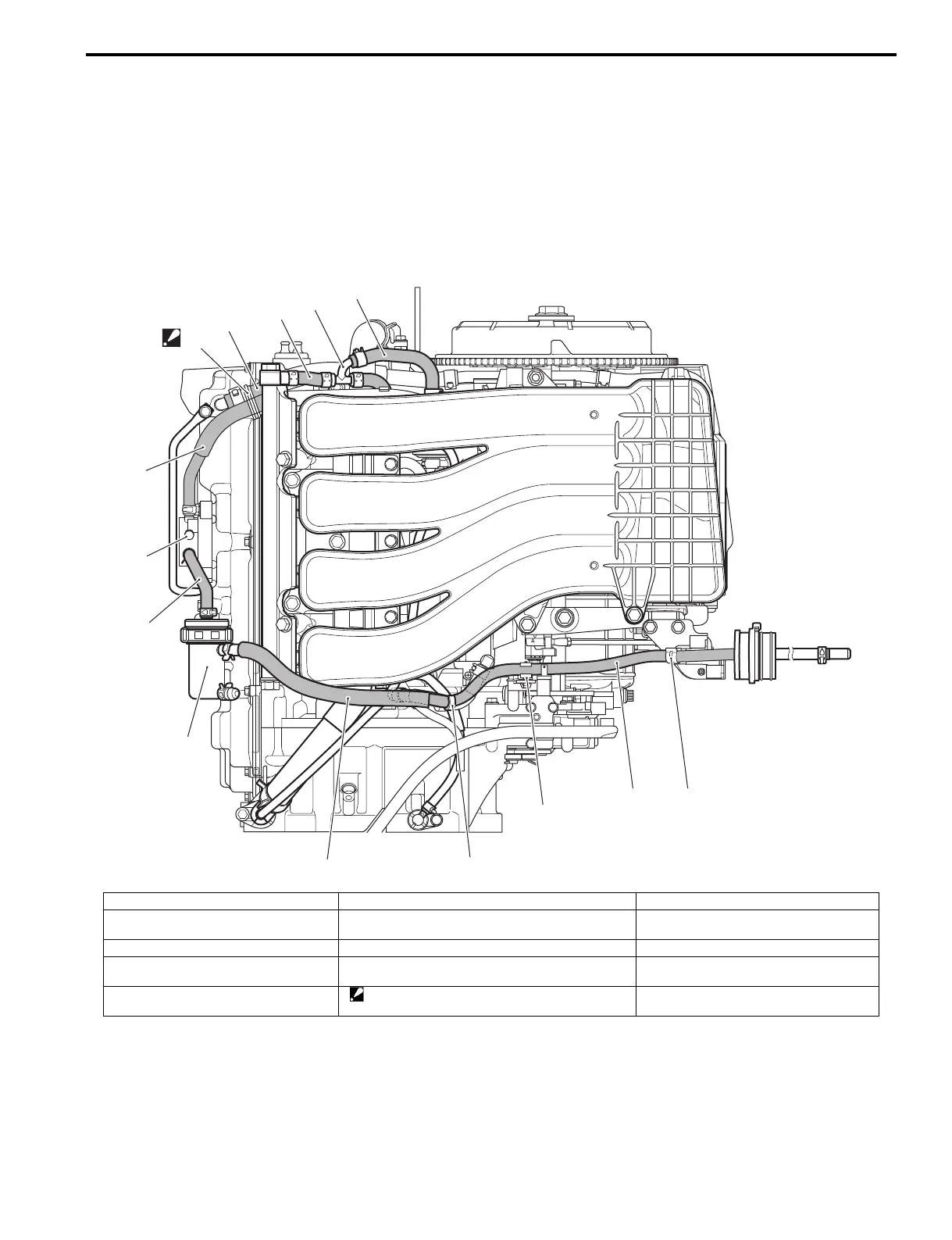

Fuel / Water Hose Routing: 4B-2
12
3
5
4
6
7
8
9
11
12
13
14
10
I9J011420002-02
1. Clamp 6. Low pressure fuel filter 11. Breather hose
2. Fuel hose (Joint to low pressure fuel
filter)
7. Fuel hose (Filter to fuel pump) 12. Fuel hose (3-way joint to fuel delivery
pipe)
3. Clamp 8. Low pressure fuel pump 13. 3-way joint
4. Clamp 9. Fuel hose / protector (Fuel pump to fuel vapor
separator)
14. Fuel hose (High pressure fuel filter to 3-
way joint)
5. Fuel hose protector 10. Clamp
: Clamp the fuel hose (9) and breather hose (11).
