CHAPTER 3 Design and Function
Sysmex XE-5000 Instructions for Use 3-5
Revised April 2007

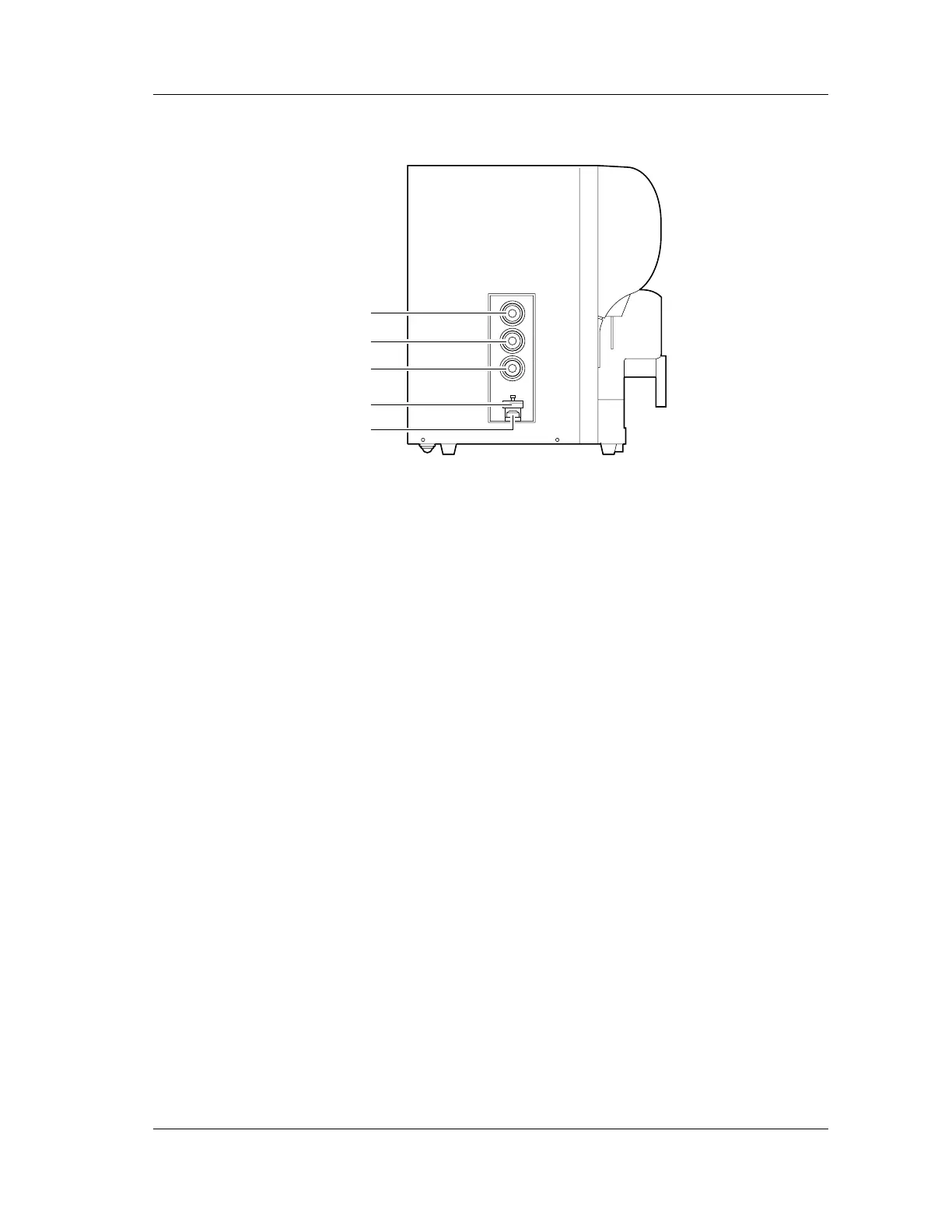

Left Side View
1 0.16 MPa regulator
Adjusts the pressure to 0.16 MPa.
2 0.07 MPa regulator
Adjusts the pressure to 0.07 MPa.
3 0.03 MPa regulator
Adjusts the pressure to 0.03 MPa.
4 Air filter
Prevents dust from entering the bellows unit.
5 Bellows Unit
Adjusts the bellows pressure to -0.04 MPa.
1
2
3
4
5
