CHAPTER 3 Design and Function
3-8 Sysmex XE-5000 Instructions for Use
Revised April 2007

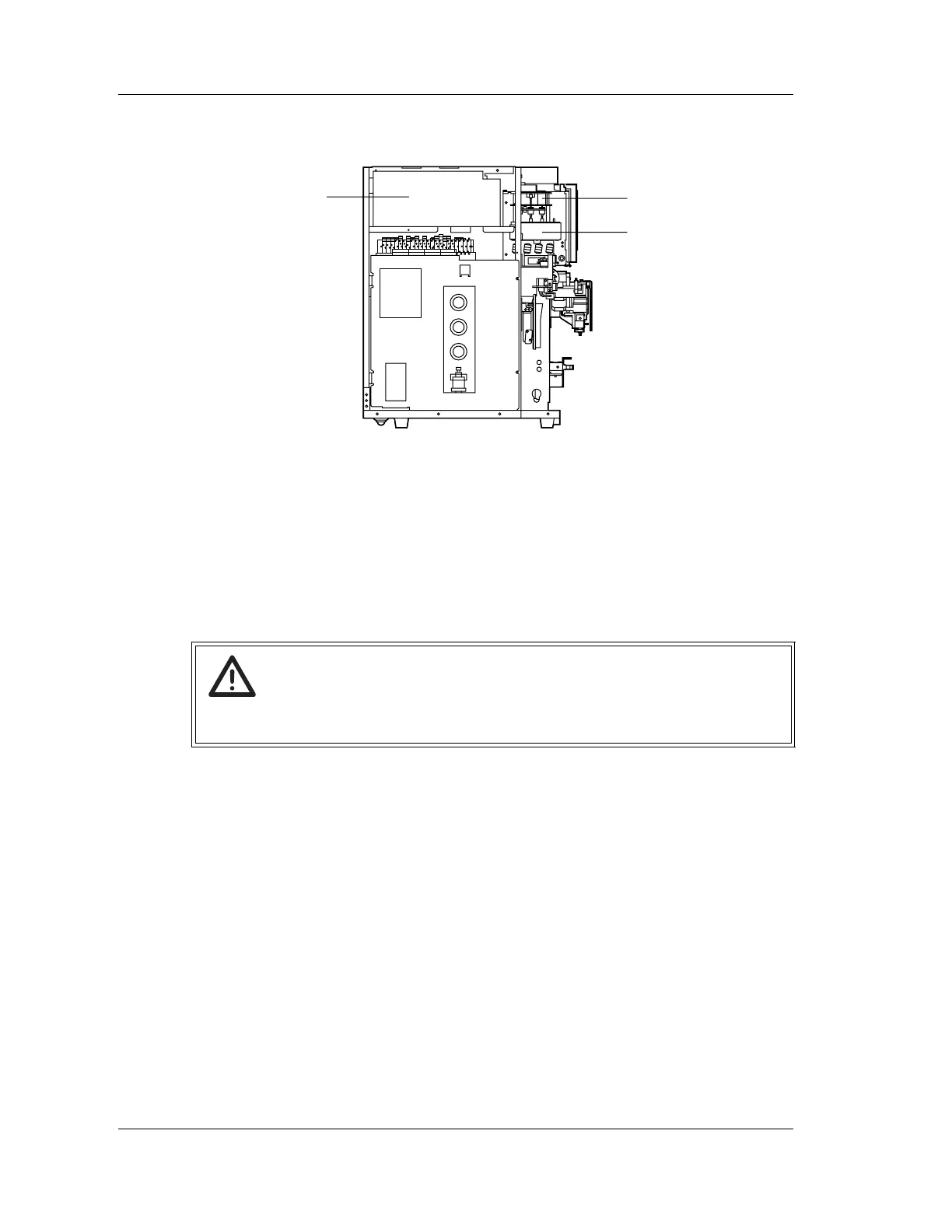

Left Interior
1 WBC detector block
Includes the WBC detector.
2 Reaction chamber mixing motor
Mixes a diluted sample for analyzing WBC/BASO, 4DIFF, NRBC and RET.
3 Reaction chamber
Prepares a diluted sample for analyzing WBC/BASO, 4DIFF, NRBC and RET. The
sample is retained at a constant temperature for a certain period of time, and sent to the
optical detector block.
Caution!
Do not open the left cover unless the instruction is given by your Sysmex technical
representative.
3
2
1
