Printer Part Names and Functions
64
3
Basic Printer Operation

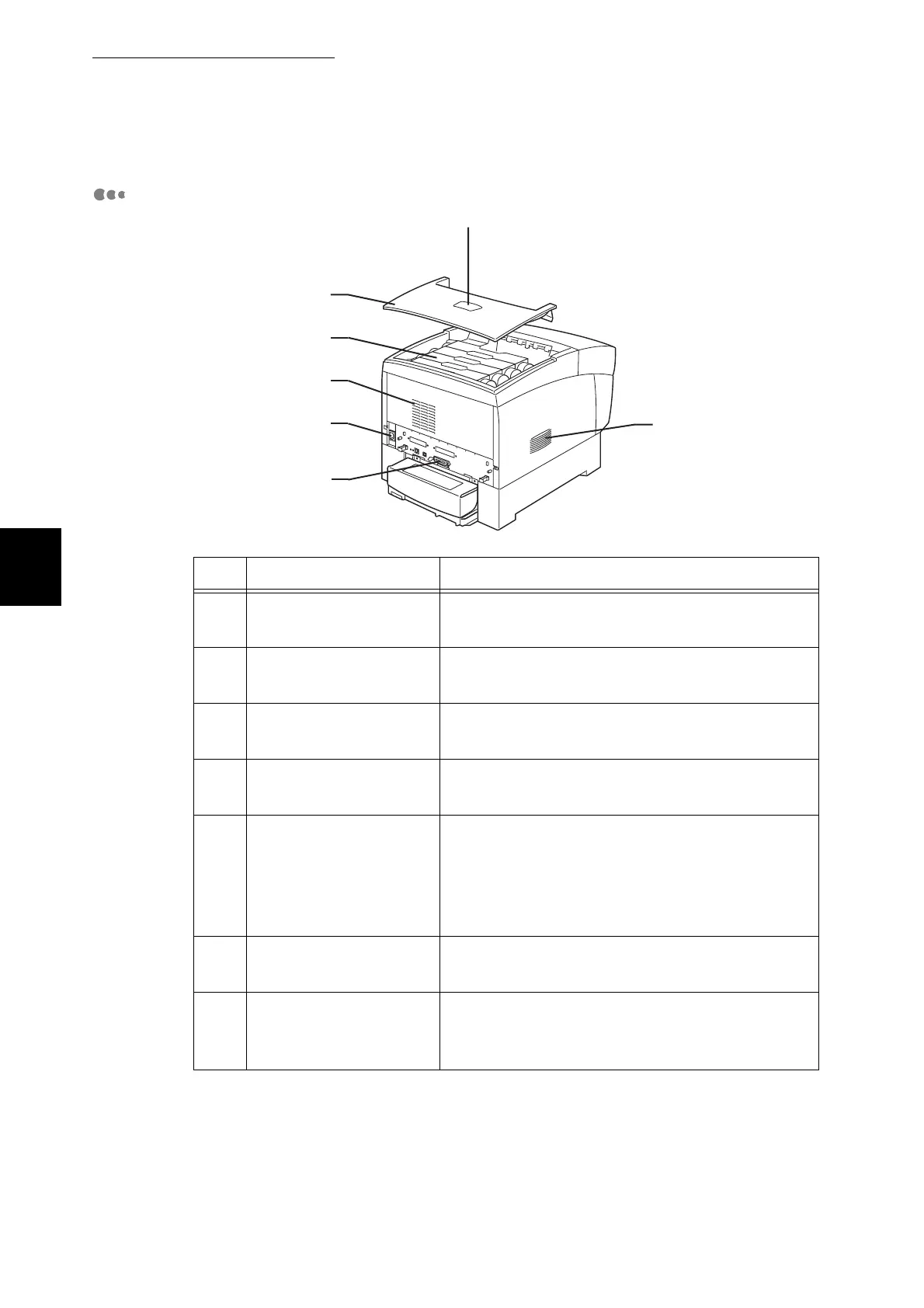

Rear View
No. Name Description
12 Interface Connector Connect the printer to your computer or
network here.
13 Power Cord
Connector
Connect the power cord here.
14 Exhaust Grille Allows internal heat to dissipate. Make sure
the grille is never obstructed.
15 Toner Cartridges The black, yellow, magenta, and cyan toner
cartridges are inserted here.
16 Top Cover
(face down tray)
Acts as the top cover and the face down
tray of the printer. Remove it to change the
toner cartridges. Printed documents are
output here, printed side down. Do not
operate the printer without the Top Cover.
17 Paper Stopper Use this stopper in raised state if the output
sheet falls.
18 Air Intake Grill Allows air to enter the printer to prevent it
from overheating. Make sure the grill is
never obstructed.
12
13
18
14
15
16
17
