Printer Part Names and Functions
65
3
Basic Printer Operation

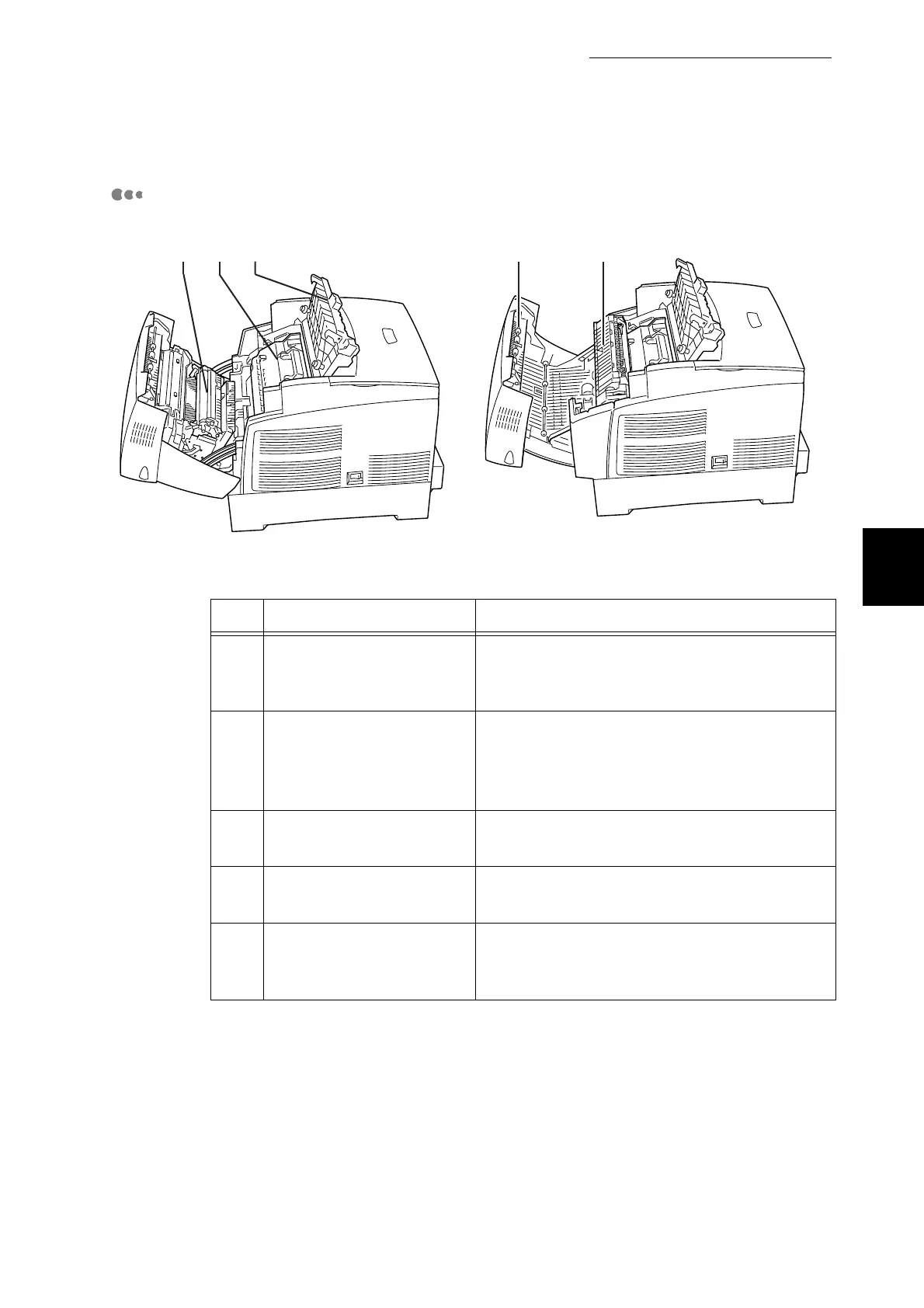

Internal View
<Cover open with button A> < Cover open with button B >
No. Name Description
19 Transfer Roller Transfers the image created on the drum
surface to the paper, and collects used
toner.
20 Drum Cartridge Consists of the light-sensitive drum, the
developer and the transfer roller. Images
are initially created as an electrical
charge on the surface of this drum.
21 Paper Outlet Cover Open to replace the drum cartridge and
fuser unit.
22 Duplexer With duplex printing, it turns the paper
over after the front surface is printed.
23 Fuser Unit Fuses the toner to the paper with heat.
The fuser unit gets very hot during
printing. Do not touch it to avoid burns.
19 20 21
22 23
