TMS320F2837xD Microcontroller Workshop
iv TMS320F2837xD Microcontroller Workshop - Introduction
Required Workshop Materials
Required Workshop Materials
 http://processors.wiki.ti.com/index.php/
C2000_Multi-Day_Workshop
 F28379D LaunchPad (LAUNCHXL-F28379D)
 Install Code Composer Studio v7.3.0
 Run the workshop installer
F2837xD Microcontroller Workshop-2.0-Setup.exe
Lab Files / Solution Files
Workshop Manual

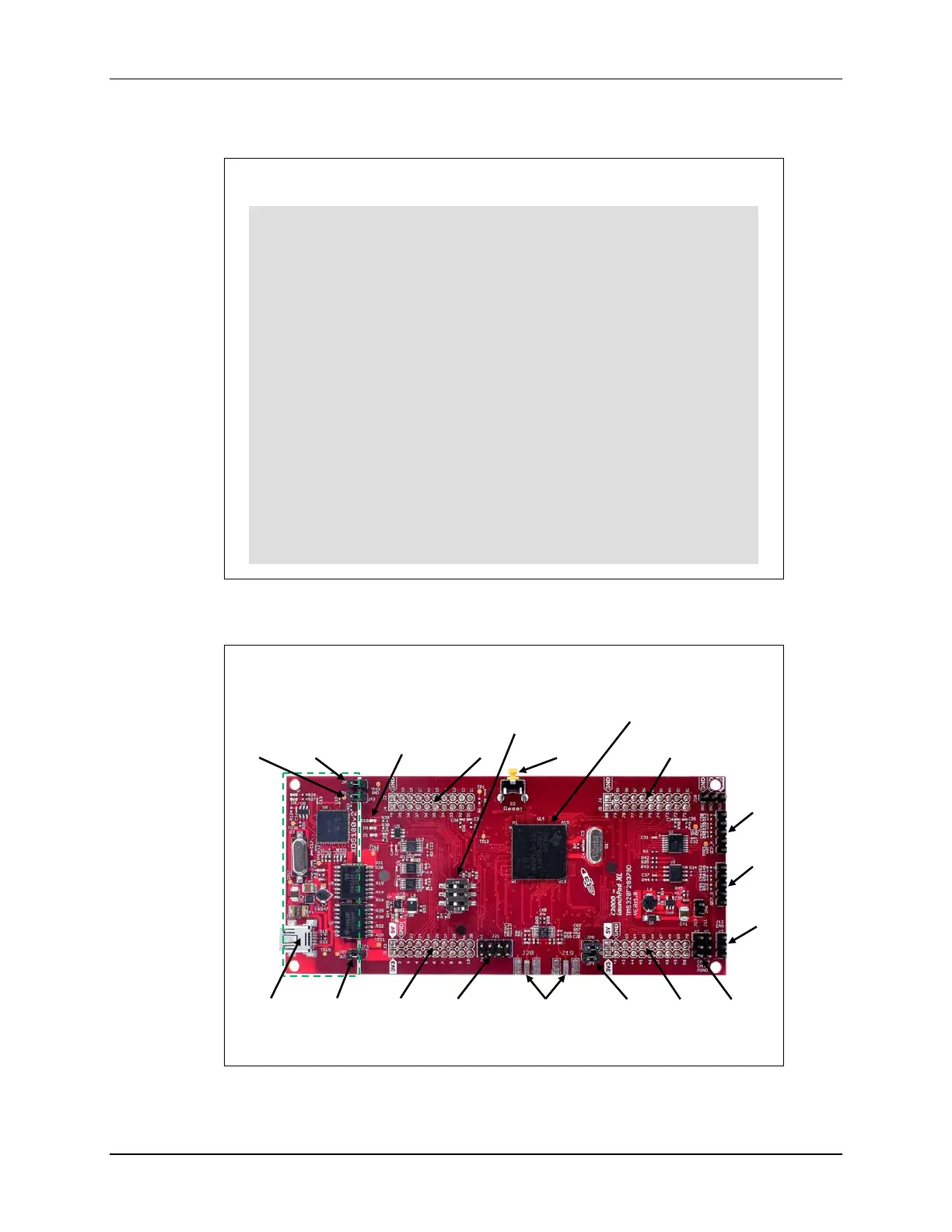

Development Tools
F28379D LaunchPad
Note: F28379D – 337 pin package
XDS100v2
emulation circuitry
CON1: USB
emulation/
UART
JP2: GND
from USB
(disables
isolation)
JP1: 3.3V
from USB
(disables
isolation)
J2/J4 *
* = BoosterPack plug-in module connector
TMS320F28379D
J1/J3 *
J5/J7 *
J6/J8 *
JP4/JP5
(connects
3.3V/5V
to J5/J7)
S1: Boot
Modes
S3: Reset
D10: GPIO31 (blue)
D9: GPIO34 (red)
D1: Power (green)
J12:
CAN
J14:
QEP_A
J15:
QEP_B
J21
(ADC-D
differential
pair inputs)
J20/J19
(Optional SMA
connector point)
JP3: 5V
from USB
(disables
isolation)
J13/J11
I2C
