5-8 4262930-Rev A
POWER TRAIN
5
Component Inspection

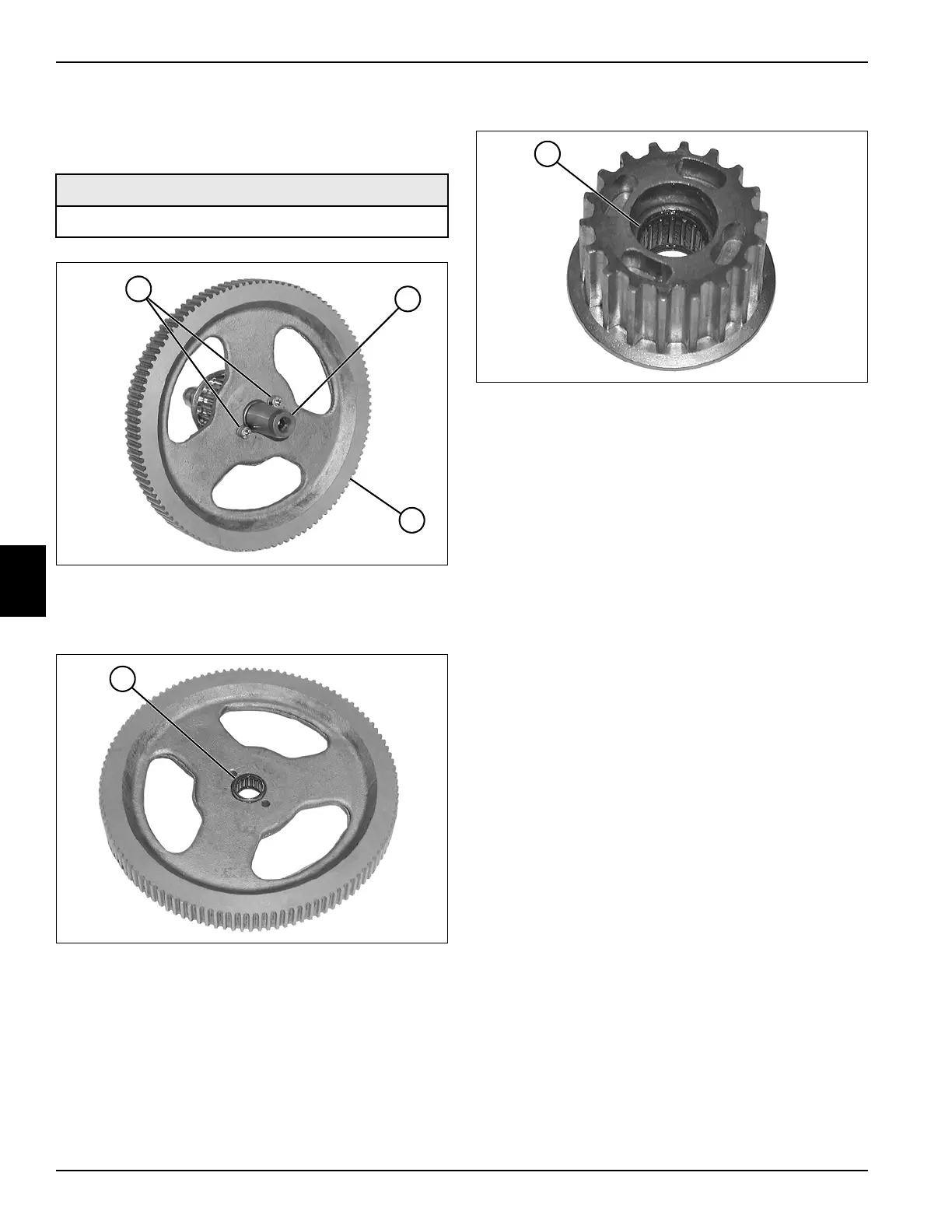

See Figures 5-9 through 5-11.
Outer Transfer Pulley
Figure 5-9
1. Remove screws (1) and slide shaft (2) out of outer
transfer drive pulley (3).
Figure 5-10
2. Inspect the needle bearing (4) for signs of wear or
damage. Replace as needed.
3. Lubricate the bearings with Lubriplate
®
Marine
Grease before installing the pulley on shaft.
Inner Transfer Pulley
Figure 5-11
4. Inspect the needle bearing (5) for signs of wear or
damage. Replace as needed.
5. Lubricate the bearing with Lubriplate
®
Marine
Grease before installing the pulley on shaft.
Required Materials
Lubriplate
®
Marine Grease
TN0667
1
2
3
4
TN0668
5
TN0180
