POWER TRAIN
4262930-Rev A 5-9
5
Installation

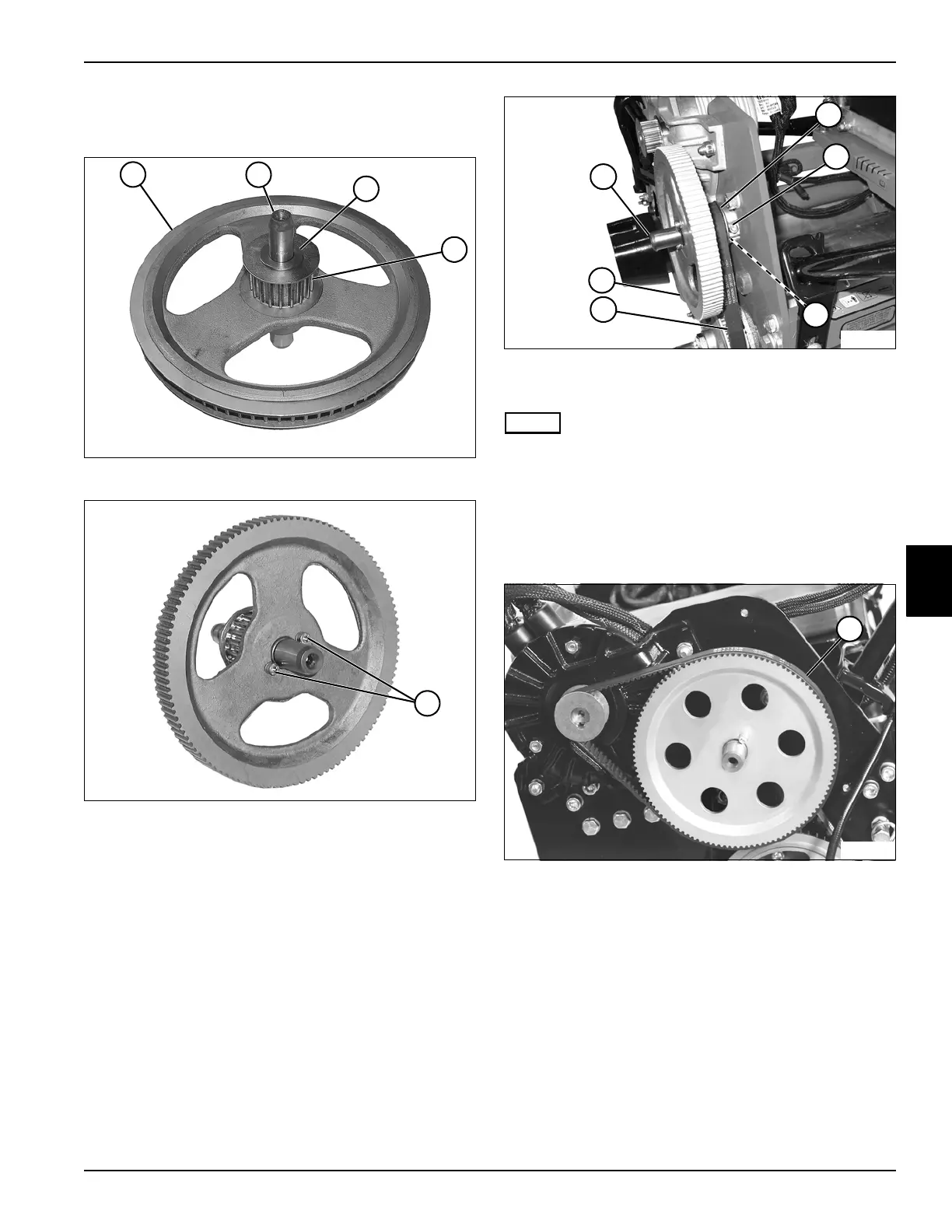

See Figures 5-12 through 5-15.
Figure 5-12
Figure 5-13
1. Assemble the outer transfer pulley (1), inner transfer
pulley (4), shims (3), and shaft (2), using screws (5).
Figure 5-14
2. Install traction drive (final drive) belt (10).
NOTE
Be sure to guide traction drive (final drive) belt (10) over
inner transfer pulley (7) while installing transfer
pulley/shaft assembly.
3. Install shims (9), inner transfer pulley (7), outer
transfer pulley (11), and shaft (6) as an assembly.
4. Tighten screw (8).
Figure 5-15
5. Install traction drive (transfer) belt (12).
6. Adjust the belt tension. (See “Traction Drive Belt
Tension Check and Adjustment” on page 5-5.)
7. Install traction drive belt cover. (See “Traction Drive
Belt Cover” on page 5-7.)
8. Install left-side hub and bearing. (See “Wheel Hubs
and Bearings” on page 9-3.)
1
TN0176
2
3
4
TN0667
5
TN0817
6
8
11
10
7
9
TN4639
12
