Specifications
Repair
Transport Wheels (Optional)
Removal and Installation

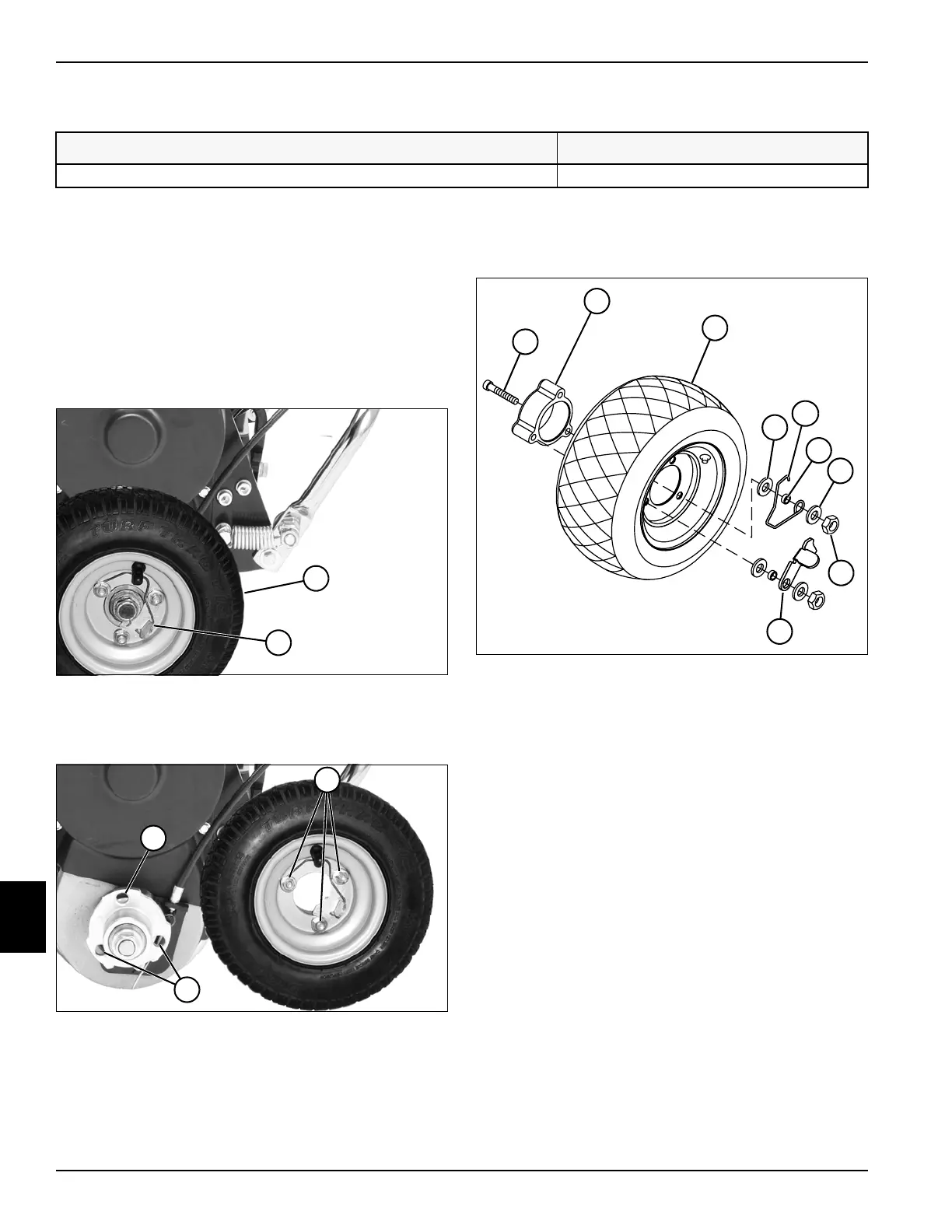

See Figures 9-1 and 9-2.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
Figure 9-1
2. To Remove Wheels: Pull the retaining clip (2) away
from the hub and pull wheel (1) off hub.
Figure 9-2
3. To Install Wheels: Set the park brake, pull the
retaining clip back and hold. Place the wheel on the
hub and turn the wheel backwards until studs (4) on
the rear of wheel line up with holes in the hub (3).
Push the wheel in and release the retaining clip.
Disassembly and Assembly
See Figure 9-3.
Figure 9-3
Transport Tires
Transport Tire Air Pressure psi (kPa) 6–8 (41–55)
1
TN4406
2
TN4405
3
3
4
1Screw (3)
2Spacer
3 Wheel and Tire Assembly
4Flat Washer (6)
5Spring
6 Spacer (3)
7 Lock Nut
8 Latch
1
TN0028
2
3
4
5
4
6
8
7
