10-6 4262930-Rev A
ACCESSORIES
10
Belt Adjustment

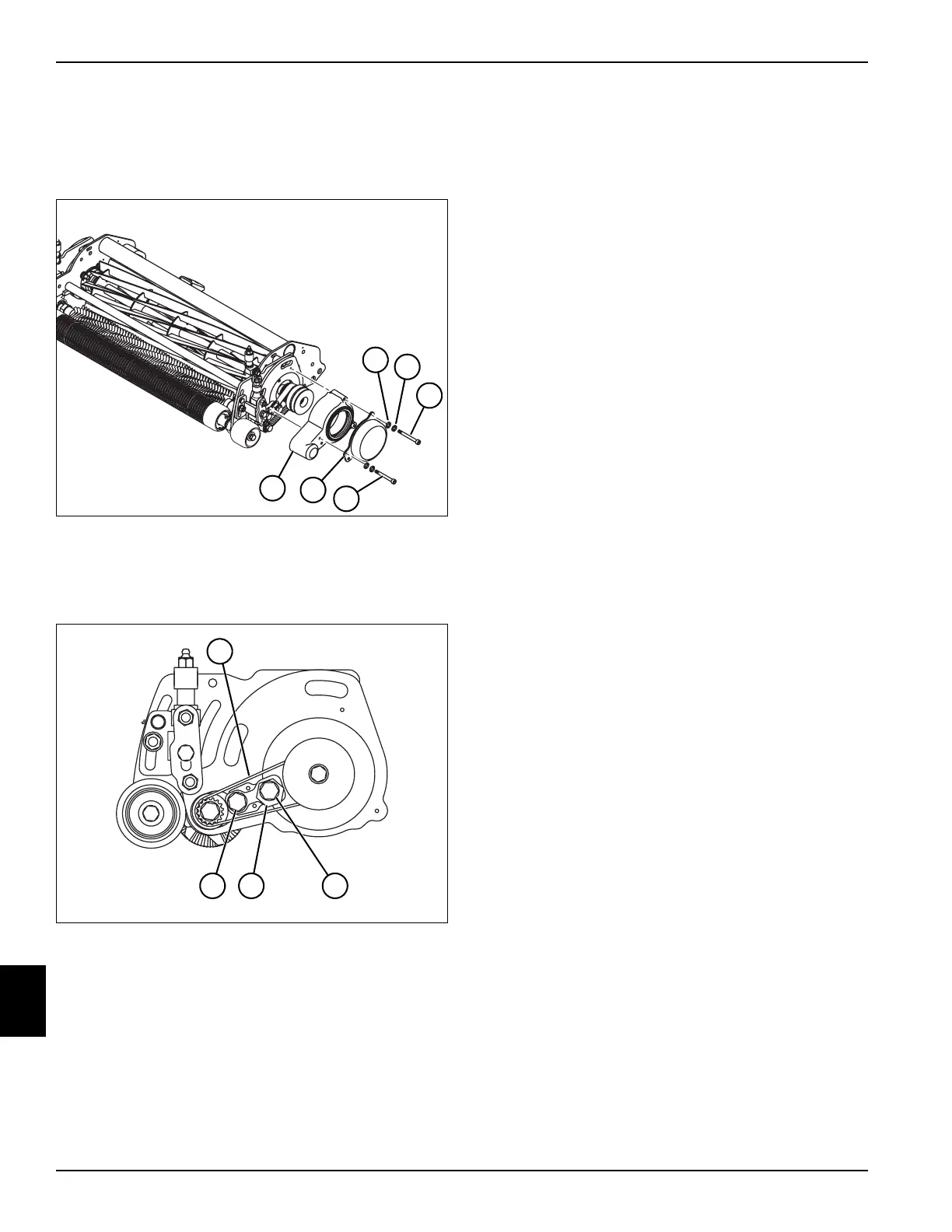

See Figures 10-5 and 10-6.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
Figure 10-5
2. Remove two screws (3), two screws (4), four lock
washers (2), four flat washers (1), and remove pulley
cover (5) and groomer cover (6).
Figure 10-6
3. Loosen eccentric mounting screw (8) and belt
tension link mounting screw (10).
4. Using a socket, turn eccentric (9) by hand until belt
(7) is tight.
5. Tighten eccentric mounting screw (8) to 8–10 lb-ft
(10.8–13.6 N·m).
6. Tighten belt tension link mounting screw (10) to 20
lb-ft (27.1 N·m).
7. Install groomer cover (6), pulley cover (5), four flat
washers (1), four lock washers (2), two screws (4),
and two screws (3).
3
TN4539
2
1
5
6
4
8
TN4535
10 9
7
