4-100 4203780 First Edition
ELECTRICAL
4
Diff Lock Switch
Removal and Installation

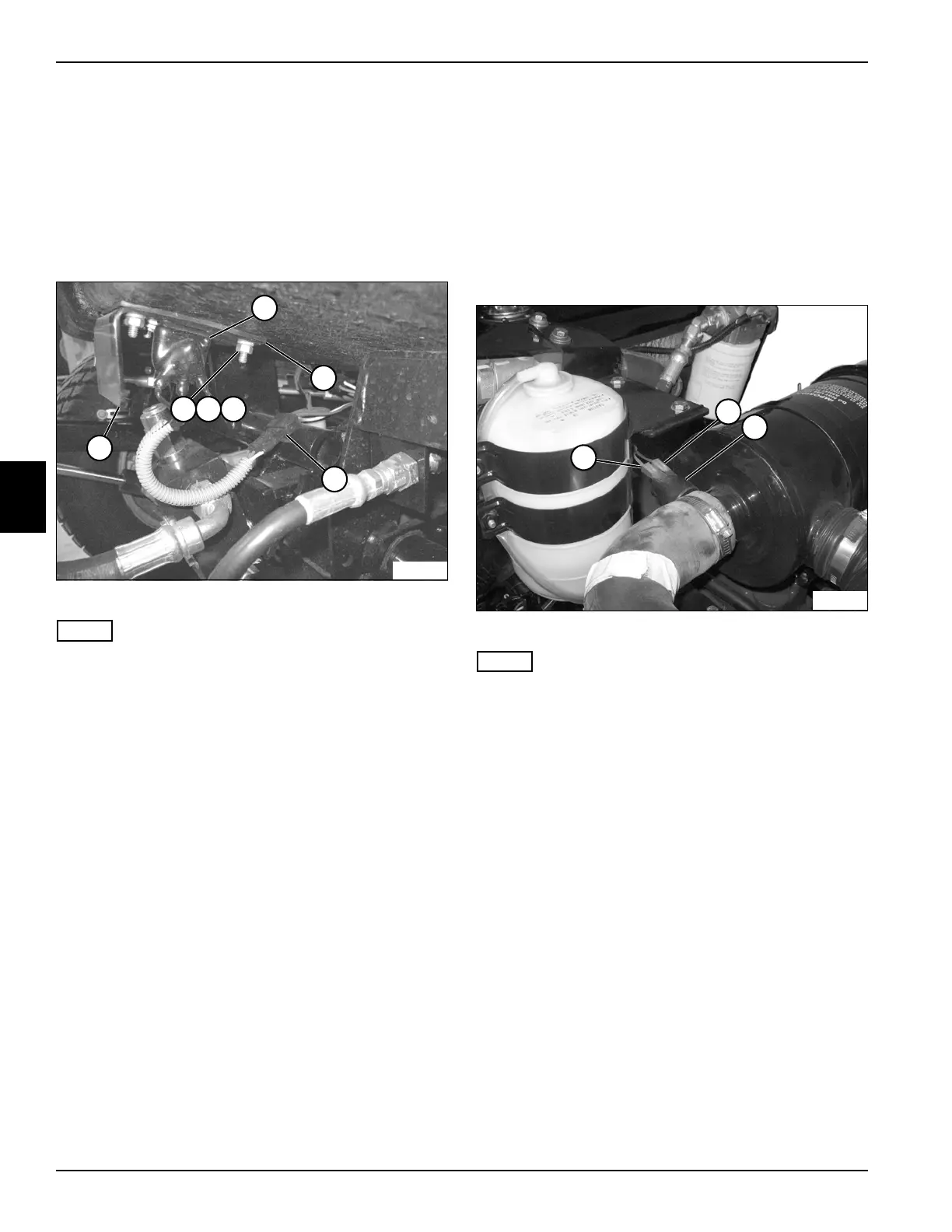

See Figure 4-101.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
Figure 4-101
NOTE
Label all wires before disconnecting to ensure correct
installation.
3. Disconnect wire connector (3).
4. Remove four nuts (5), lock washers (6), and screws
(7) from mounting plate (4).
5. Remove diff lock switch (1) and switch cover (2).
Installation Note
Install the diff lock switch by reversing the order of
removal.
Air Filter Pressure Switch
Removal and Installation
See Figure 4-102.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-102
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connectors (1 and 2).
5. Remove air filter pressure switch (3).
Installation Note
Install the air filter pressure switch by reversing the order
of removal.
TN1850
4
2
1
3
5 6 7
TN2027
2
1
3
