Textron Jacobsen HR-5111 User Manual

4-112 4203780 First Edition
ELECTRICAL
4
Tachometer
Removal and Installation

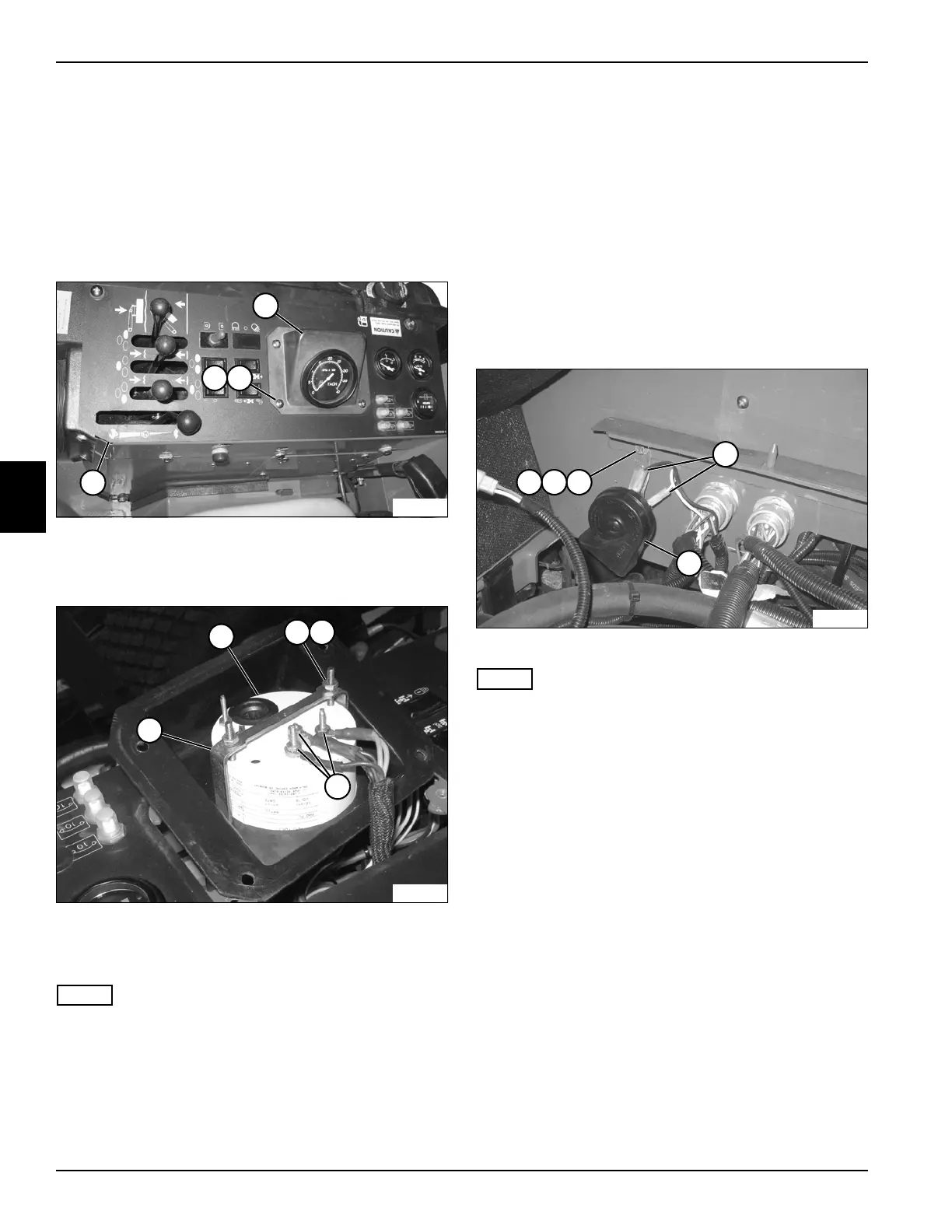

See Figures 4-128 and 4-129.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
Figure 4-128
3. Remove four screws (2), lock washers (3), and
tachometer cover (1) from instrument panel (4).
Figure 4-129
4. Remove two nuts (6), lock washers (7), and bracket
(9).
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Disconnect wire terminals (8).
6. Remove tachometer (5).
Installation Note
Install the tachometer by reversing the order of removal.
Horn
Removal and Installation
See Figure 4-130.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the battery negative (–) cable at the
battery.
3. Raise the seat.
Figure 4-130
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connectors (4).
5. Remove screw (1), lock washer (2), and flat washer
(3).
6. Remove horn (5).
Installation Notes
• Install the horn by reversing the order of removal.
• Horn must not touch any adjacent parts.
TN1990
1
2
4
3
TN2029
6
9
5
7
8
TN2040
3
5
4
21
