4-106 4203780 First Edition
ELECTRICAL
4
Removal and Installation
See Figure 4-113.
NOTE
The left mow solenoid is shown; all solenoids are
removed and installed the same way.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Locate correct deck valve.

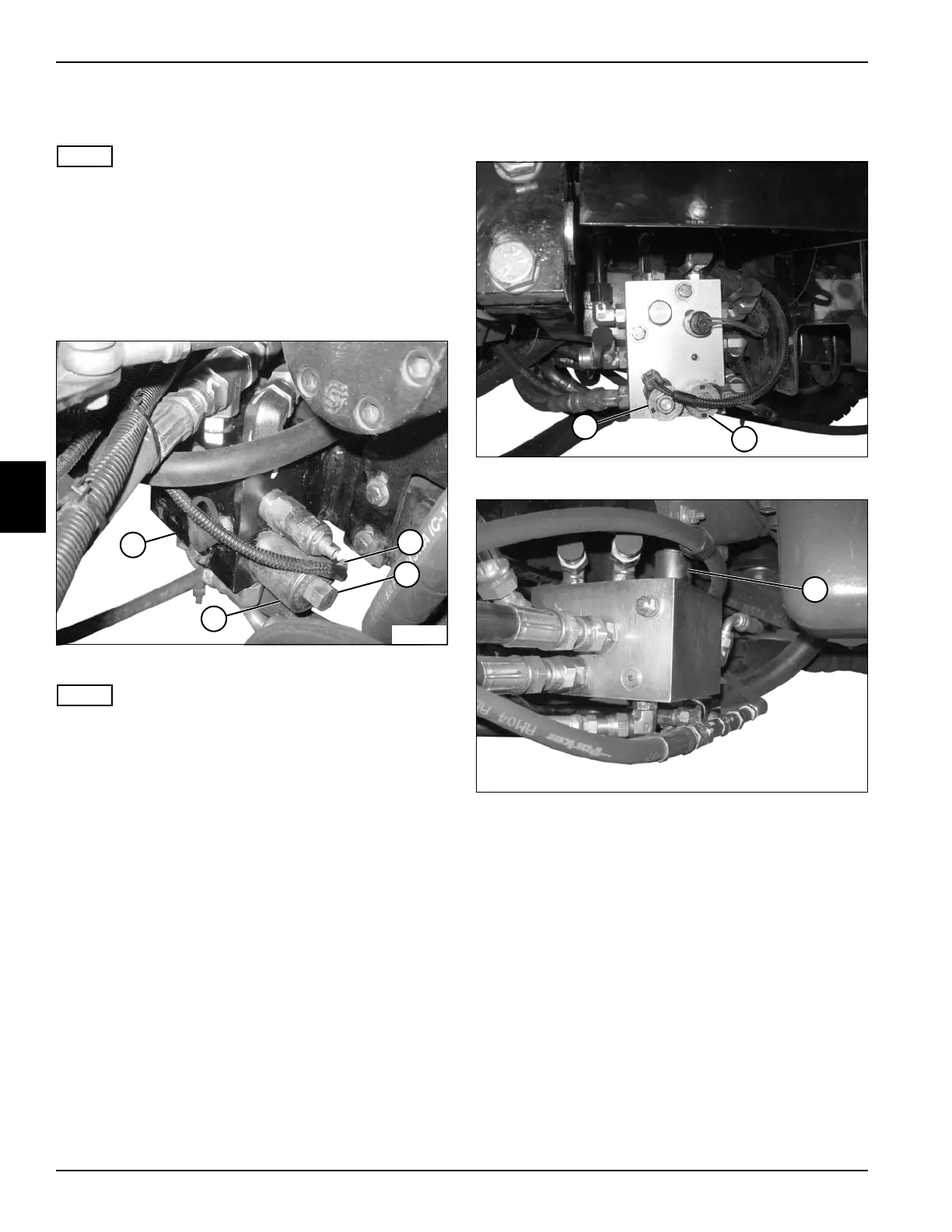

Figure 4-113
NOTE
Label connectors before disconnecting to ensure correct
installation.
4. Disconnect connector (4) from solenoid (6).
5. Remove nut (5) and solenoid (6) from the valve (7).
Installation Notes
• Clean cartridge of any debris or surface rust and
apply dielectric grease (Jacobsen PN 365422) to
cartridge before installation.
• Install the solenoid by reversing the order of removal.
• Tighten nut (5) to 5—7 lb-ft (6.8—9.5 N·m).
4WD Solenoids
See Figures 4-114 and 4-115.
Figure 4-114: 4WD Solenoid and Diff Lock Solenoid
Figure 4-115: 4WD Rev Solenoid
This procedure applies to the following solenoids:
• 4WD Solenoid (1)
• Diff Lock Solenoid (2)
• 4WD Reverse Solenoid (3)
The 4WD solenoid is located on the control valve.
The diff lock solenoid is located on the control valve.
The 4WD reverse solenoid is located on the 4WD valve.
TN1860
5
6
7
4
TN1921
2
1
TN1929
3
To Next Page
