Textron Jacobsen HR-5111 - Seat and Seat Platform

ACCESSORIES AND MISCELLANEOUS REPAIR
4203780 First Edition 9-13
9
Seat and Seat Platform
Removal and Installation
See Figures 9-17 and 9-18.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.

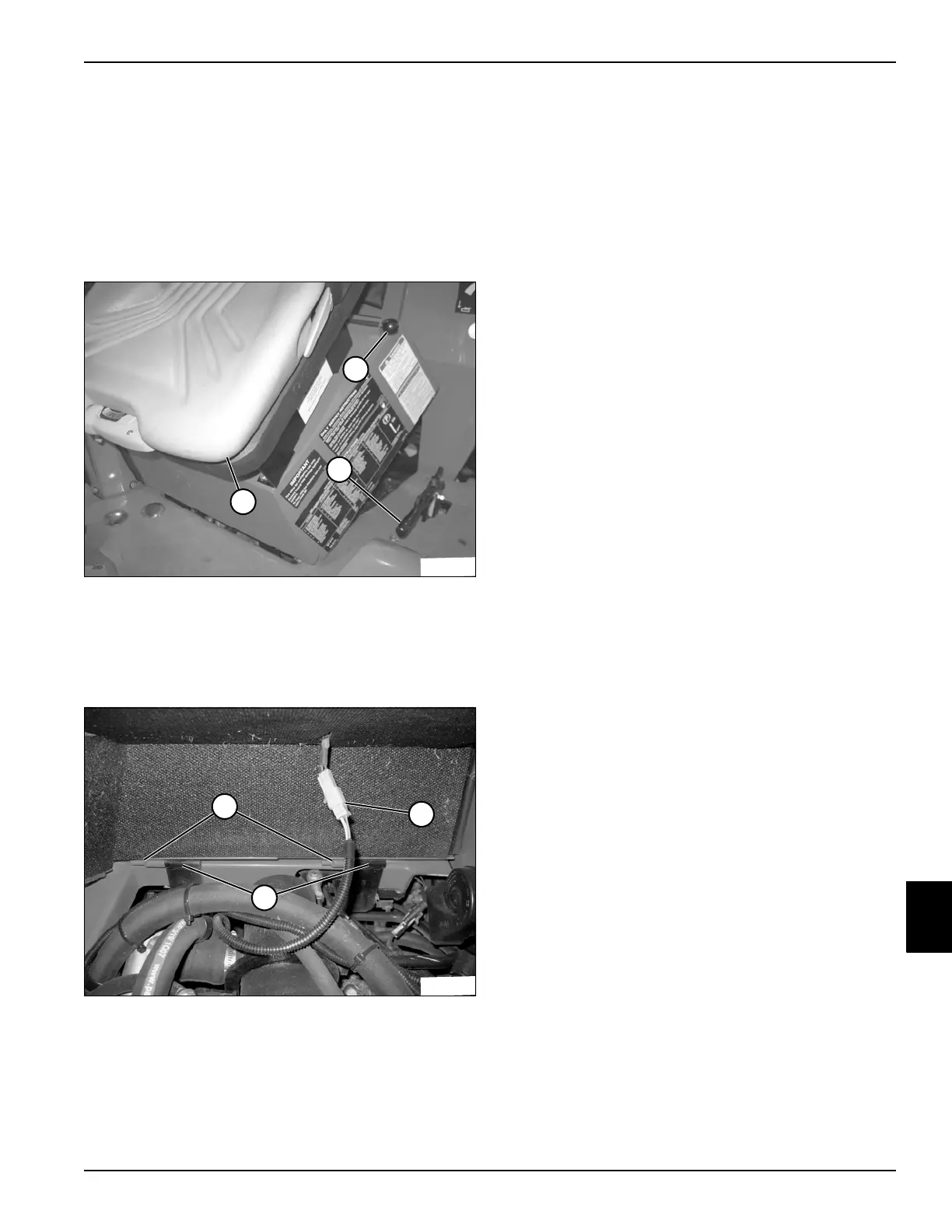

Figure 9-17
3. Rotate seat (1) upward and lock in place by engaging
rod (2).
4. Block front wheels and disengage park brake (3) to
allow clearance for seat removal.
Figure 9-18
5. Tag and disconnect the operator’s seat switch wire
harness connector (5).
6. Using a suitable lifting device, slide seat to the left
side of the mower to disengage the two pins (4) from
the two hinges (6), and remove seat and seat
platform from the mower.
Installation Notes
• Install the seat and seat platform by reversing the
order of removal.
• Carefully route and secure seat switch wire harness
to avoid damage from pinched wires.
