SPECIFICATIONS AND GENERAL INFORMATION
4203781 First Edition 2-3
2
Engine Serial Number
The engine serial number (6) is located on a plate
attached to the top of the rocker arm cover which also
includes the engine model number and the engine code
number. There is also an engine data tag (7) attached to
the top of the rocker arm cover and information that can
be found on the plate includes: valve adjustment
specifications, injector timing information, engine idle
speed and engine displacement.
Optional Machine Accessories
This manual is structured to cover all basic machine
components and repair. The addition of accessories can
affect certain troubleshooting, adjustment, and repair
procedures.
Component Location
See Figures 2-6 and 2-7.
!
CAUTION

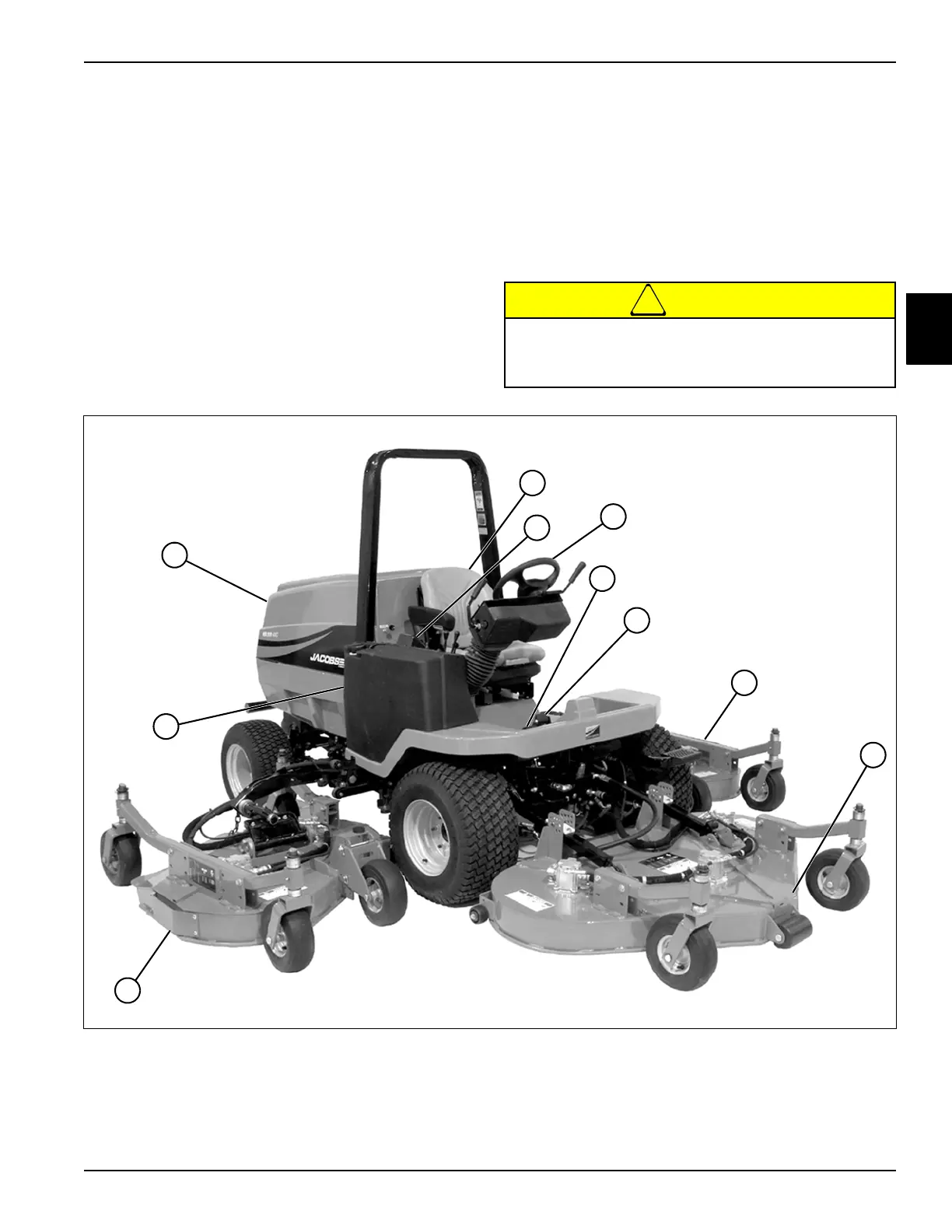

Figure 2-6: Component Location—Right Side
Become familiar with operator controls, machine
components, and correct operating procedures
before beginning repair procedures.
1 Seat 6 Left Cutting Unit
2 Control Panel 7 Center Cutting Unit
3 Steering Wheel 8 Right Cutting Unit
4 Traction Pedal 9 Fuel Tank
5Brake Pedal 10Hood
TN1767
1
3
2
5
6
7
8
4
9
10
