ELECTRICAL
4203780 First Edition 4-113
4
Fuel Level Sensor
Removal and Installation

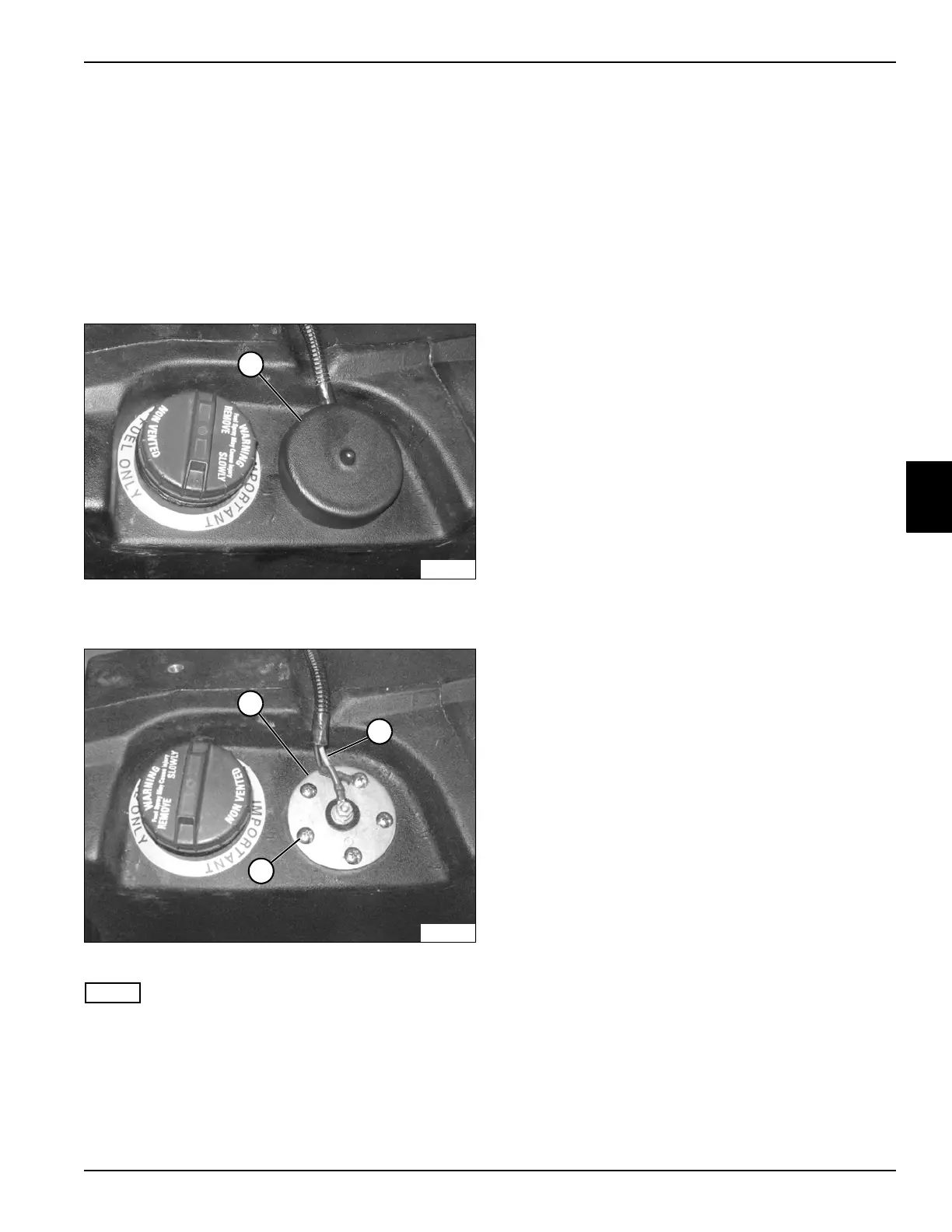

See Figures 4-131 and 4-132.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Drain fuel until level is below fuel level sensor mount
opening.
Figure 4-131
4. Remove fuel level sensor cover (1).
Figure 4-132
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Disconnect fuel level sensor wire harness (3).
6. Remove five screws (4).
7. Remove fuel level sensor (2).
Installation Note
Install the fuel level sensor by reversing the order of
removal.
TN2055
1
TN1833
2
3
4
To Next Page
