ENGINE
4203780 First Edition 3-11
3
Radiator/Hydraulic Oil Cooler
Removal and Installation

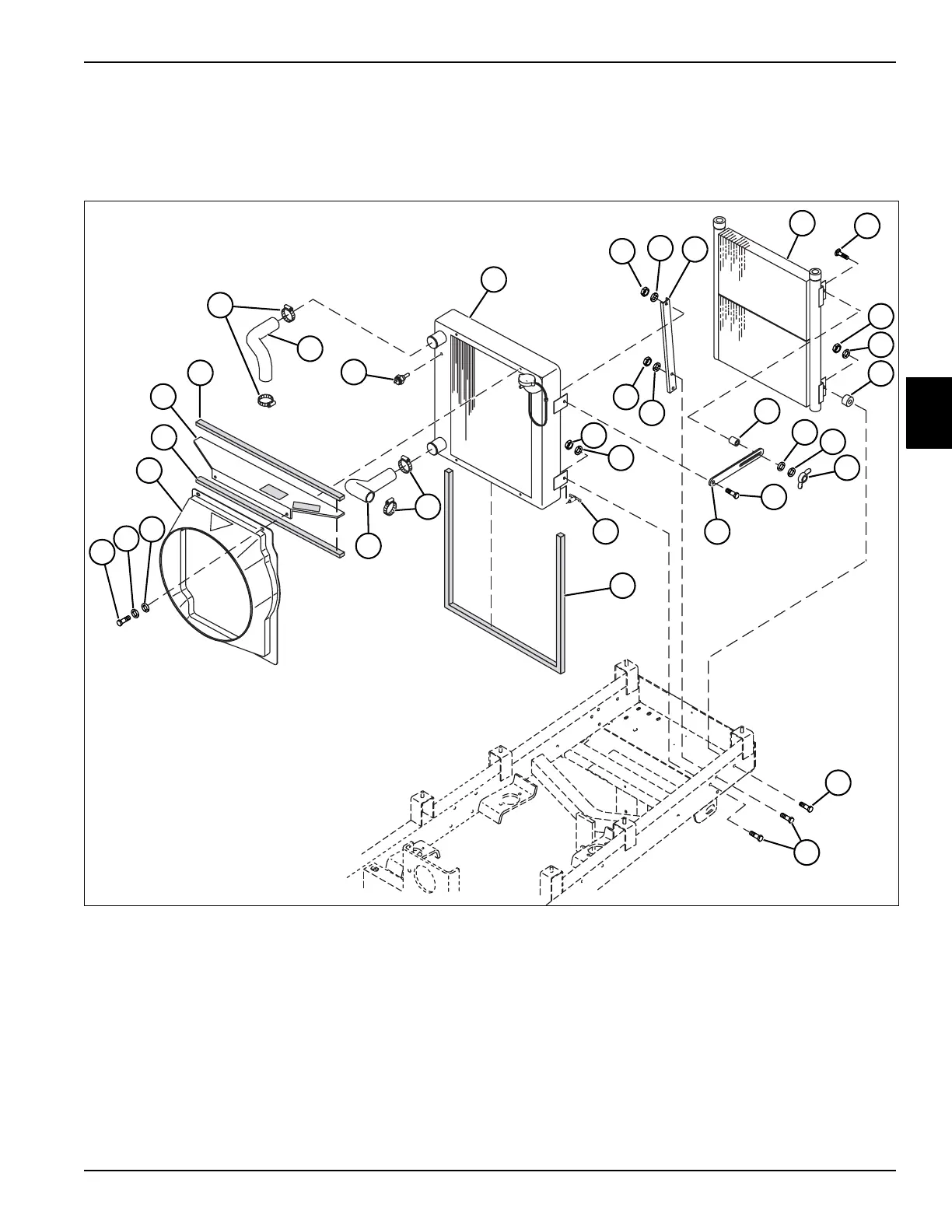

See Figure 3-15.
Figure 3-15
1 Screw (4) 10 Radiator 19 Wing Nut (2)
2 Lock Washer (4) 11 Nut (8) 20 Shoulder Bolt (2)
3 Flat Washer (4) 12 Lock Washer (10) 21 Hydraulic Oil Cooler Pivot Plate
4 Radiator Shroud 13 Radiator Support Bracket (2) 22 Petcock
5 Seal (2) 14 Hydraulic Oil Cooler 23 Weather Strip
6 Base Seal 15 Carriage Bolt (2) 24 Screw (2)
7 Hose Clamp 16 Lock Nut (2) 25 Screw (6)
8 Upper Radiator Hose 17 Flat Washer (4) 26 Lower Radiator Hose
9 Engine Temperature Sensor 18 Hydraulic Oil Cooler Spacer (4)
4
1
2
3
5
6
5
7
8
9
10
8
26
11
12
13
14
15
16
17
18
18
12
11
17
12
19
20
11
12
24
22
23
25
TN1998
21
