4-108 4203780 First Edition
ELECTRICAL
4
Fuel Shutoff Solenoid
Removal and Installation

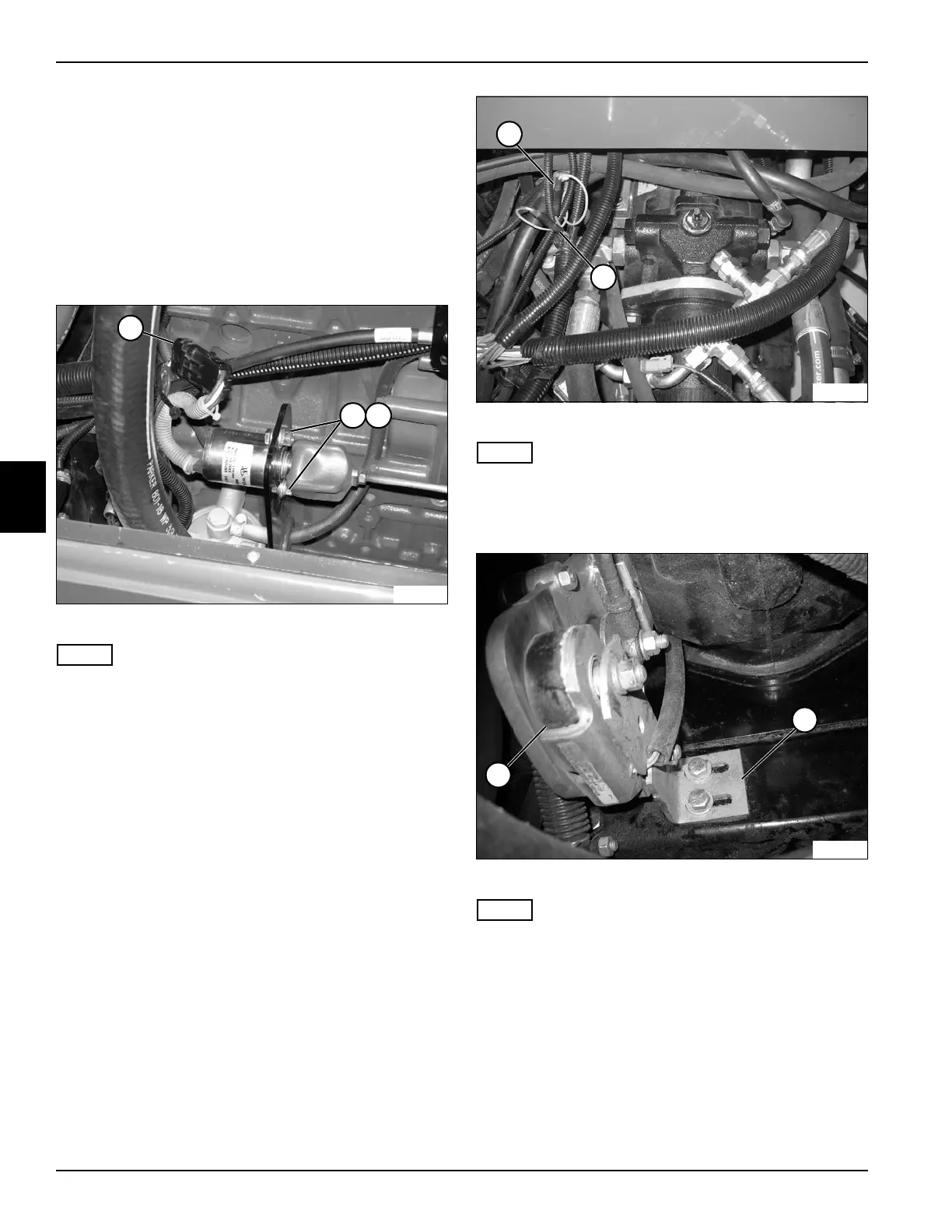

See Figure 4-118.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-118
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect the solenoid electrical connector (1).
5. Remove two nuts (2) and washers (3).
6. Remove solenoid.
Installation Note
Install the fuel shutoff solenoid by reversing the order of
removal.
Cruise Control Magnet
Removal and Installation
See Figures 4-119 through 4-121.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Raise the seat.
Figure 4-119
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connectors (1 and 2).
Figure 4-120
NOTE
Make marks on machine to ensure correct bracket
installation. Correctly installing bracket will position cruise
control magnet.
5. Remove bracket (4) with cruise control magnet (3)
attached.
TN1971
1
2 3
TN2038
2
1
TN2037
4
3
