HYDROSTATIC POWER TRAIN
4203780 First Edition 5-5
5
Component Location
See Figures 5-2 and 5-3.

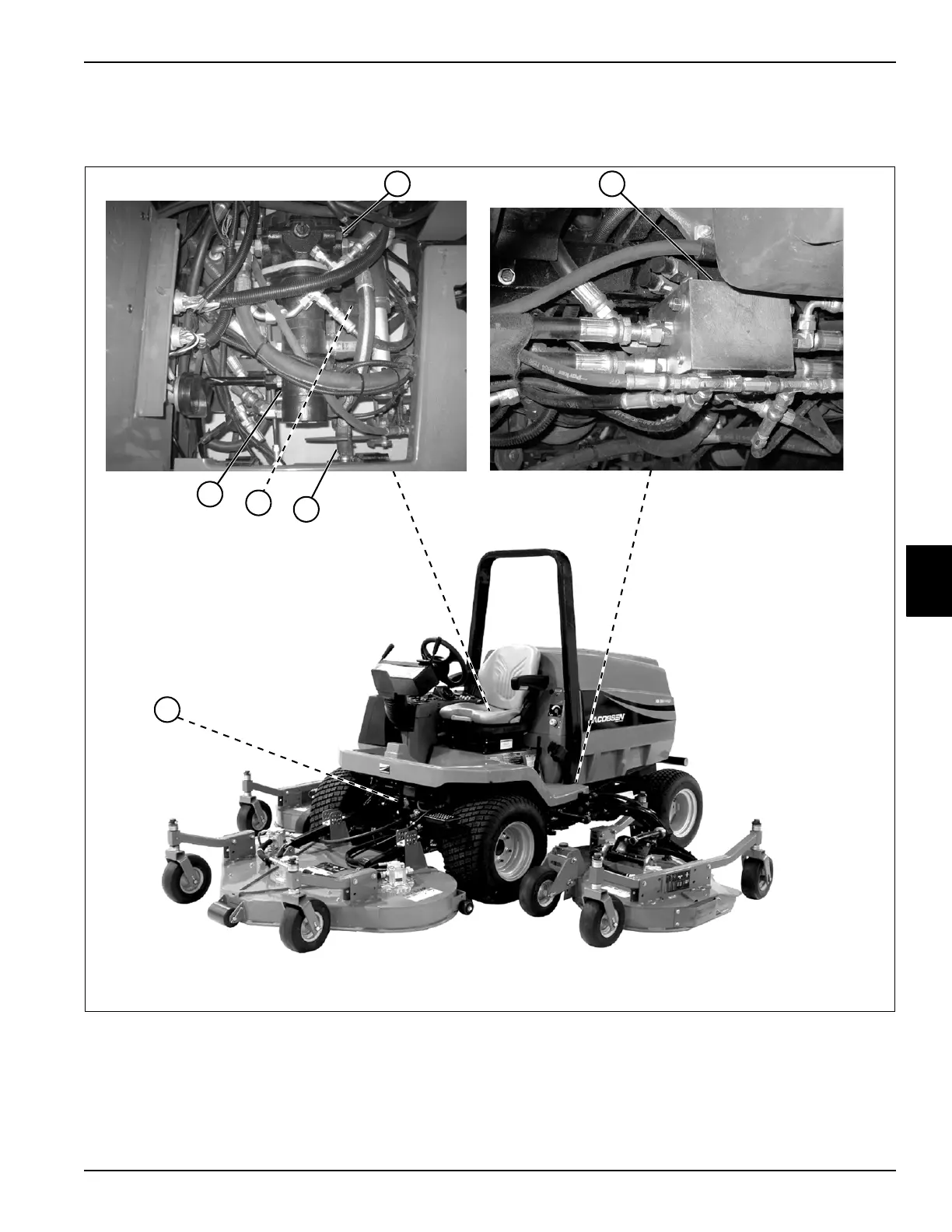

Figure 5-2: Component Location—Left Side
1 Hydrostatic Pump 3 Front Axle Motor 5 4WD Valve
2 Gear Pump 4 Front Axle U-Joint 6 Front Axle
TN1768, TN1970, TN1893
1
3
5
6
4
2
